Model: ASL280D40H7LED50G
Diameter: 280mm
Height: 10.25mm
Angle: 50°
Material: PMMA
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: linear lighting
1. The 1X7 linear lens array is designed with an optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED sizes from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x7 linear lens with ZHAGA standard PCB can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X7 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.

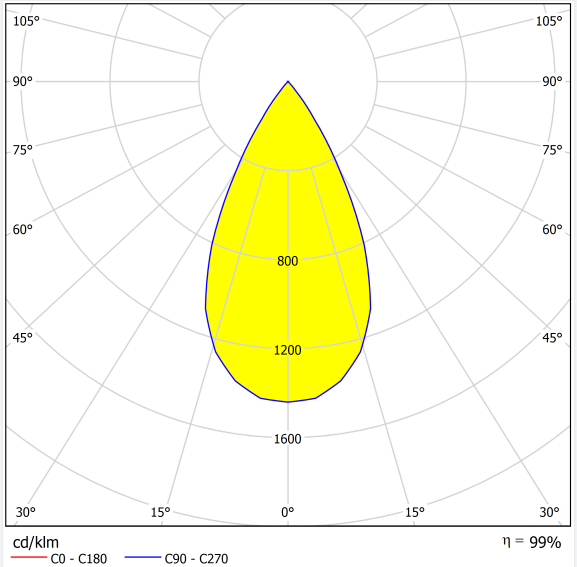

Distribution
Specifications
| Model: | ASL280D40H7LED50G |
| Diameter: | 280mm |
| Height: | 10.25mm |
| Angle: | 50° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Retail Lighting, Office Lighting |
LED Type
JR5005C 6-V E

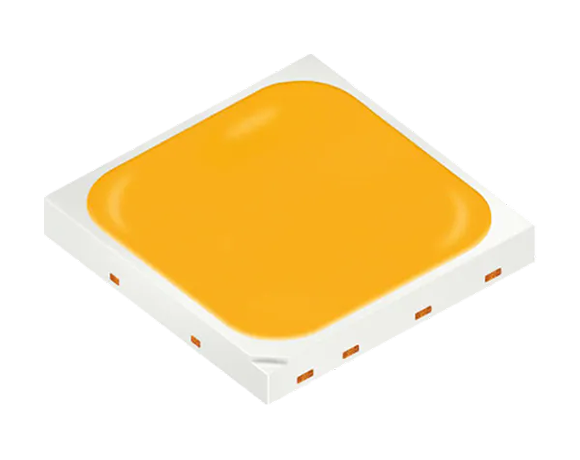

DURIS S 8

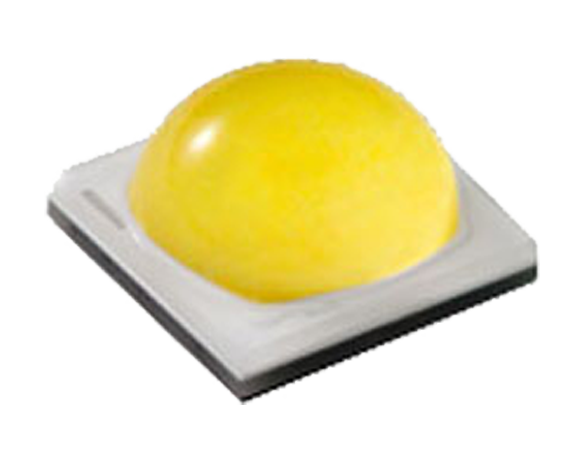

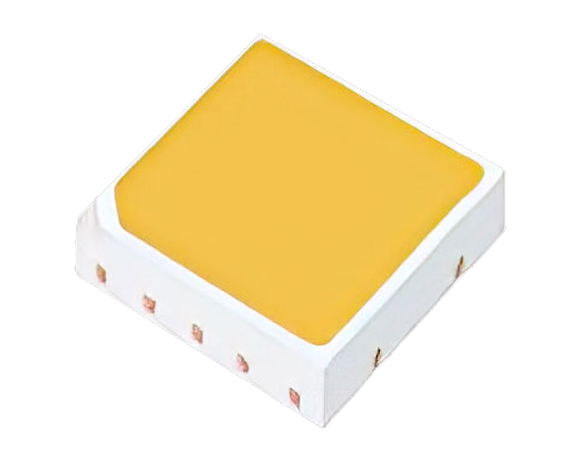

LUXEON 5050 Square
NVAW144AR
NVAW144AM

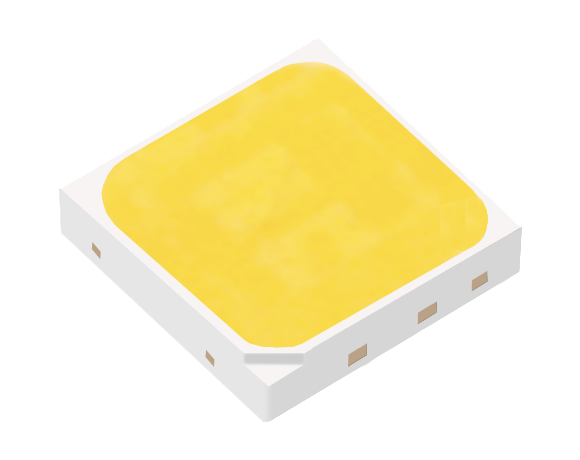

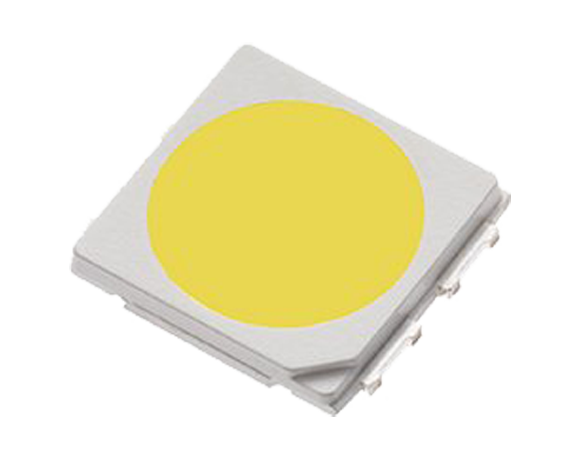

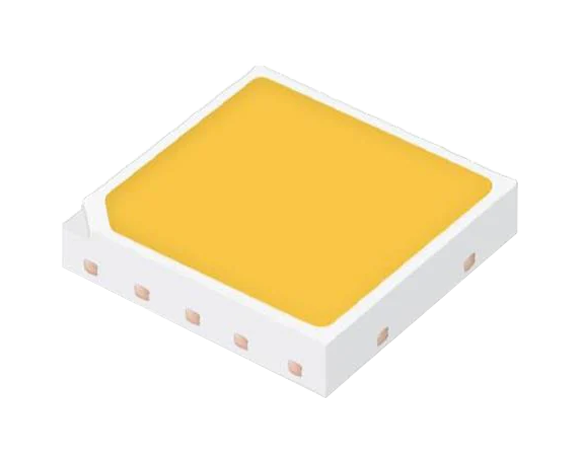

Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 1X7 linear lens array is designed with an optical grill for better UGR and anti-glare control.
For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
The optical design is also compatible with different LED sizes from 2835, 3030 LEDs up to 5630, 5050 LEDs.
The 1x7 linear lens with ZHAGA standard PCB can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
The 1X7 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.

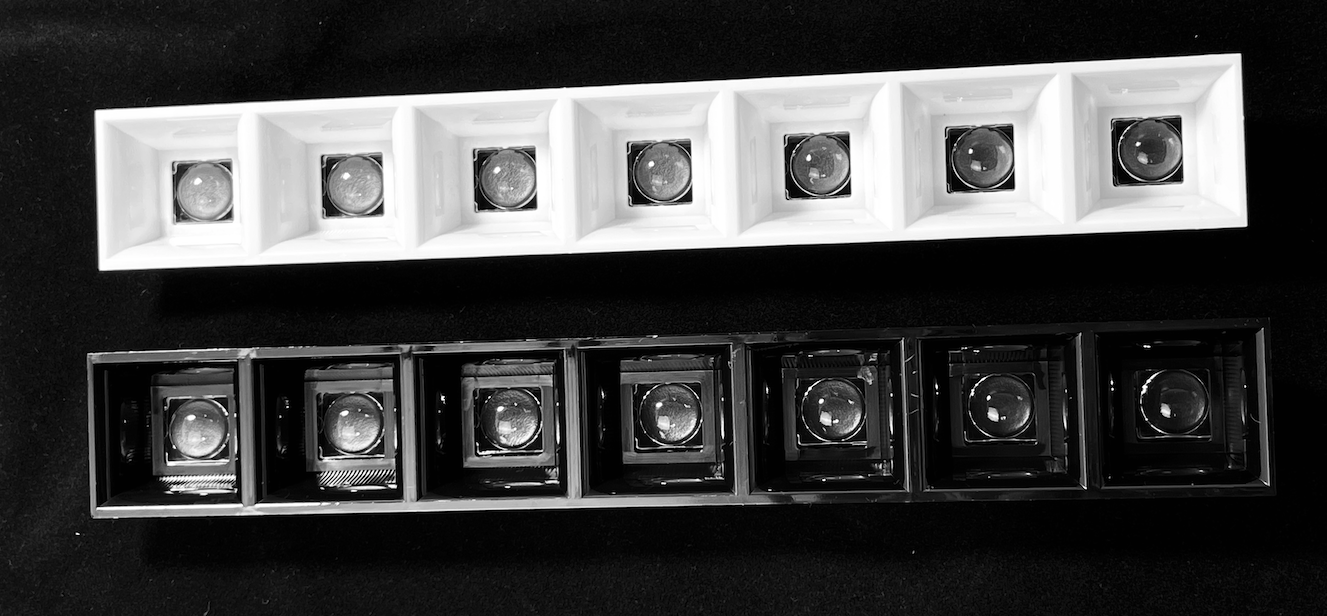

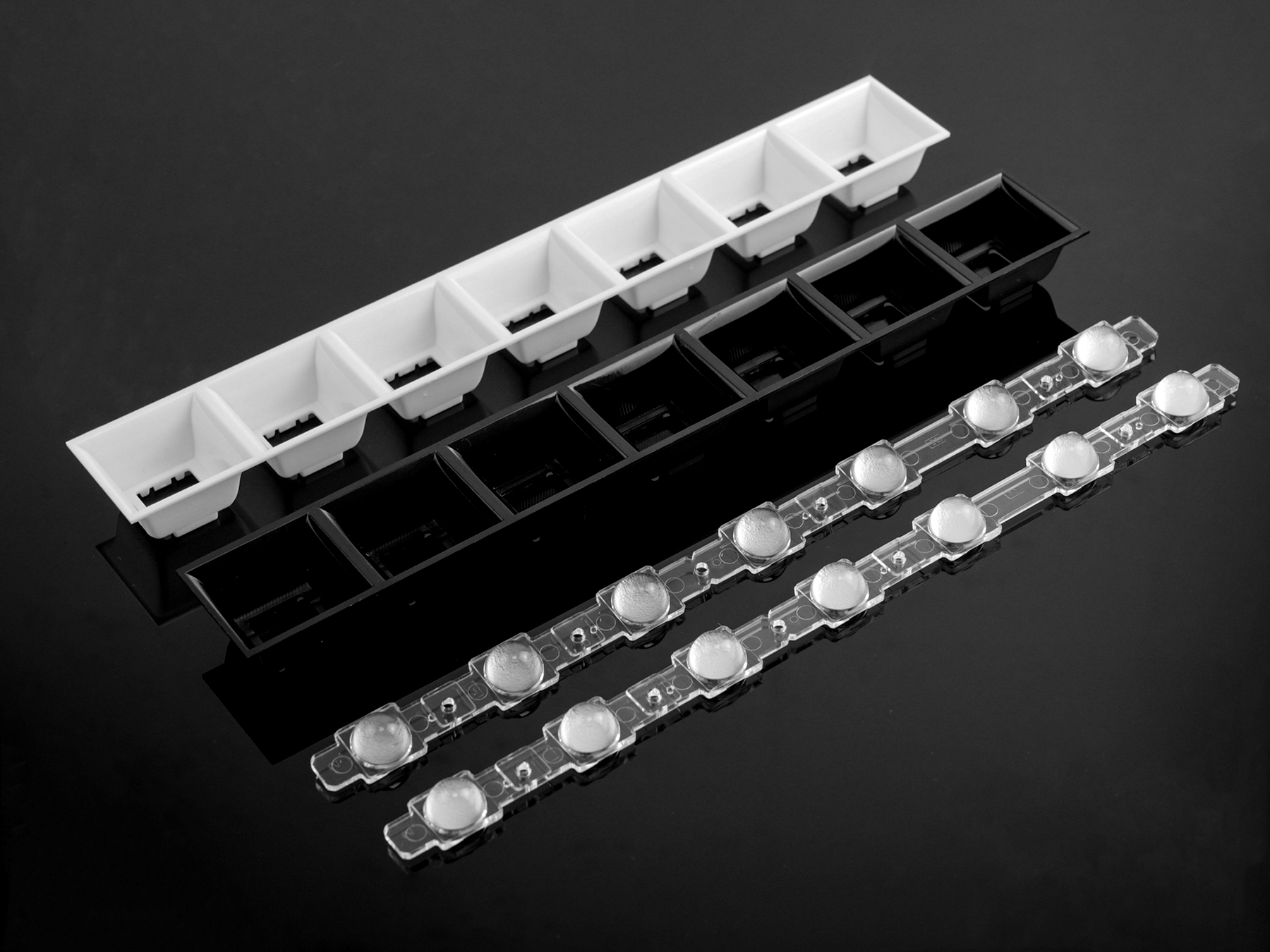

Black/White holder available
ASAHI OPTICS ASL280D40H7LED lens 3D Drawing.stp
ASL280D40H7LED50G-4pcs 2835.ies
