Model: AHCOB75D1545G
Diameter: 75mm
Height: 21mm
Angle: 15x45°
Material: PMMA
Transmittance: 88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light
1, 75mm Diameter COB LED Lens Oval Beam 15x45 Degree.

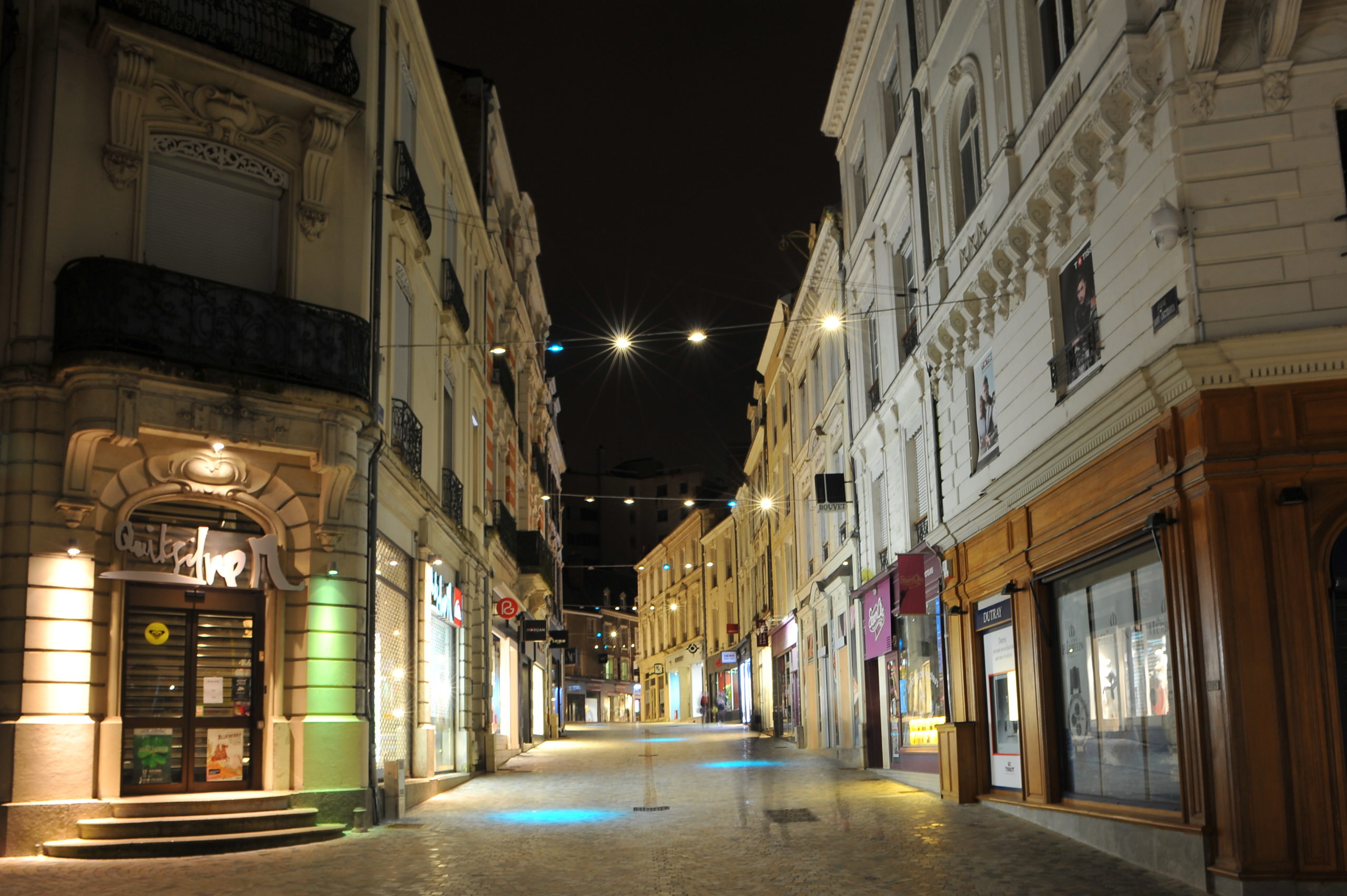

2, COB lenses are employed in outdoor lighting fixtures such as landscape lighting, pathway lighting, and façade lighting. The lenses help control the light distribution and beam angle, ensuring accurate lighting placement, highlighting outdoor features, and creating desired lighting effects.
3, COB lenses help create a uniform light distribution, minimizing hotspots and ensuring even illumination across the target area. This is particularly important in applications such as retail lighting and display lighting, where consistent and uniform lighting is required to highlight products or create visually appealing displays.

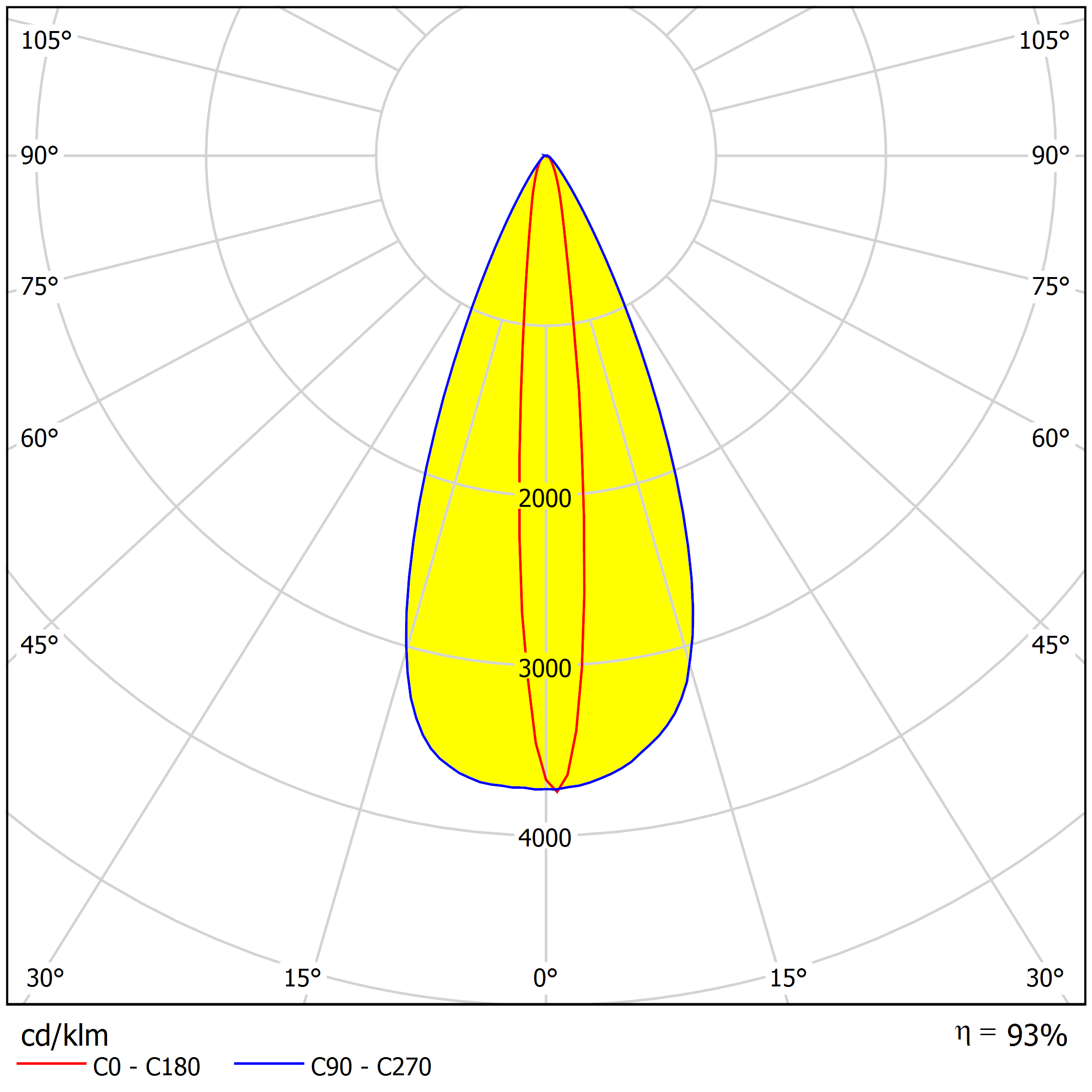

Distribution
Specifications
| Model: | AHCOB75D1545G |
| Diameter: | 75mm |
| Height: | 21mm |
| Angle: | 15x45° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |
LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
