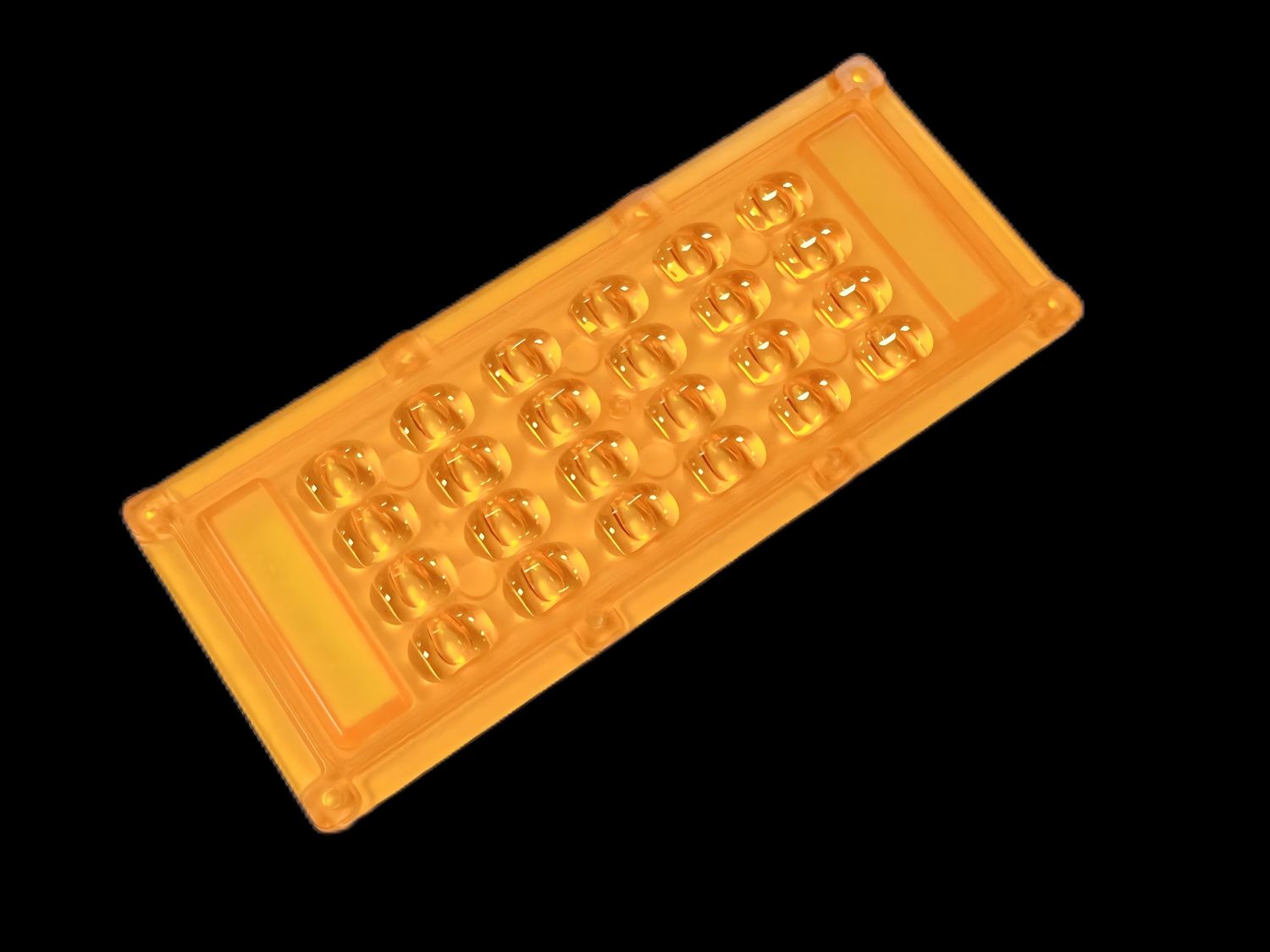

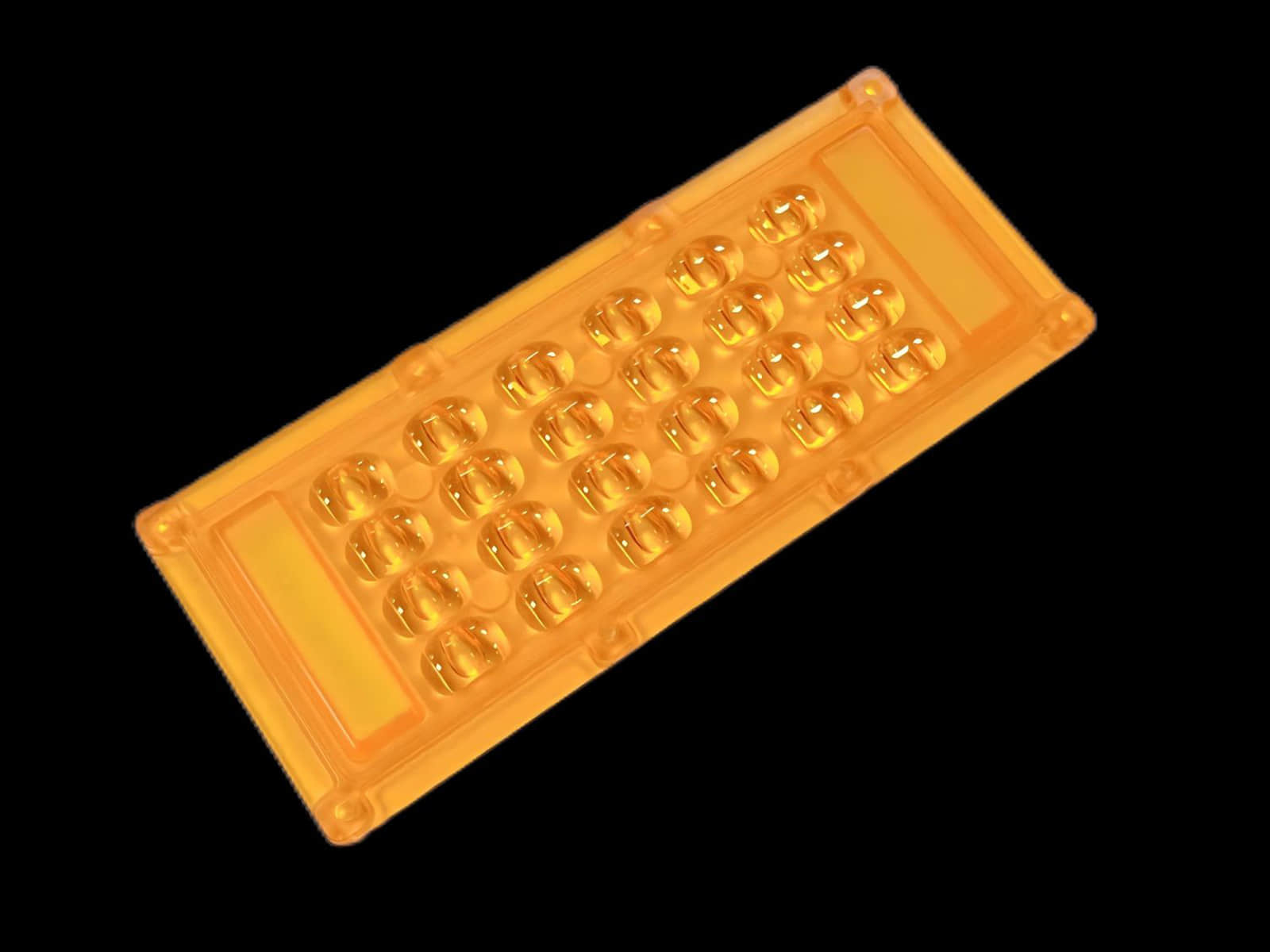

Model: ALST173D24LEDT2M-H
Diameter: 173mm
Height: 9.3mm
Angle: T2M-cutoff
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 4X6 IP lens 24LEDs Horizontal direction

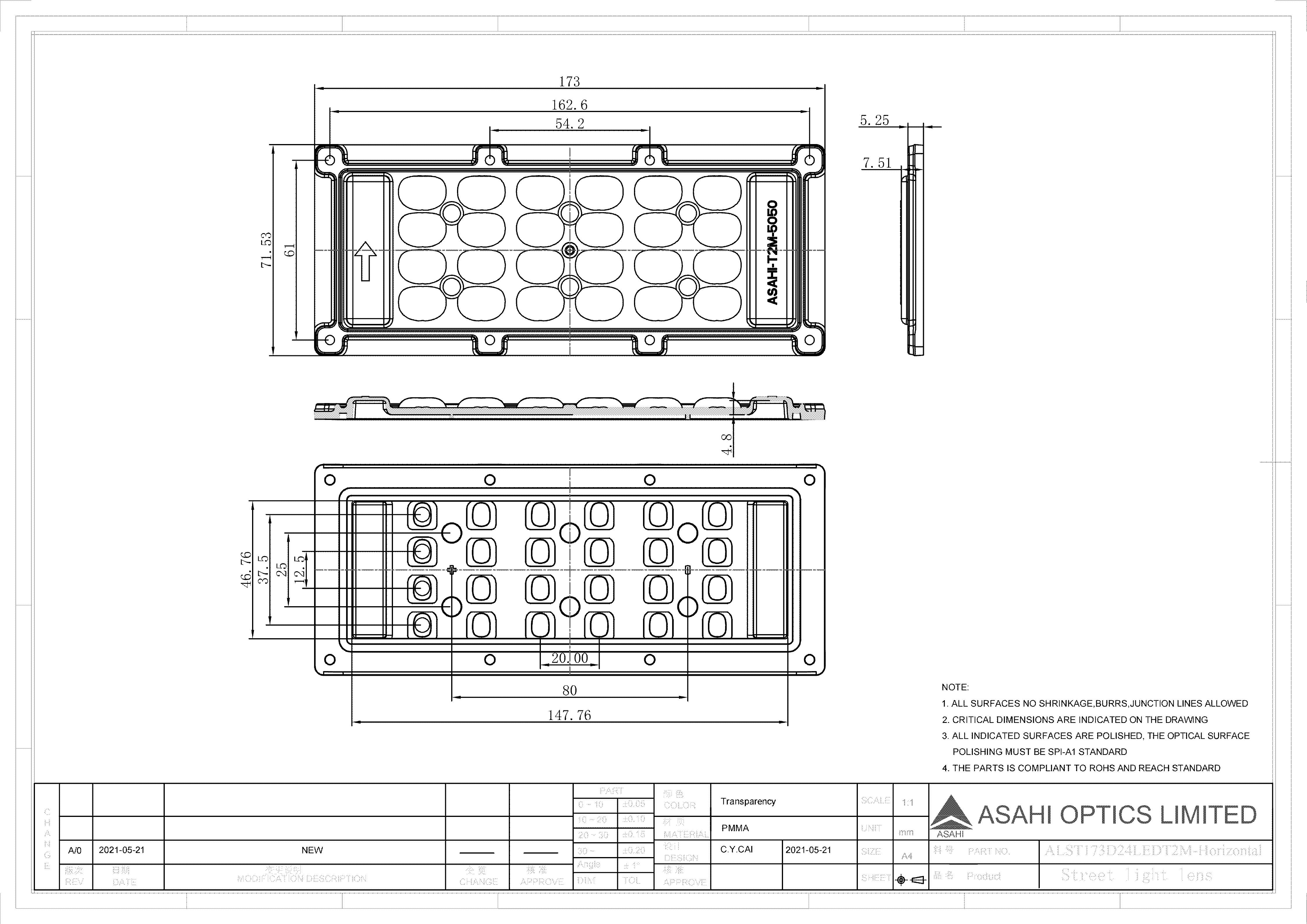

2. It shares the same profile 173mm*71.4mm as the 2x6 lens does
3. The beam angle is particularly designed for 5050LED T2M-cutoff for the IMMETRO certification requirement in Brazil.
4. The high efficiency and powerful lumen output to meet customers’ required power.

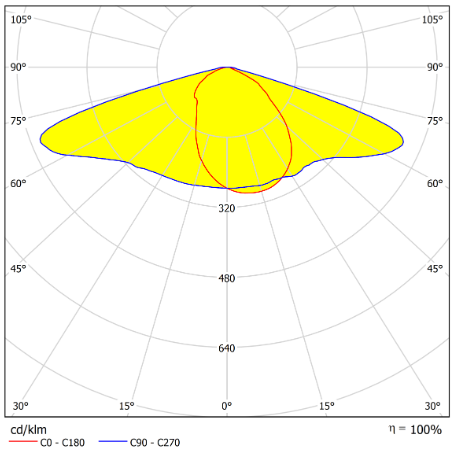

Distribution
Specifications
| Model: | ALST173D24LEDT2M-H |
| Diameter: | 173*71.4mm |
| Height: | 9.3mm |
| Angle: | T2M-cutoff |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
It shares the same profile 173mm*71.4mm as the 2x6 lens does
The beam angle is particularly designed for 5050LED T2M-cutoff for the IMMETRO certification requirement in Brazil.
The high efficiency and powerful lumen output to meet customers’ required power.

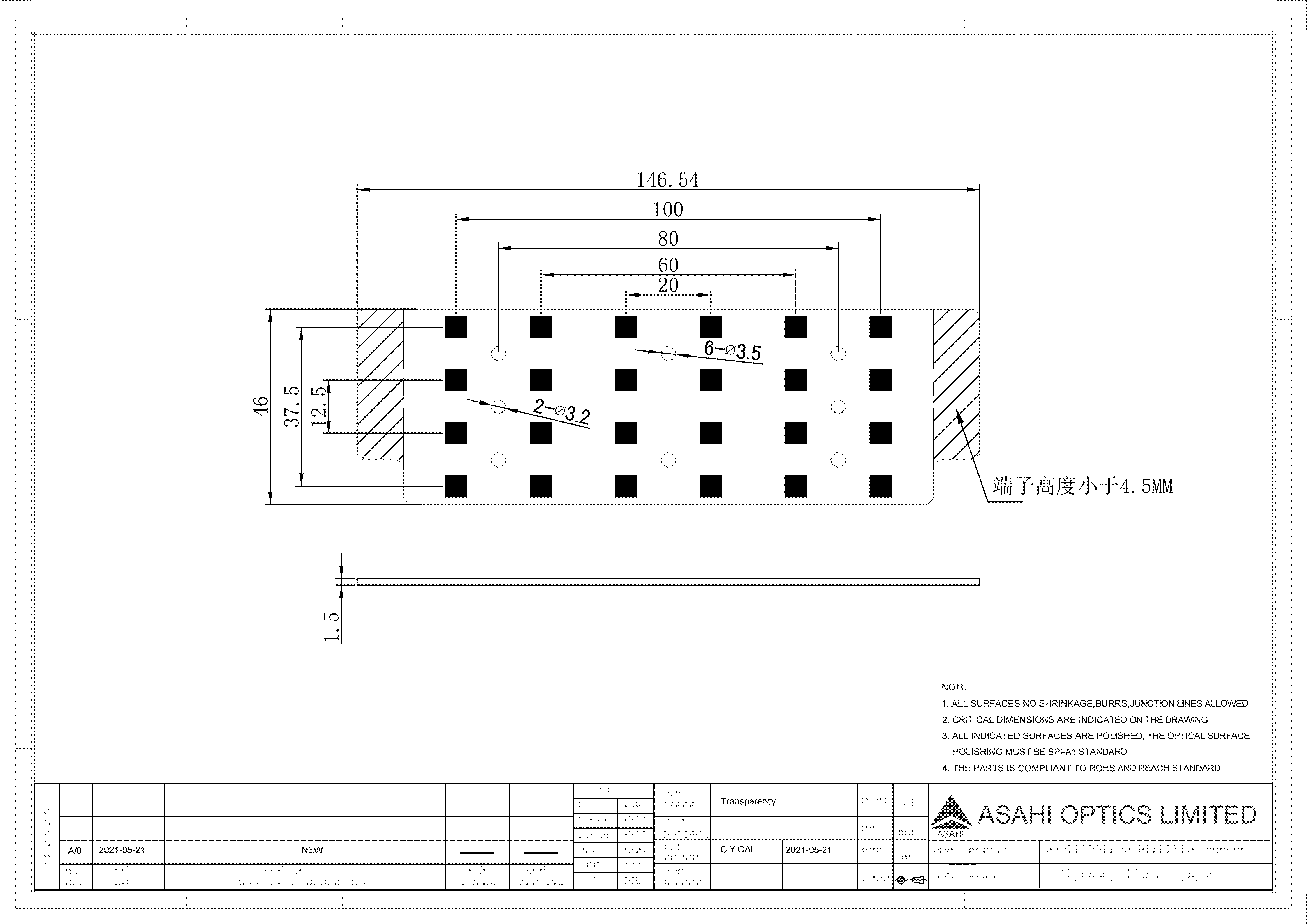

It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
