Model: AHCOB4322D
Diameter: 43mm
Height: 22.2mm
Angle: 24°,38°,60°
Material: PMMA
Transmittance: 93%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

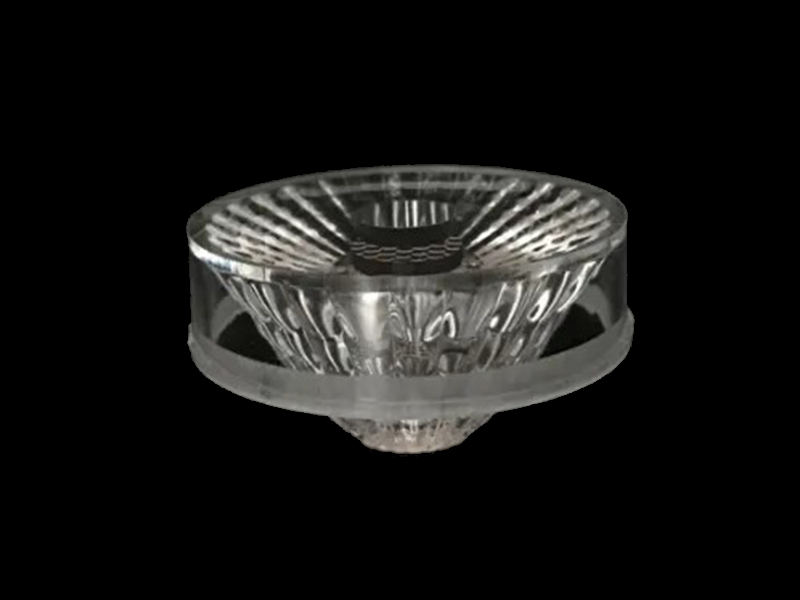

1, 43mm Diameter Cob Down Light Lens PMMA Material
2, COB lens is an optical component specifically designed to control and shape the light output of a COB LED.

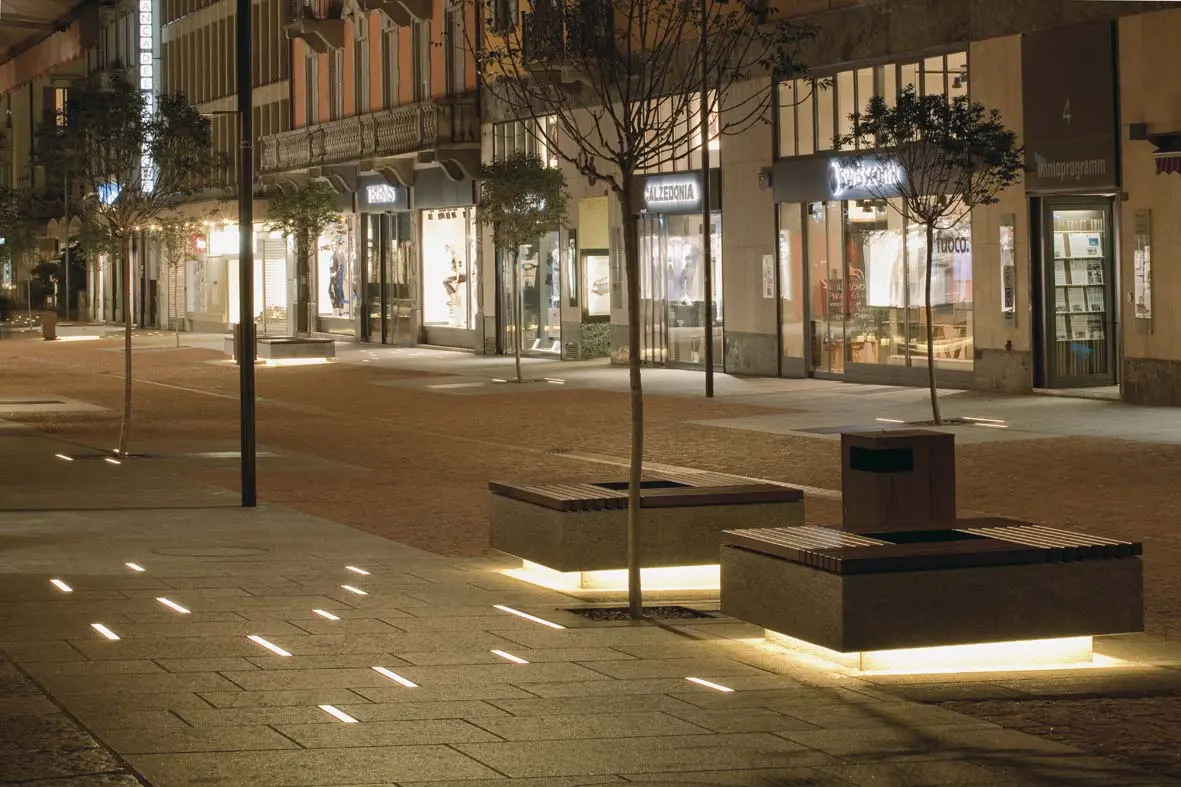

3, COB lenses are employed in architectural lighting fixtures to illuminate and accentuate buildings, monuments, and other architectural elements. They are used in wall washers, floodlights, and spotlights to create dramatic lighting effects, highlight architectural details, and provide uniform illumination.

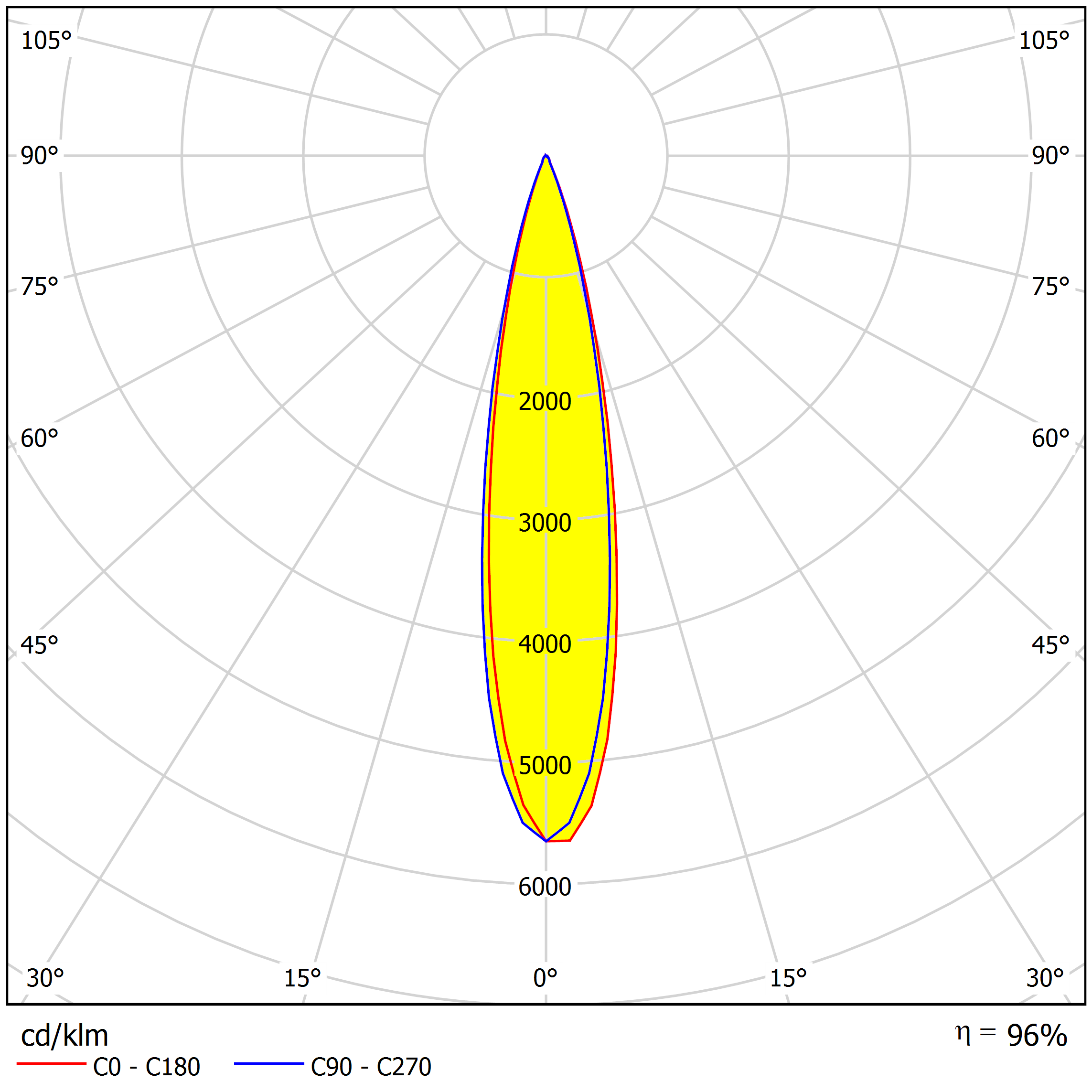

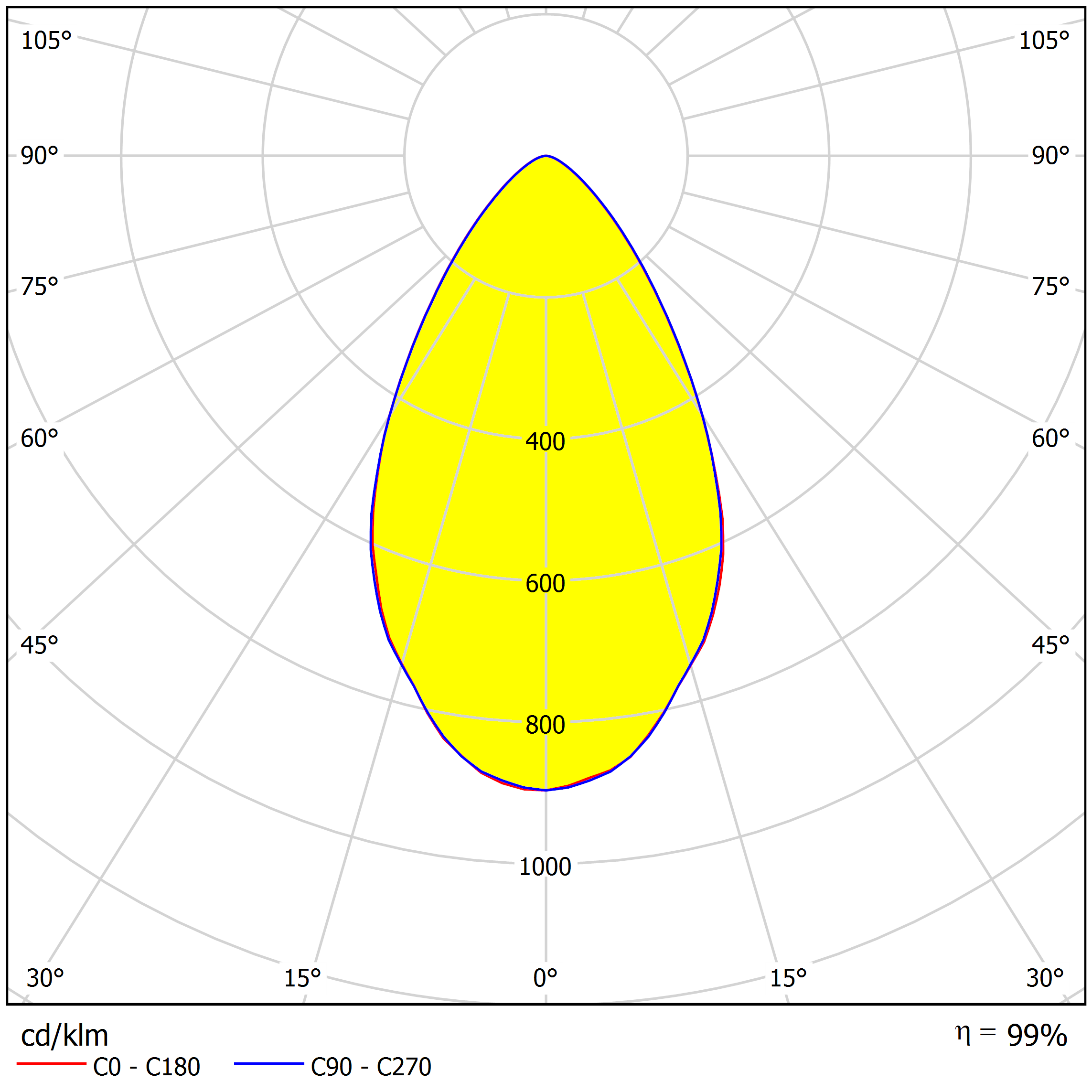

Distribution
Specifications
| Model: | AHCOB4322D |
| Diameter: | 43mm |
| Height: | 22.2mm |
| Angle: | 24°,38°,60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

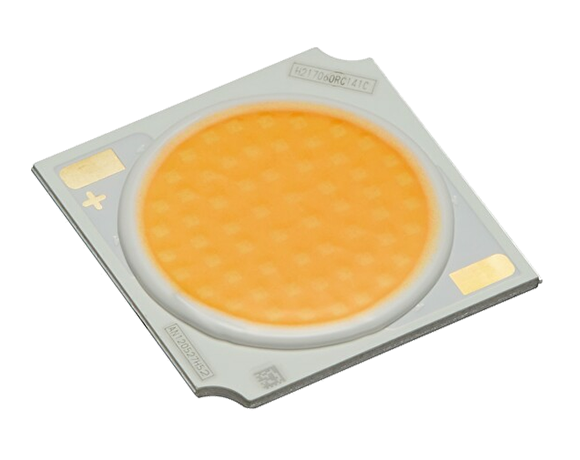

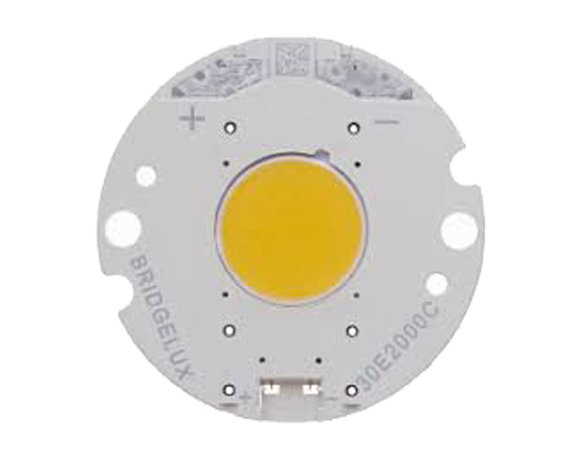

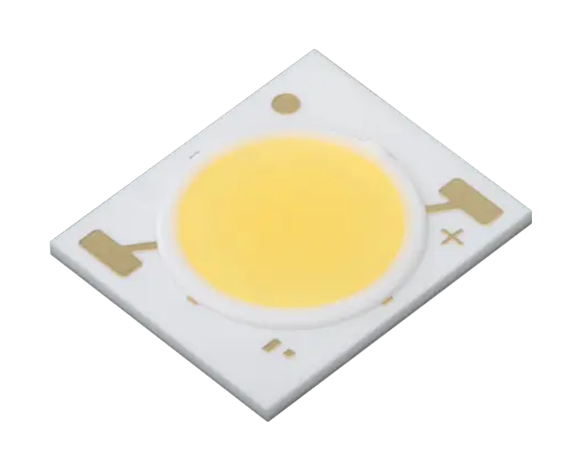

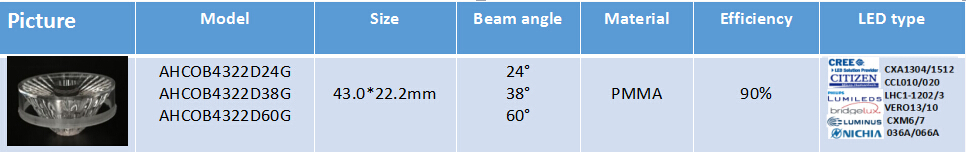

LED Type

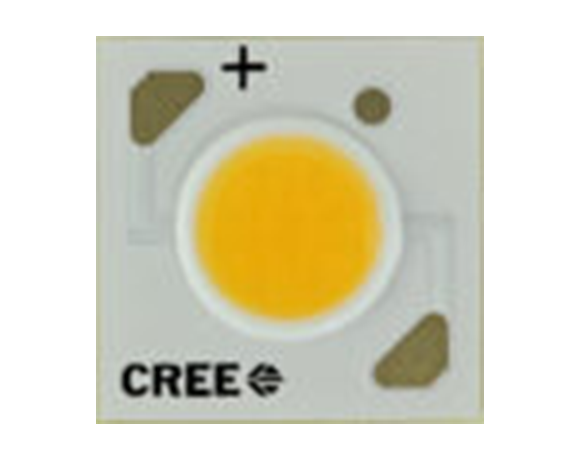

CXA1304/1512
CCL010/020

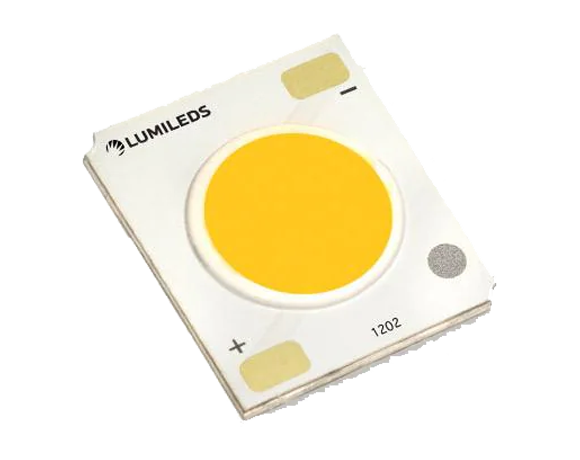

LHC1-1202/3
036A
066A

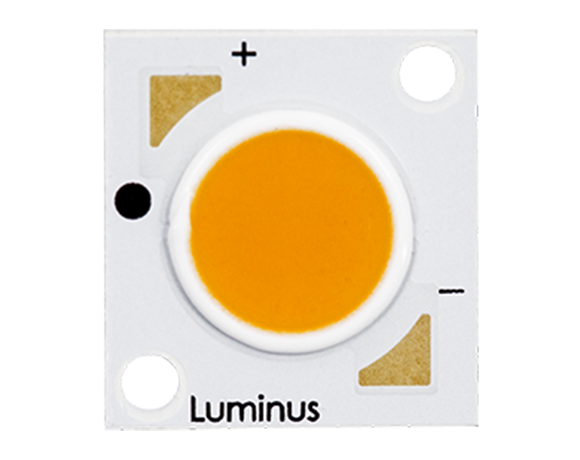

CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
