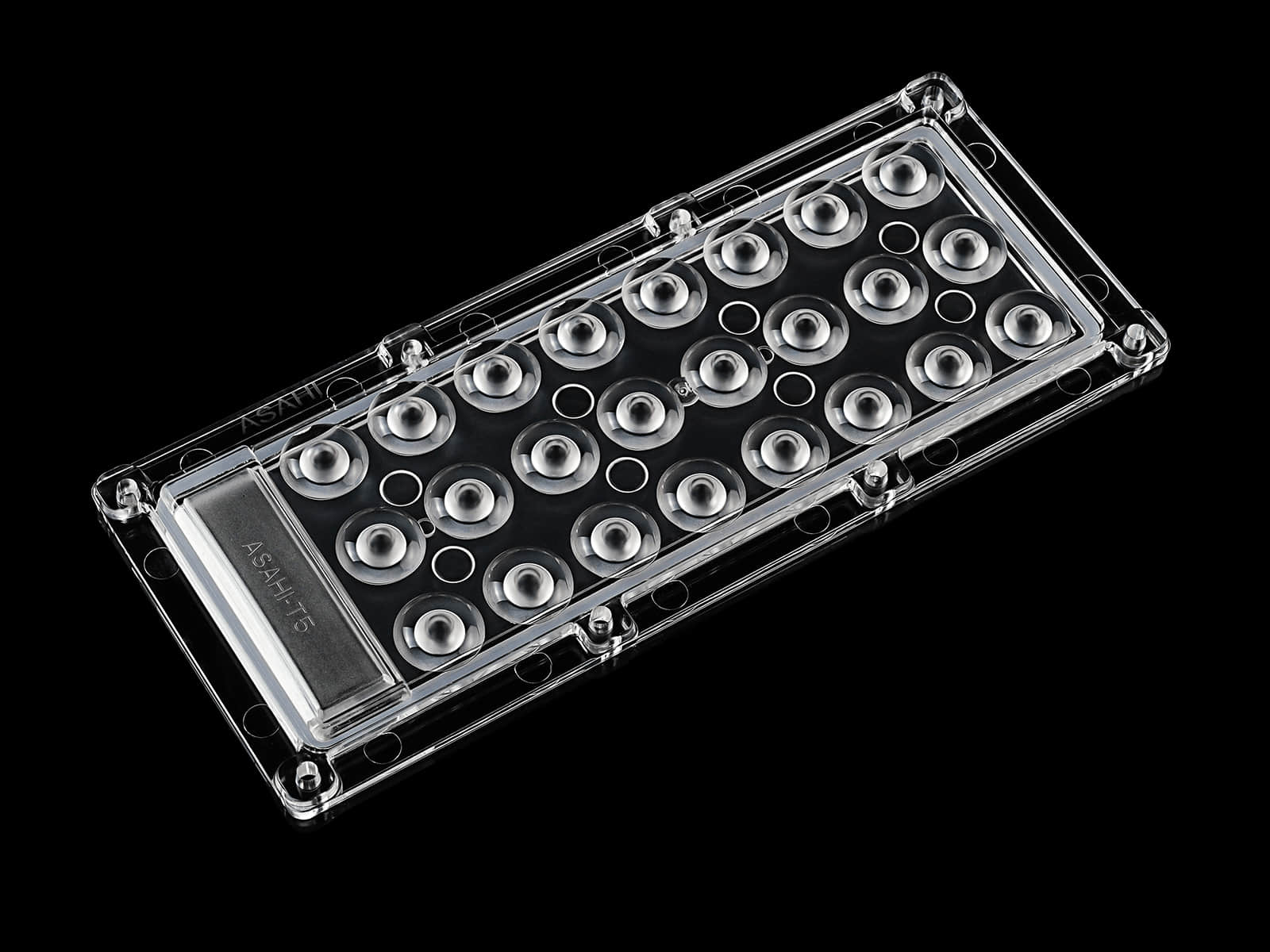

Model: ALST173D24LEDT5
Diameter: 173mm
Height: 9.3mm
Angle: T5
Material: PMMA
Transmittance: >93%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: Car Park lighting, Street lighting,Architecture lighting,High Bay lighting
1. 3x8 IP lens 24LEDs, It shares the same profile 173mm*71.4mm as the 2x6 lens does.

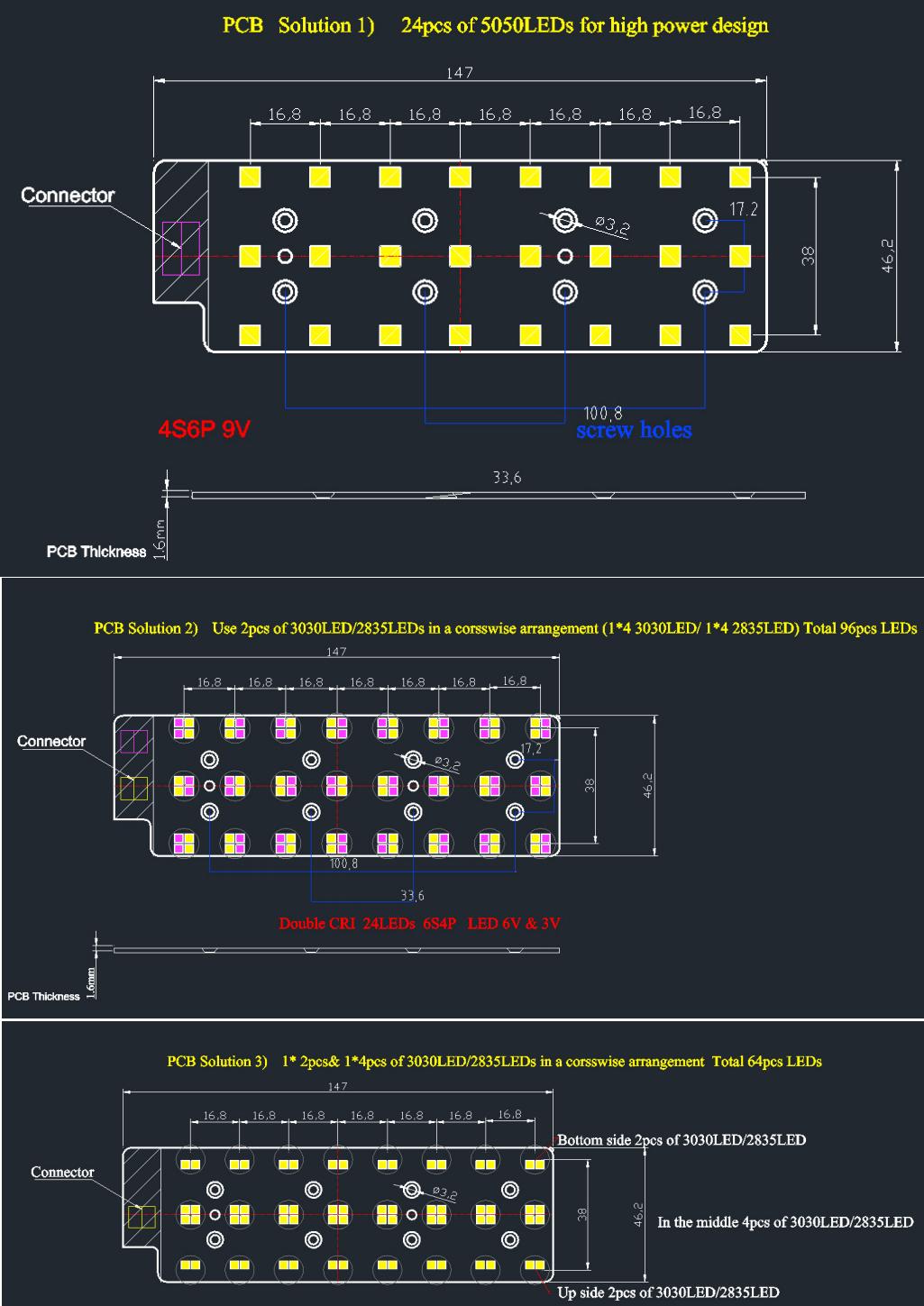

2. It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
3. The Type V beam provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.

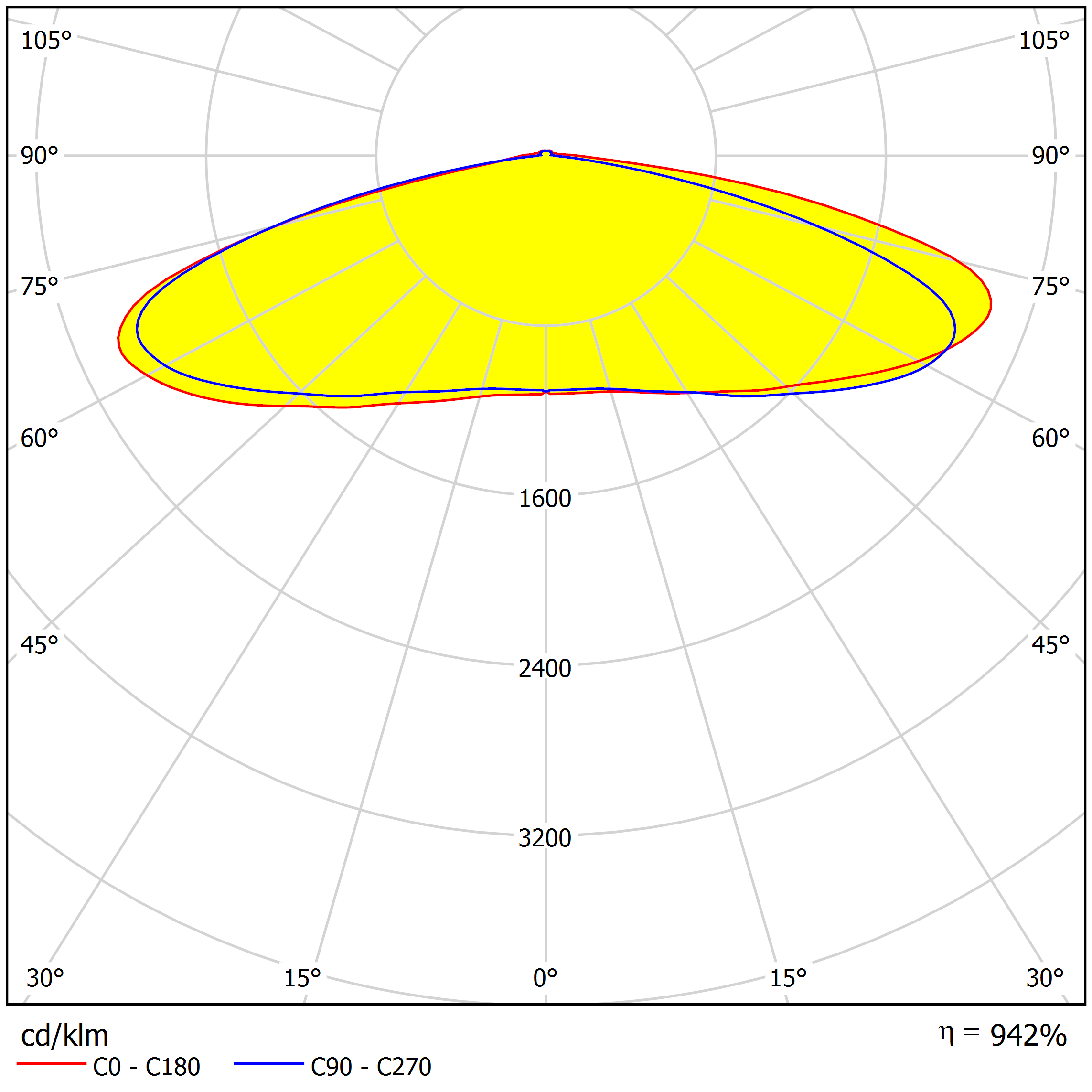

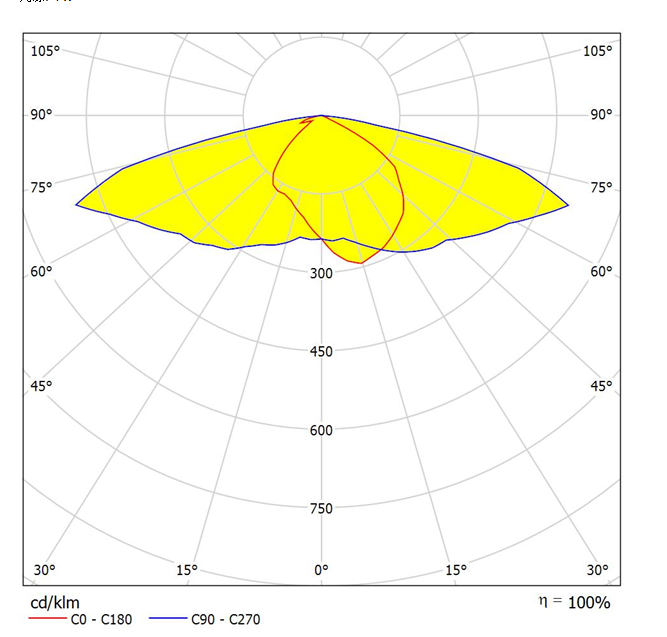

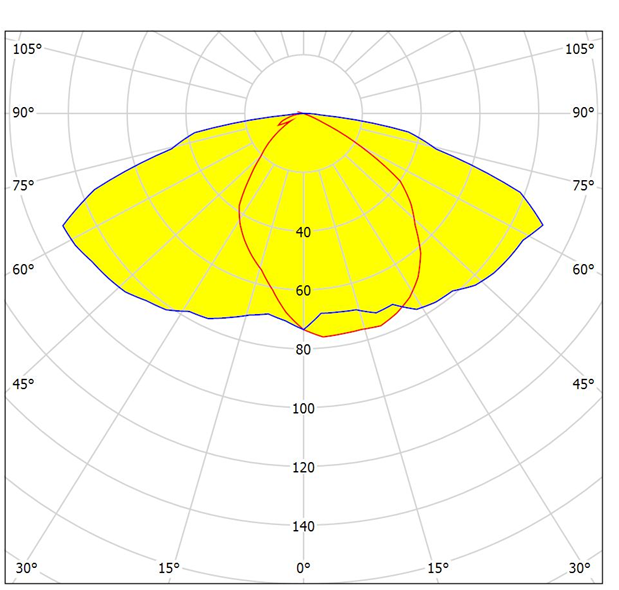

Distribution
Specifications
| Model: | ALST173D24LEDT5 |
| Diameter: | 173x71.4mm |
| Height: | 9.8mm |
| Angle: | TypeV |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Street lighting,Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
It shares the same profile 173mmx71.4mm as the 2x6 lens does,
which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90°
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED

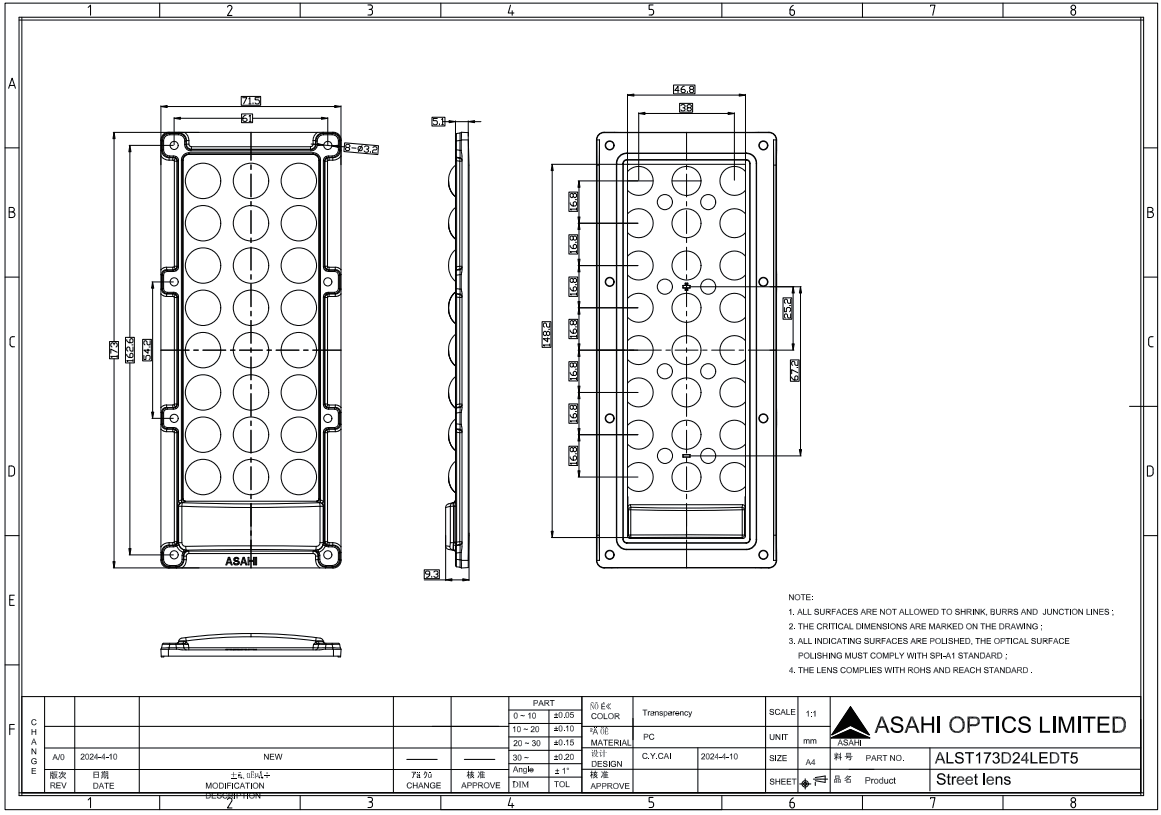

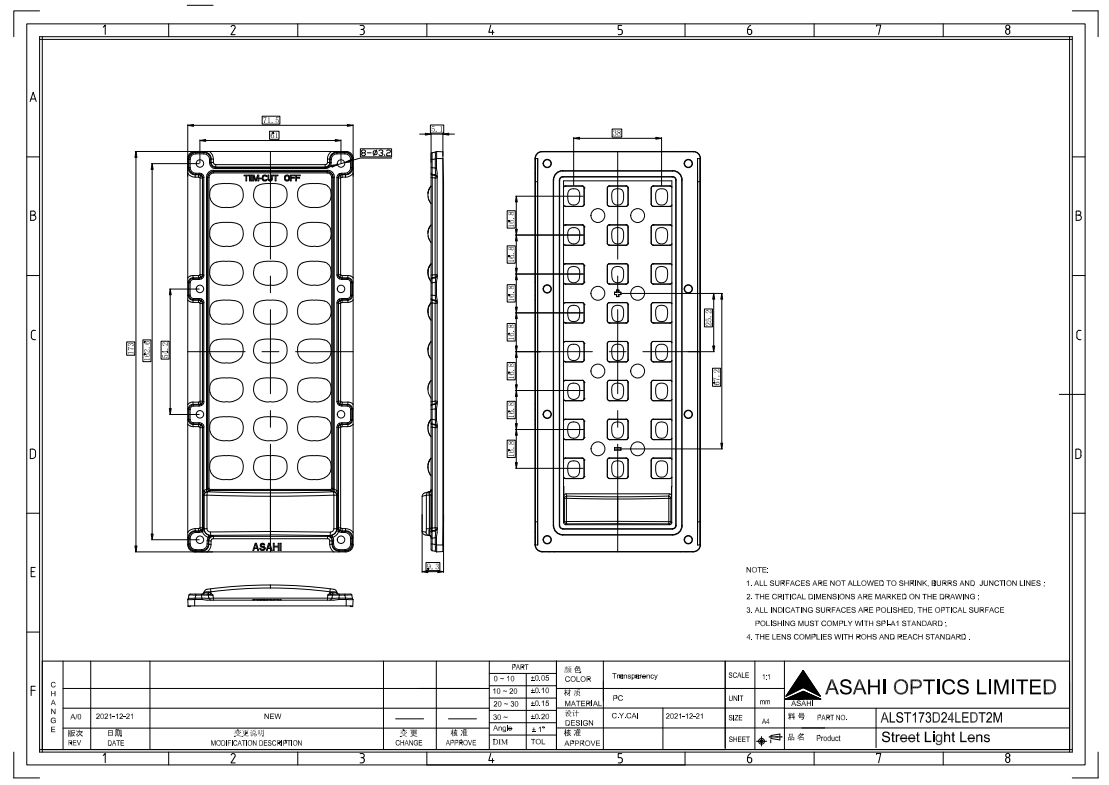

Asahi Optics ALST173D24LEDT5 Drawing.dwg
Asahi Optics ALST173D24LEDT5 Drawing.PDF
Asahi Optics ALST173D24LEDT5.IES
Asahi Optics ALST173D24LEDT5 Test Report.pdf
