Model: AHCOB3615D35G/38G/60G
Size: 36mm
Height: 15.7mm
Angle: 35°; 38° ;60°
Material: PMMA
Transmittance: 93%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light
1, 36mm 15 Degree Cob Lens For Down Light
2, COB lenses are widely used in indoor lighting applications such as downlights, track lights, recessed lights, and pendant lights. The lenses help control the beam angle and light distribution, ensuring efficient and uniform illumination in residential, commercial, and hospitality spaces.
3, COB lenses are incorporated into various indoor and outdoor lighting fixtures, including downlights, spotlights, floodlights, and wall washers. These lenses help shape the light emitted by the COB LEDs, ensuring efficient light distribution and achieving desired lighting effects for different applications.

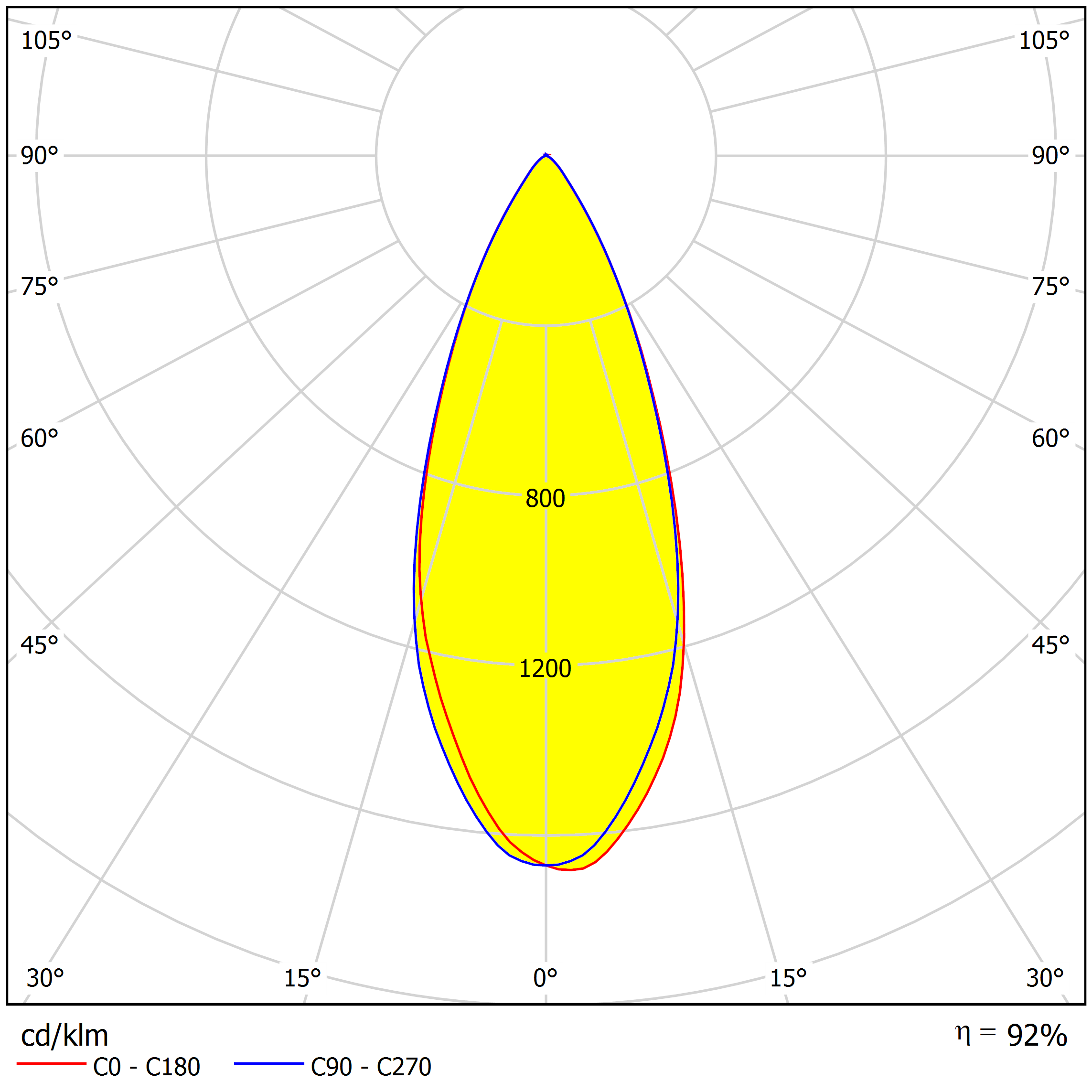

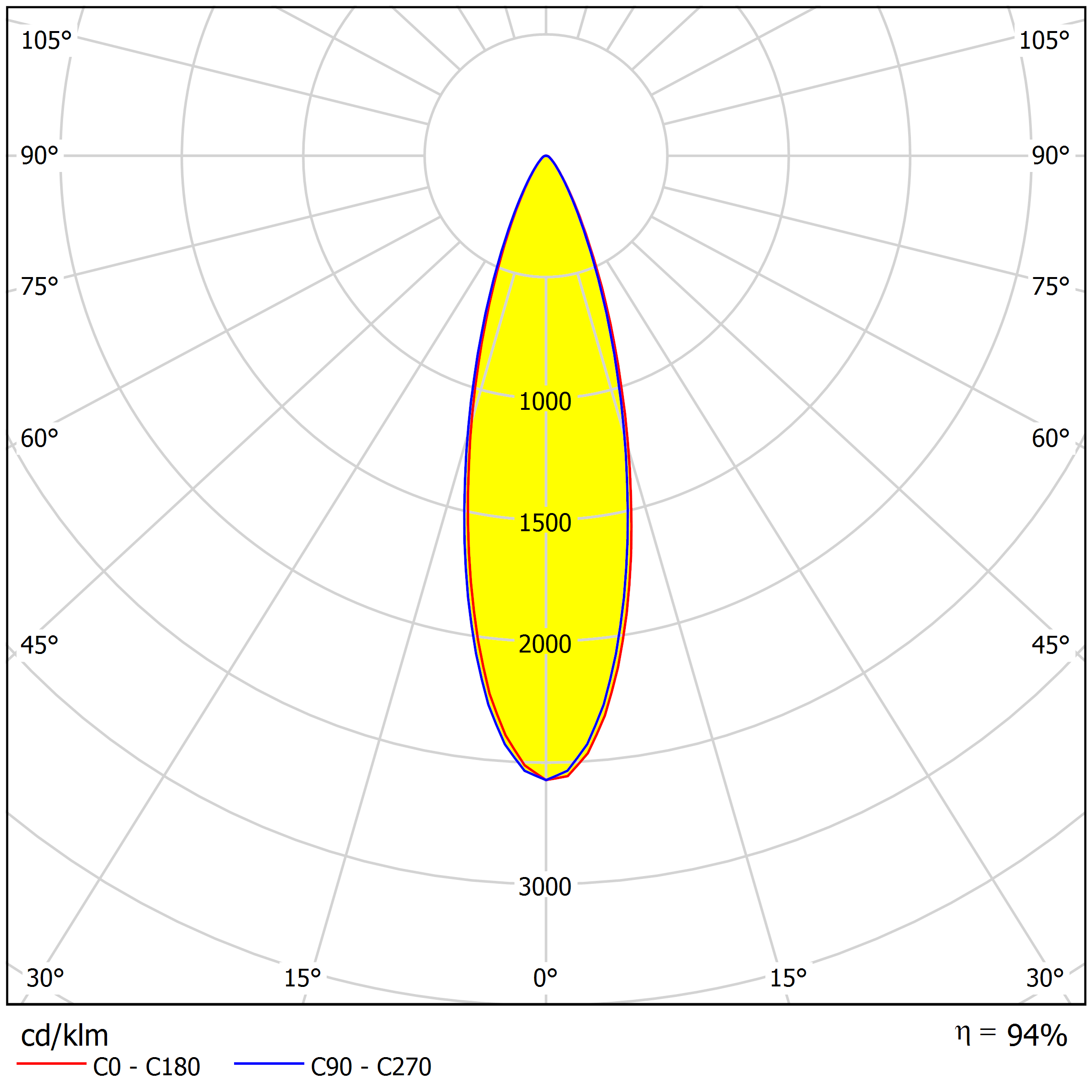

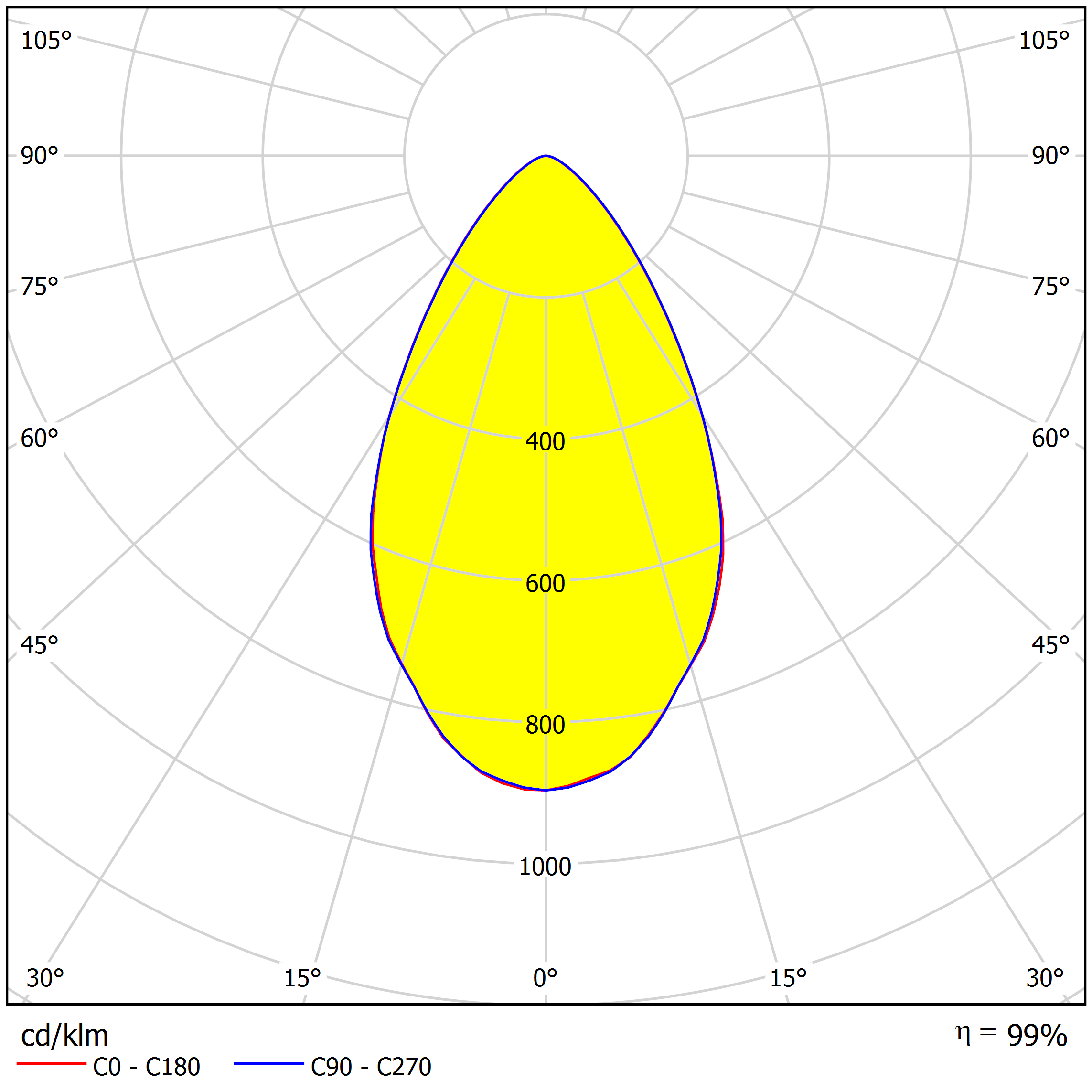

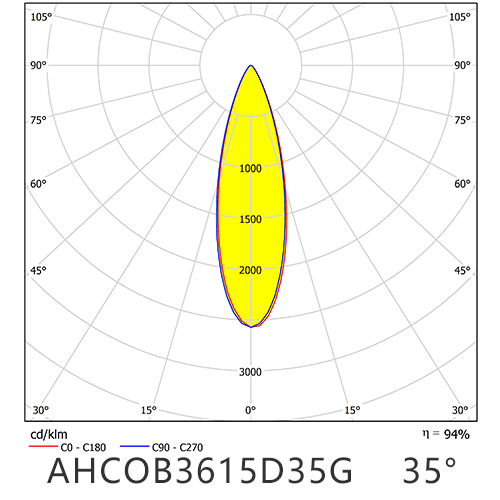

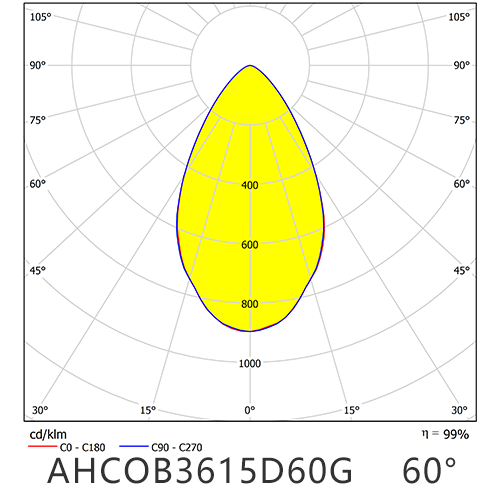

Distribution
Specifications
| Model: | AHCOB3615D35G/38G/60G |
| Diameter: | 36.0mm |
| Height: | 15.7mm |
| Angle: | 35°,38°,60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting,Spot Light,Down Light |
LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
