Model: AYS35D18G
Diameter: 35mm
Height: 16.35mm
Angle: 18°
Material: PMMA
Transmittance: 90%
LED Type: XML
Lighting Applications: PAR lighting,Spot Light,Down Light
1, 35mm Optical Lens design For PAR Lighting 18 Degree
2, A narrow lens can create a more focused, spotlight-like beam
3, The par lighting lens helps to gather and direct the light emitted by the LEDs, maximizing the efficiency and output of the fixture.
Distribution

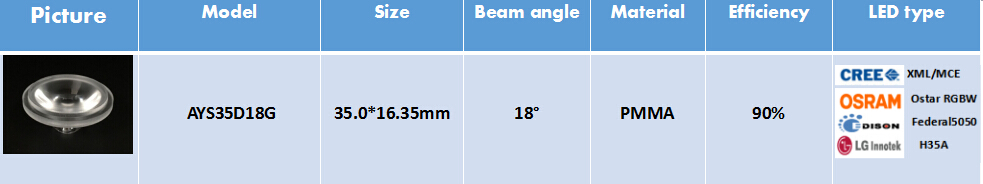

Specifications
| Model: | AYS35D18G |
| Diameter: | 35mm |
| Height: | 16.35mm |
| Angle: | 18° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | XML |
| Lighting applications | PAR lighting,Spot Light,Down Light |
LED Type
XPE
XML
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
