Model: ASL286D61H33LED
Diameter: 286mm
Height: 61mm
Angle: 30°，60°，90°，120°， A20°，DA25°，DA30°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030/5050LED
Lighting Applications: Retail lighting, Shelf Lighting
1. The 3-row linear lens is engineered to provide uniform and efficient light distribution. With its unique design, it effectively spreads and directs light across a wide area, minimizing dark spots or uneven illumination. This characteristic makes it suitable for applications that require consistent and well-distributed lighting.
2. This 33LED linear lens offers precise beam control, allowing for accurate light direction and focusing. It enables designers to shape the light beam according to specific requirements, whether it's achieving a narrow spotlight or a wider floodlight effect. This versatility makes it ideal for applications that demand controlled and directed lighting.
3. The 33LED linear lens incorporates anti-glare features to minimize discomfort caused by excessive brightness or glare. It effectively diffuses light and reduces the direct line of sight to the light source, resulting in enhanced visual comfort. This characteristic is especially valuable in indoor lighting applications where glare can be a significant concern.

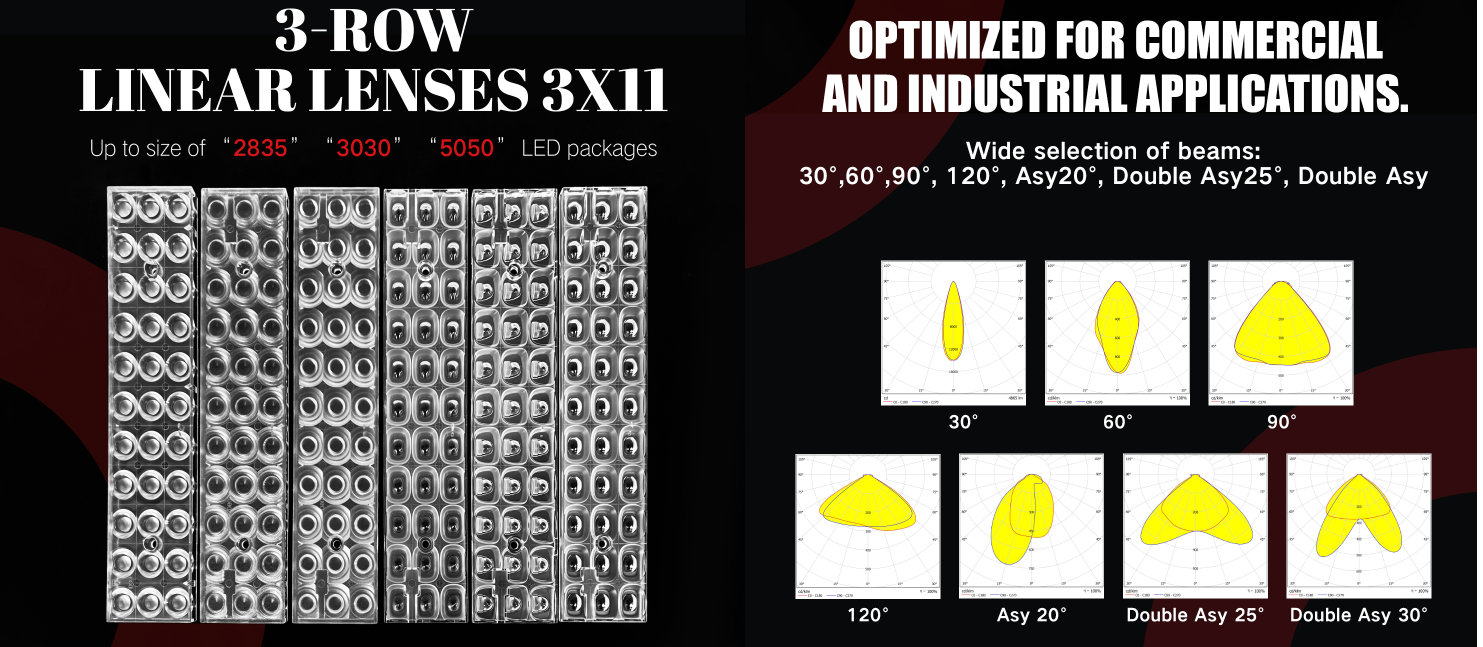

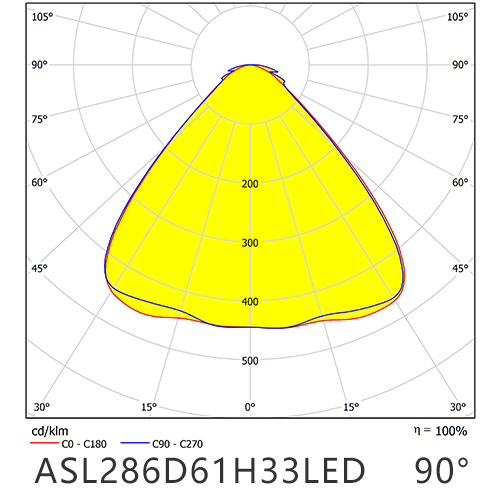

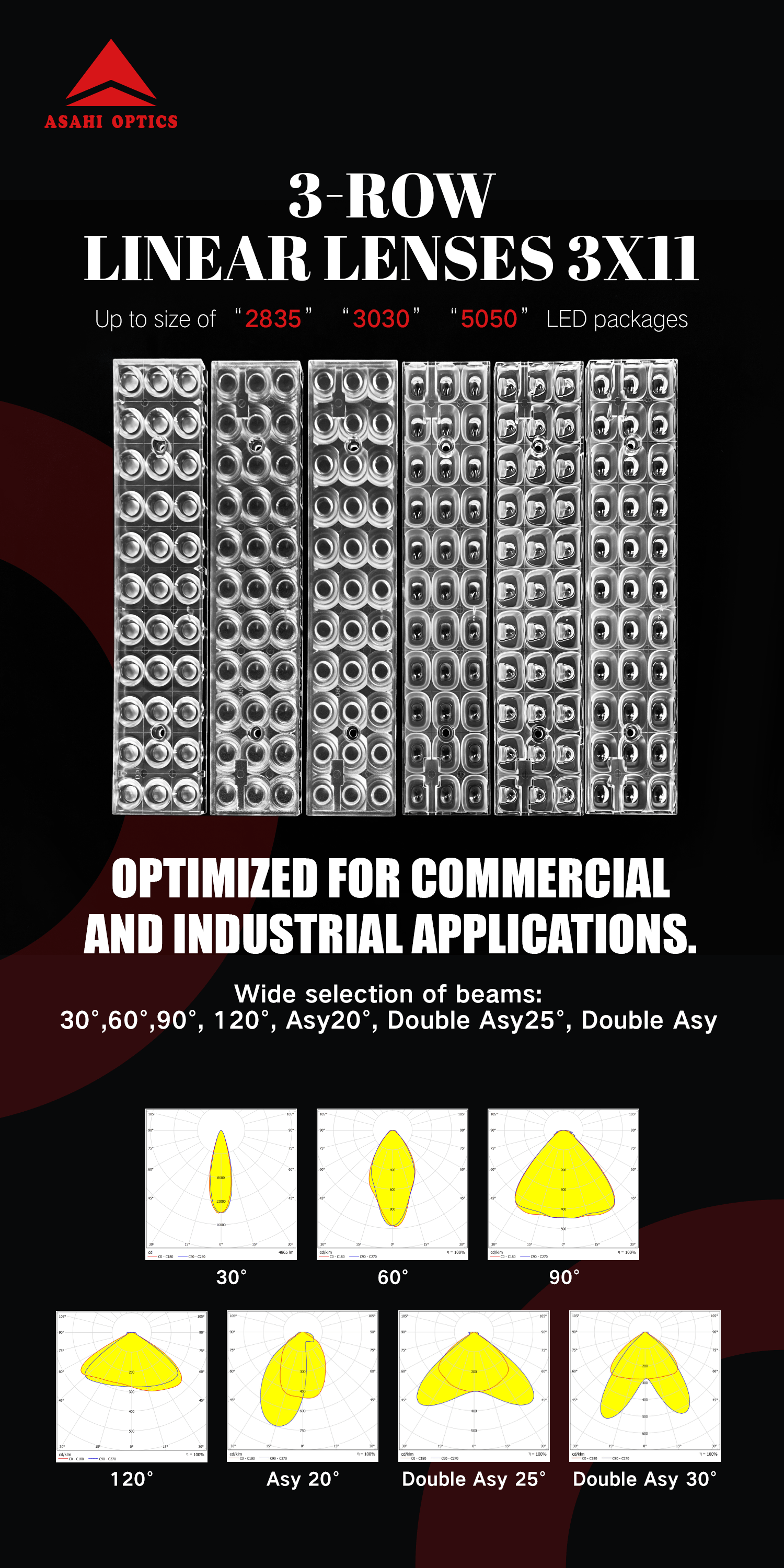

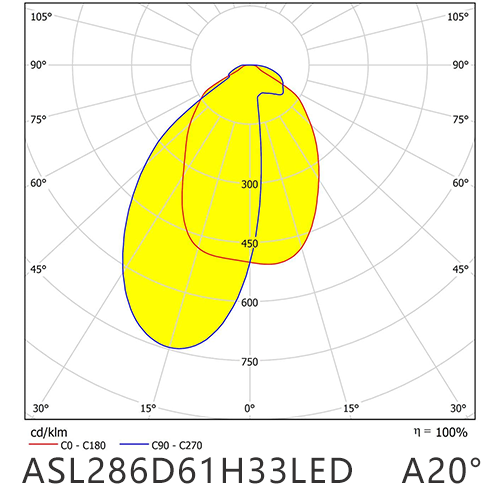

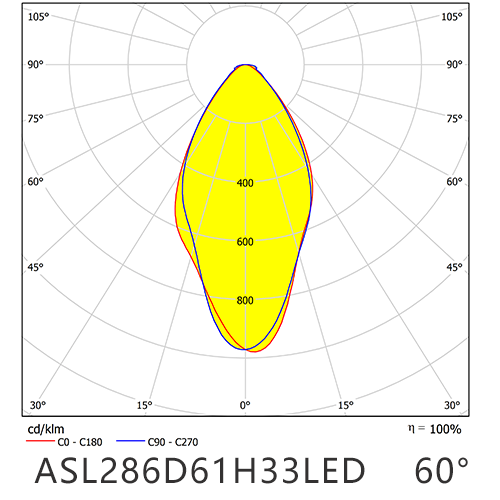

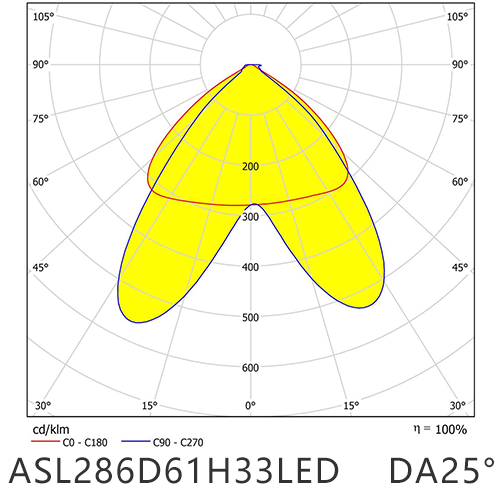

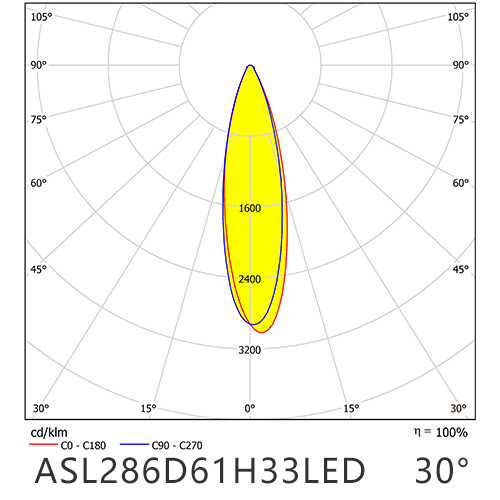

Distribution
Specifications
| Model: | ASL286D61H33LED |
| Diameter: | 286mm |
| Height: | 61mm |
| Angle: | 30°，60°，90°，120°， A20°，DA25°，DA30° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 2835/ 3535/ 5050LED |
| Lighting applications | Retail lighting, Shelf Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.
For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.
Instructions as below
ASL286D61H33LED30G/60G/90G Drawing.dwg
ASL286D61H33LED30G/60G/90G Drawing.pdf
ASL286D61H33LEDA20G-3S Drawing.dwg
ASL286D61H33LEDA20G-3S Drawing.pdf
ASL286D61H33LEDDA25G/30G-3S Drawing.dwg
ASL286D61H33LEDDA25G/30G-3S Drawing.pdf
ASL286D61H33LED30G 3D Drawing.stp
ASL286D61H33LED60G 3D Drawing.stp
ASL286D61H33LED90G 3D Drawing.stp
ASL286D61H33LEDA20G-3S 3D Drawing.stp
