Linear Optics Lighting For Office Application

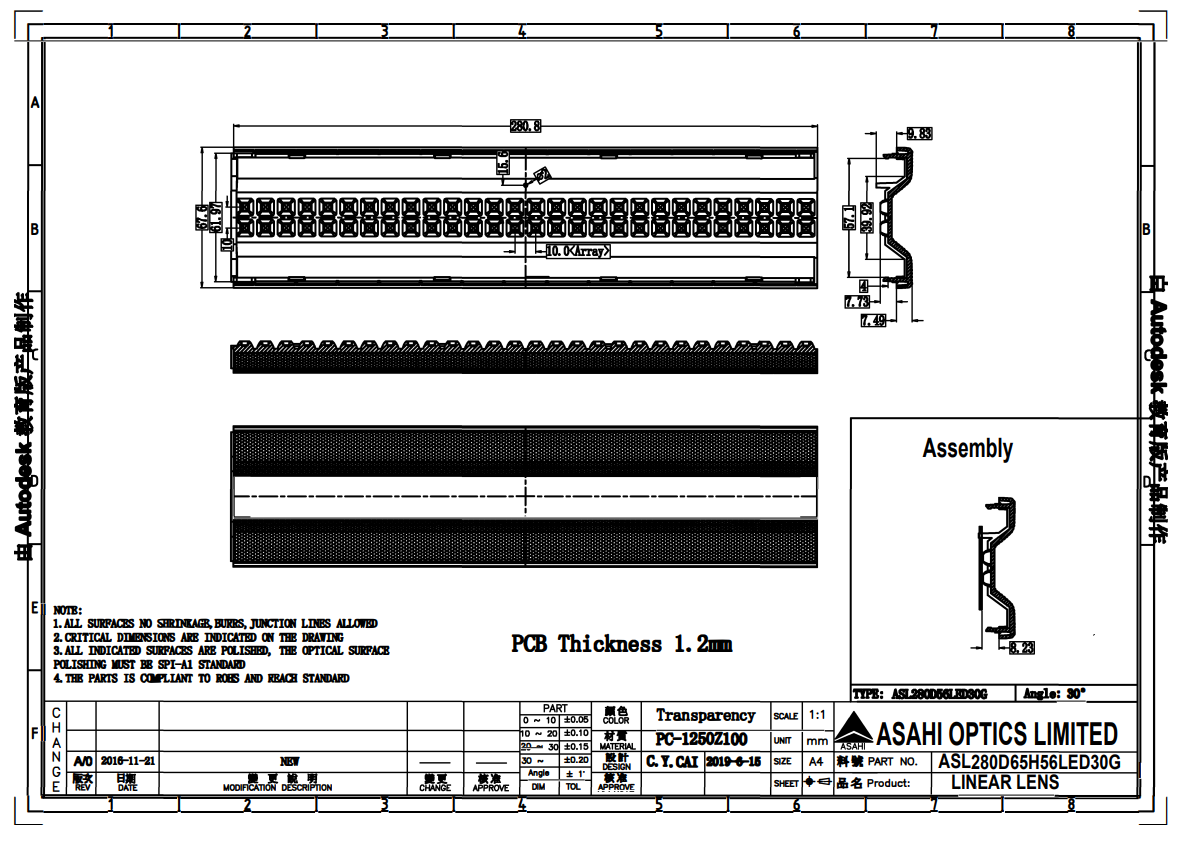

Model: ASL280D65H56LED30G

Diameter: 280.0mm

Height: 67.6mm

Angle: 30°

Material: PMMA

Transmittance: >93%

LED Type: 2835" 3030''5630 LED

Lighting Applications: Linear Lighting

1. The lens is specifically designed to be compatible with a linear lighting fixture that accommodates 56 LEDs. It is engineered to match the spacing and arrangement of the LEDs for optimal light distribution and performance.

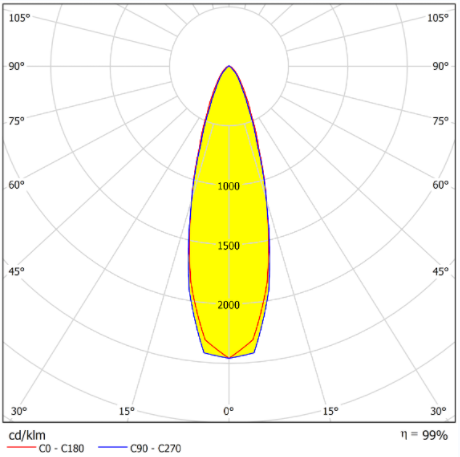

2. The lens provides a fixed beam angle of 30 degrees. This means that the light emitted from the LEDs is spread out in a relatively narrow angle, allowing for more focused illumination.

3. The lens helps control the direction and spread of light emitted by the 56 LEDs, ensuring that the light is efficiently distributed in the desired area or surface within the 30-degree beam angle. It provides a focused and concentrated illumination pattern.

Specifications

Model:	ASL280D65H56LED30G
Diameter:	280mm
Height:	65mm
Angle:	30°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030LED

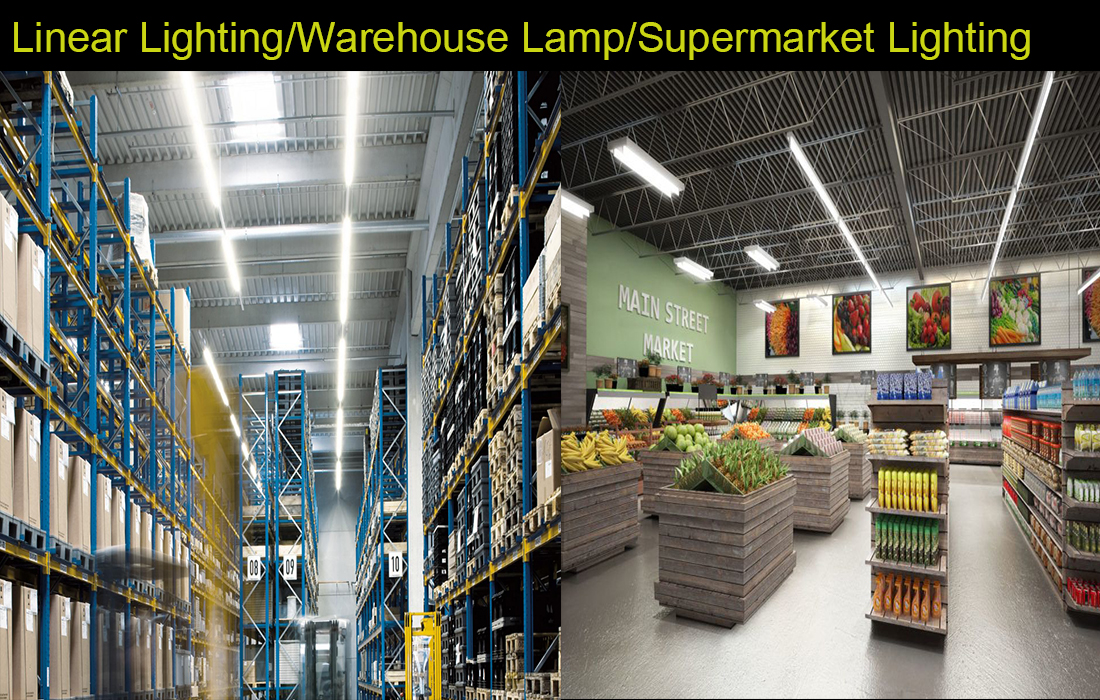

Lighting applications	Linear Lighting, Office Lighting
