TIR structure High Bay Lighting 16LEDS LENS 50mm 3030LED 15degree（1）

4x4 Arrays 3030LED Stadium Flood Lens Narrow Angle 15°

Model: ALD50D16LED15G

Size: 50x50mm

Height: 6.75mm

Angle: 15°

Material: PC-1250Z

Transmittance: >90%

LED Type: "3030"LED

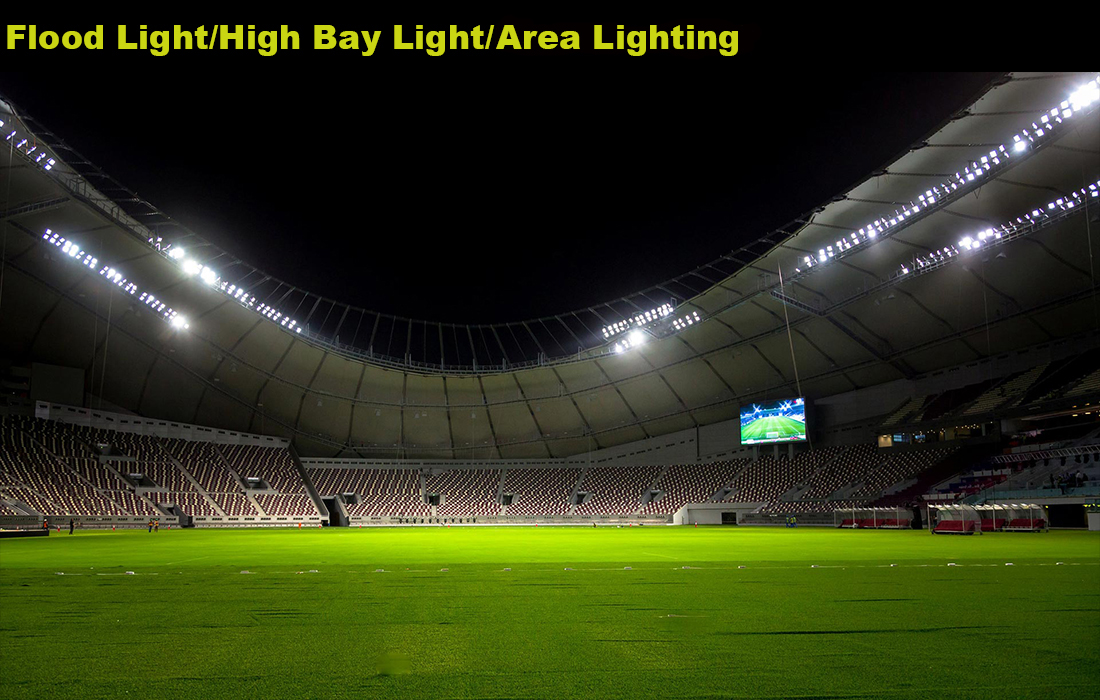

Lighting Applications: Architecture lighting,High Bay lighting

1. 50mm diameter 4x4 arrays narrow beam 15degree lens compatible with 3030LED for flood light

2.Narrow 15 degree, Precise beam control: The illumination Angle of 15 degrees means that the lens can provide a more concentrated and focused beam.

3. This design allows the light to be accurately projected to the target area, avoiding the scattering and waste of light, and providing more accurate lighting effects.

Specifications

Model:	ALD50D16LED15G
Diameter:	50x50mm
Height:	6.75mm
Angle:	15°
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	"3030"LED
Lighting applications	High Bay lighting

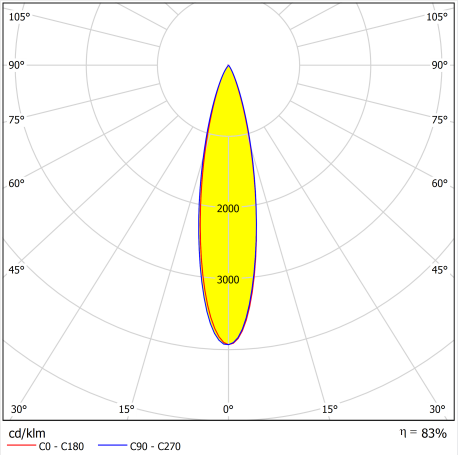

Light Distribution Curve

ISOCANDELA DIAGRAM ALD50D16LED15G

high bay ligh lens

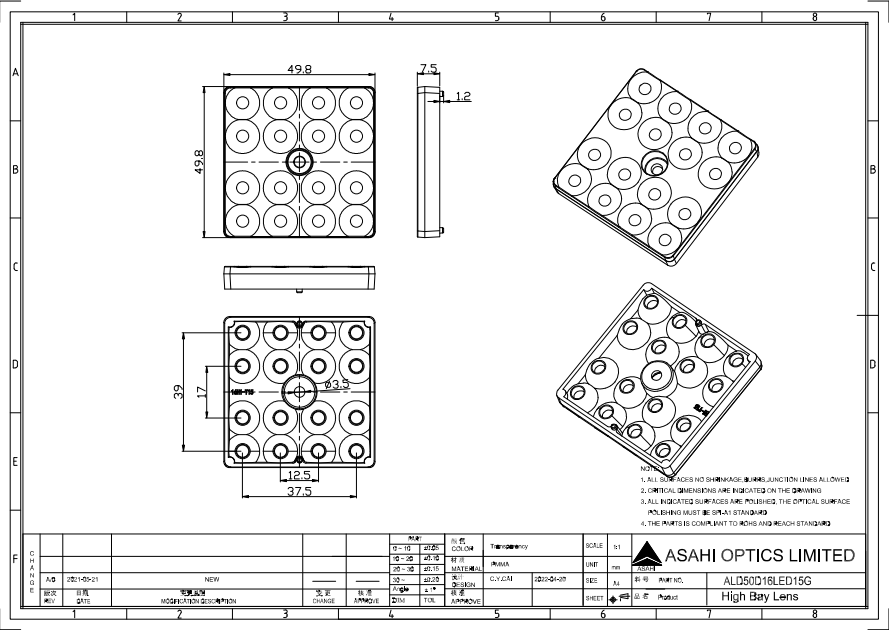

Asahi Optics ALD50D16LED15G

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
