Model: APCOB3598D38G
Diameter: 35mm
Height: 9.8mm
Angle: 38°
Material: PMMA
Transmittance: 90%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lenses are used to precisely control the light emitted by the COB LED. They help to focus and direct the light in a specific direction, allowing for efficient light distribution and minimizing light loss.
2, COB lens is an optical component specifically designed to control and shape the light output of a COB LED.

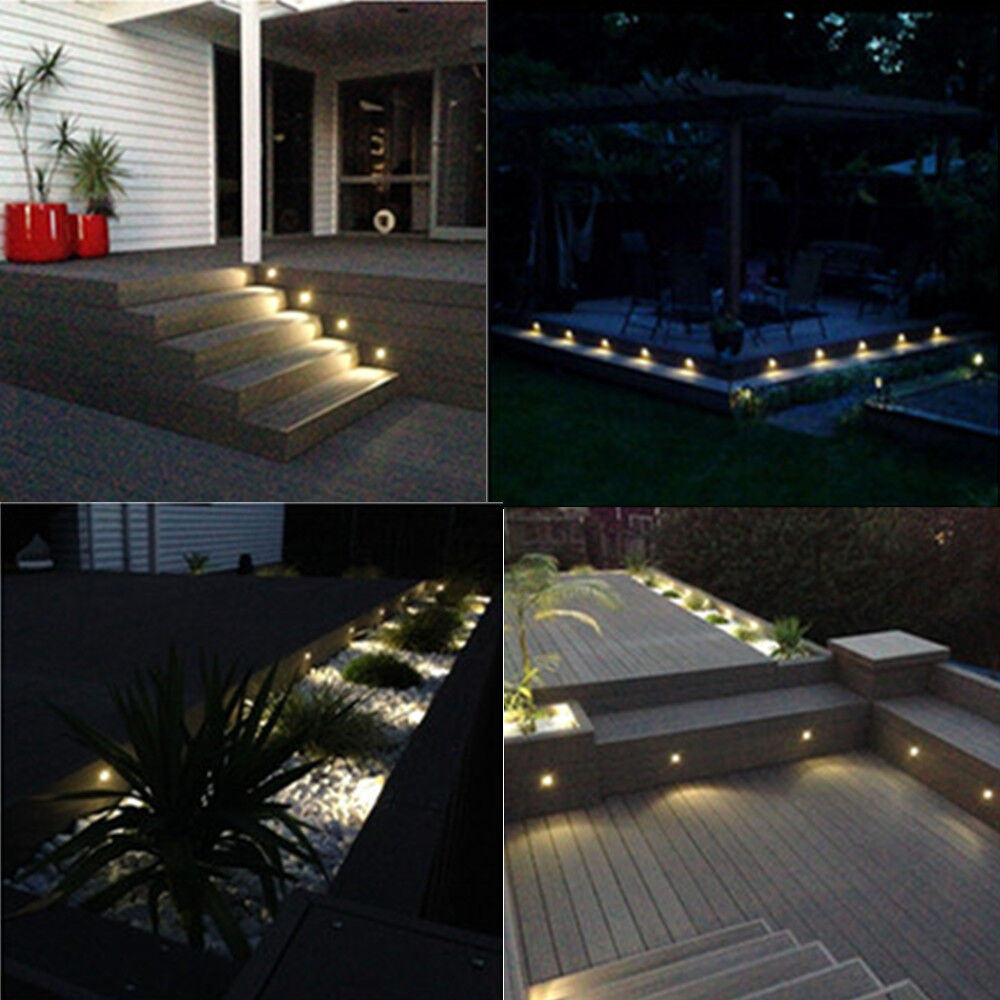

3, COB lenses are incorporated into various indoor and outdoor lighting fixtures, including downlights, spotlights, floodlights, and wall washers. These lenses help shape the light emitted by the COB LEDs, ensuring efficient light distribution and achieving desired lighting effects for different applications.

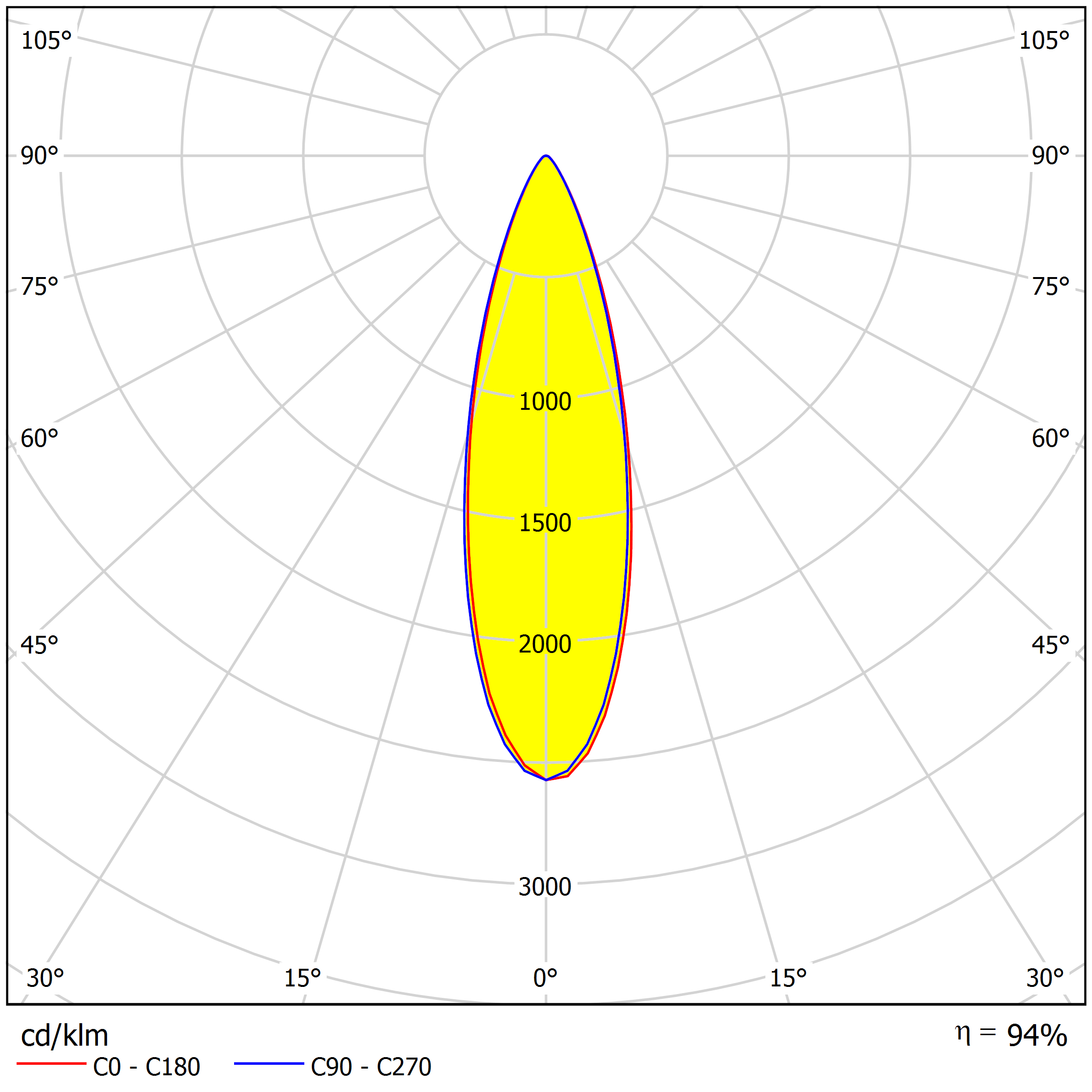

Distribution
Specifications
| Model: | APCOB3598D38G |
| Diameter: | 35mm |
| Height: | 9.8mm |
| Angle: | 38° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Ligh |
LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
-COB LED LENS diameter 35MM, 38 degrees. With buckle, more convenient to assemble.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
