STREET lighting 16LED 50MM 3030LED 30X90G(1)

16LED Array Lens T2M 3030LED Street Lighting Optics

Model: ALST50D16LED3090G

Size: 50MM

Height: 5.04mm

Angle: 30°x90°

Material: PC

Transmittance: 93%

LED Type: 2835LED, 3030LED

Lighting Applications: Street light

1. The 30x90° optical design ensures uniform illumination over both wide horizontal and extended vertical areas, reducing dark spots and enhancing visibility.

2. Suitable for illuminating roadways, ensuring a balanced and uniform distribution of light for safe and efficient traffic flow.

Specifications

Model:	ALST50D16LED3090G
Diameter:	50*50mm
Height:	5.04mm
Angle:	30x90°
Material：	PC
Transmittance：	＞90%
LED Applications	2835LED, 3030LED

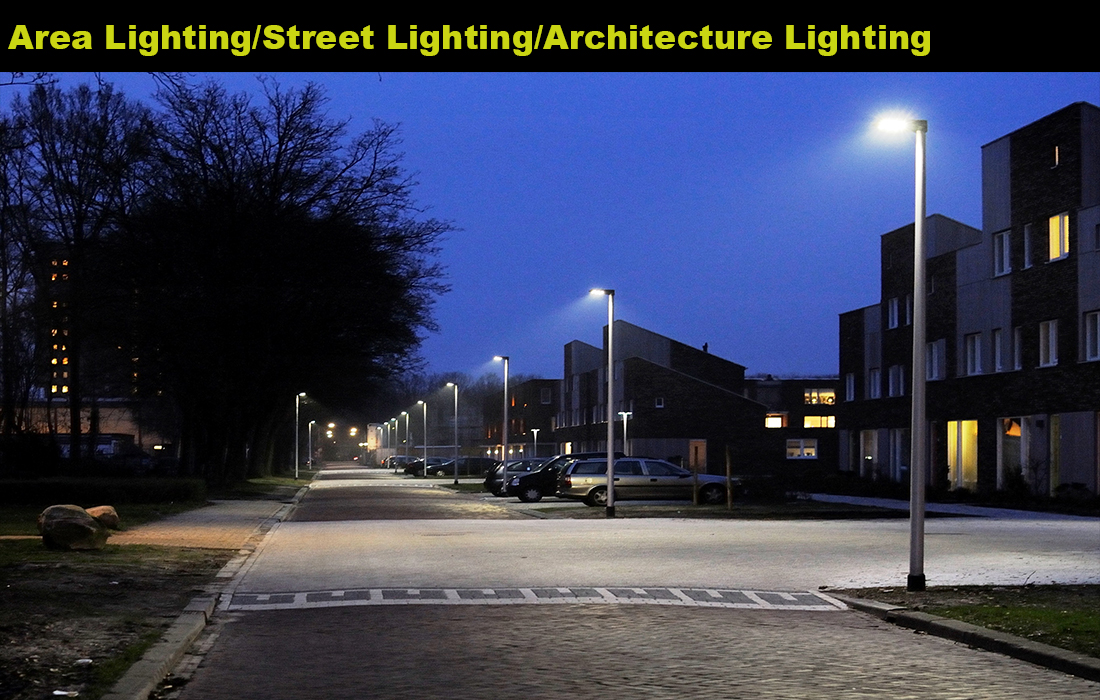

Lighting applications	Street lighting,Area Lighting

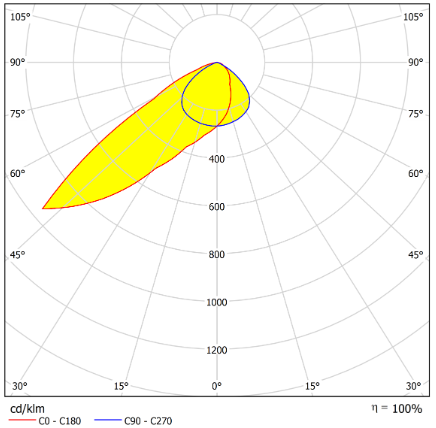

Light Distribution Curve

Street Lighting Lens 1 1

ARST50D16LED3090G.drawing.

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
