16in1 Lens Array 3030LED High Bay Lighting 90degree

Model: ALD50D16LED90G

Size: 50.0mm+50.00mm

Height: 4.47mm

Angle: 90°

Material: PC-1250Z TEIJIN

Transmittance: >90%

LED Type: "3030"LED

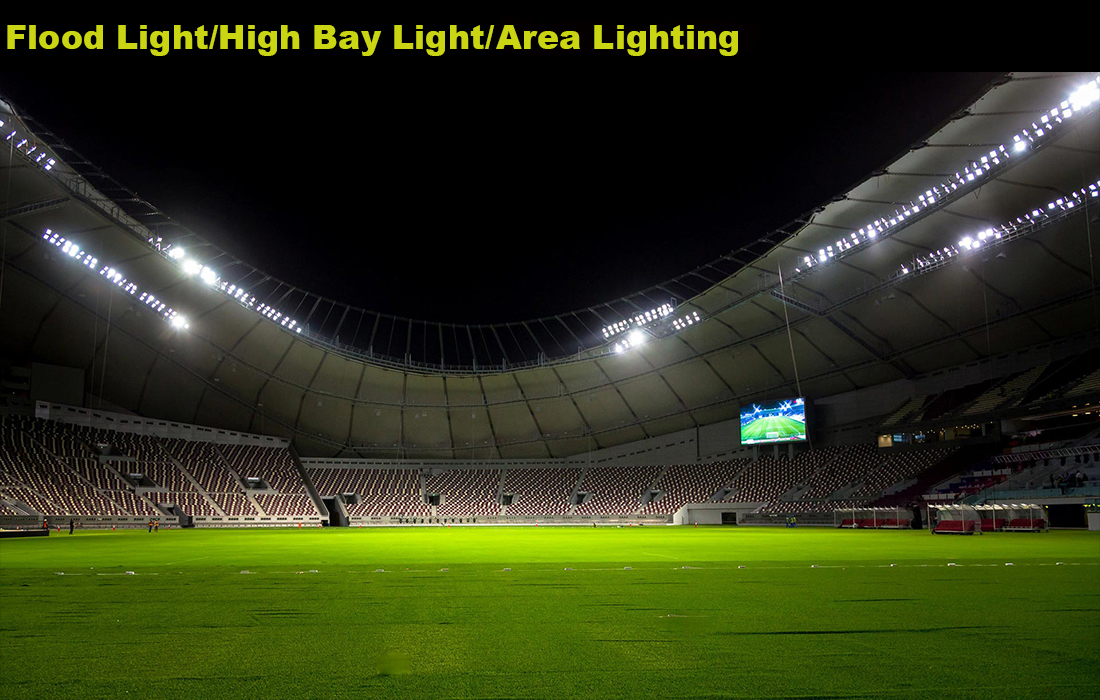

Lighting Applications: Architecture lighting,High Bay lighting,Stadium lighting

1. The lens array design of 16LEDs is suitable for 3030LED light source, with a 90-degree beam angle.

2. Well-suited for a variety of outdoor floodlighting applications, including sports arenas, architectural facades, and large open spaces.

3. The design of the lens array can provide a larger illumination area and disperse the light evenly in the target area.

Specifications

Model:	ALD50D16LED90G
Diameter:	50.0mm+50.00mm
Height:	4.47mm
Angle:	90°
Material：	PC-1250Z TEIJIN
Transmittance：	>90%
LED Applications	"3030"LED
Lighting applications	Architecture lighting,High Bay lighting,Stadium lighting

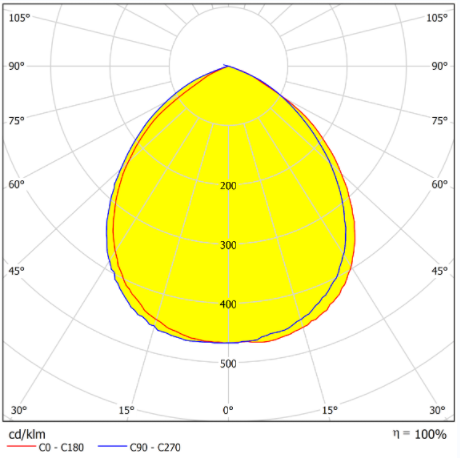

Light Distribution Curve

ISOCANDELA DIAGRAM ALD50D16LED90G

high bay ligh lens

Asahi Optics ALD50D16LED90G

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
