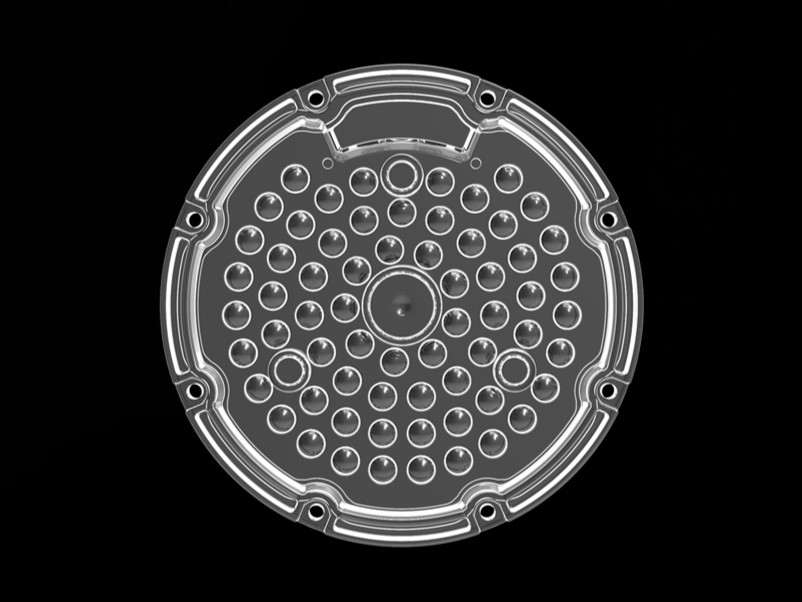

Model: AJ-UFO110D120G
Diameter: 110mm
Height: 6.8mm
Angle: 120°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED

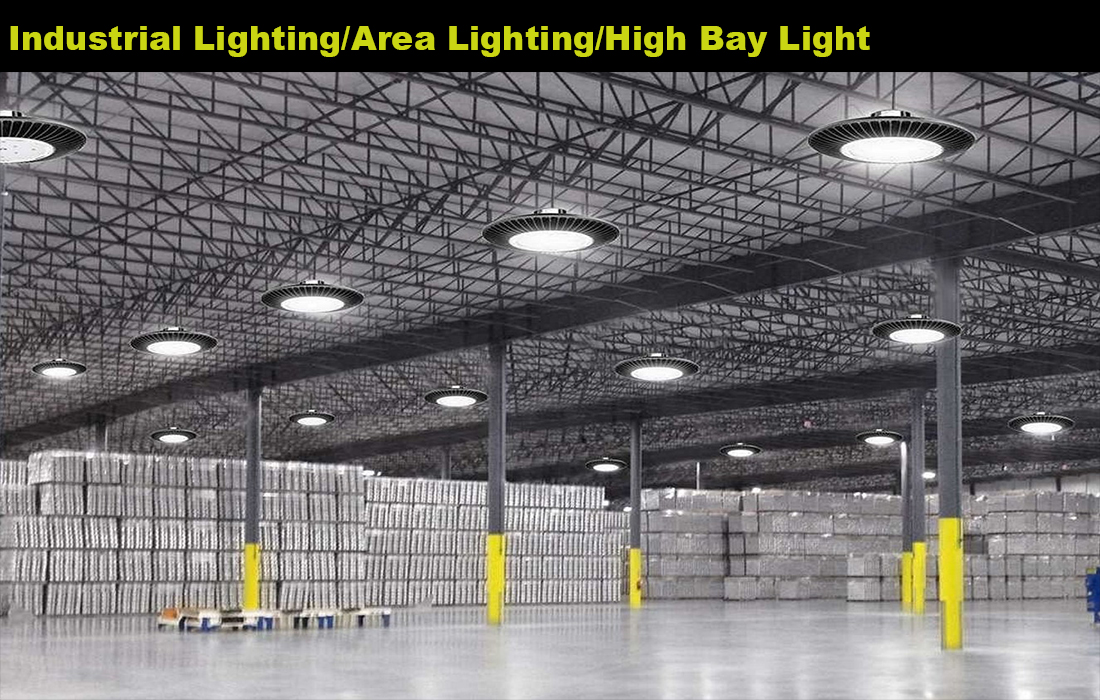

Lighting Applications: garden light, high bay light
1. The design of this lens is optimized for high optical efficiency, ensuring that a significant portion of the emitted light is directed to the intended area, minimizing wastage.
2. With IP66 excellent waterproof and dustproof rating,making the lens suitable for various outdoor lighting applications, and challenging environmental conditions.
3. We can provide both PC and PMMA material for this item,can meet the material requirements of different customers.

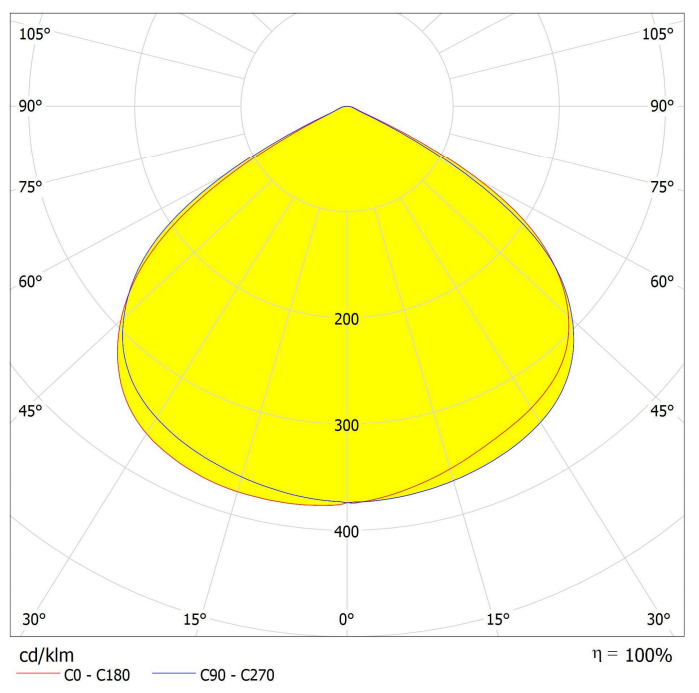

Distribution
Specifications
| Model: | AJ-UFO110D120G |
| Diameter: | 110mm |
| Height: | 6.8mm |
| Angle: | 120° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | garden light, high bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

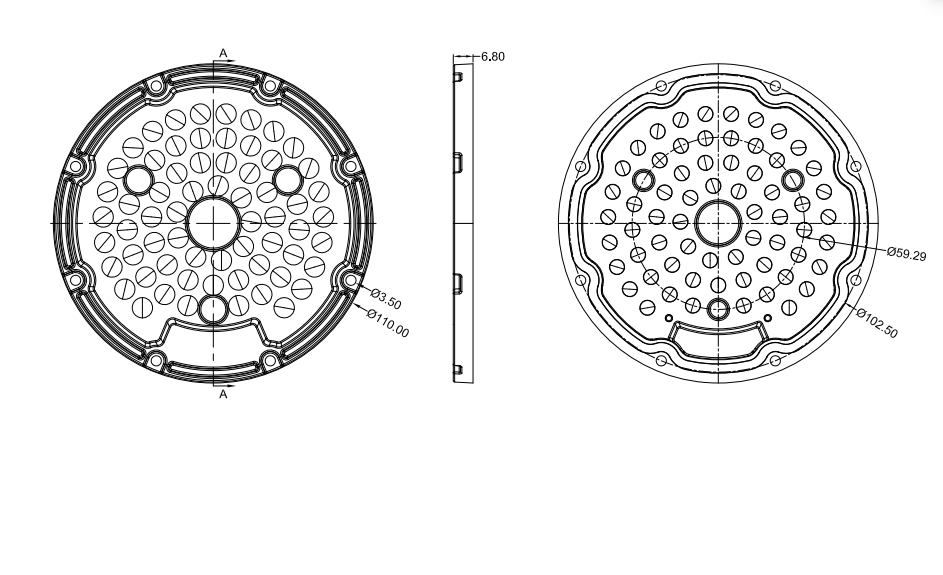

Asahi Optics AJ-UFO110D120G Drawing.dwg
Asahi Optics AJ-UFO110D120G Drawing.pdf
Asahi Optics AJ-UFO110D120G PCB Drawing.dwg
Asahi Optics AJ-UFO110D120G PCB Drawing.pdf
