Wide Width Linear Lens With Low UGR

Model: ASL280D65H56LED60G

Diameter: 280.00

Height:

Angle: 60°

Material: PMMA

Transmittance: >90%

LED Type: 3030''5630''

Lighting Applications: High Bay lighting, Linear Lighting

1. The lens is specifically designed to be compatible with a linear lighting fixture that accommodates 56 LEDs. It is engineered to match the spacing and arrangement of the LEDs for optimal light distribution and performance.

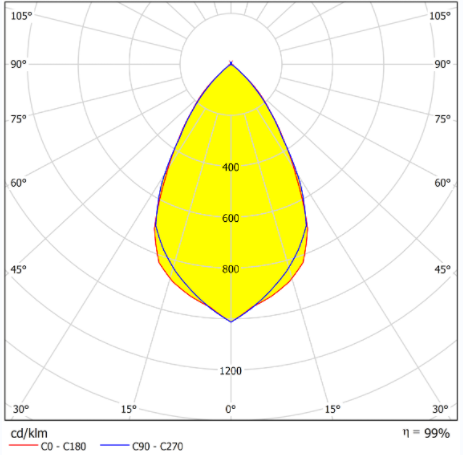

2. The lens provides a fixed beam angle of 60 degrees. This means that the light emitted from the LEDs is spread out in a relatively wide angle, allowing for broader coverage and dispersion of light.

3. The lens helps control the direction and spread of light emitted by the 56 LEDs, ensuring that the light is efficiently distributed in the desired area or surface within the 60-degree beam angle. It provides a wider and more diffuse illumination pattern.

4. The lens aids in distributing the light evenly across a specific area or surface within the 60-degree beam angle. It helps minimize hotspots or dark spots, providing a uniform and consistent illumination from the linear LED array.

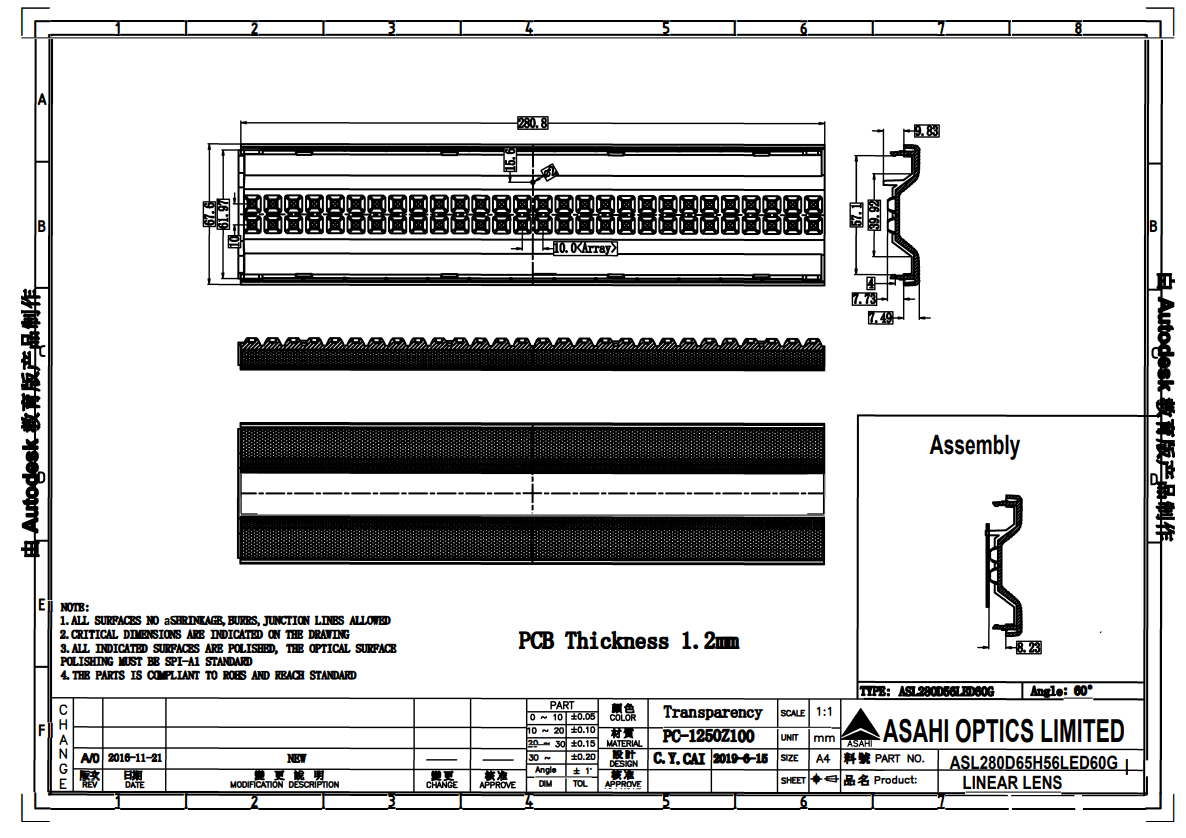

Specifications

Model:	ASL280D65H56LED60G
Diameter:	280mm
Height:	65mm
Angle:	60°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030LED

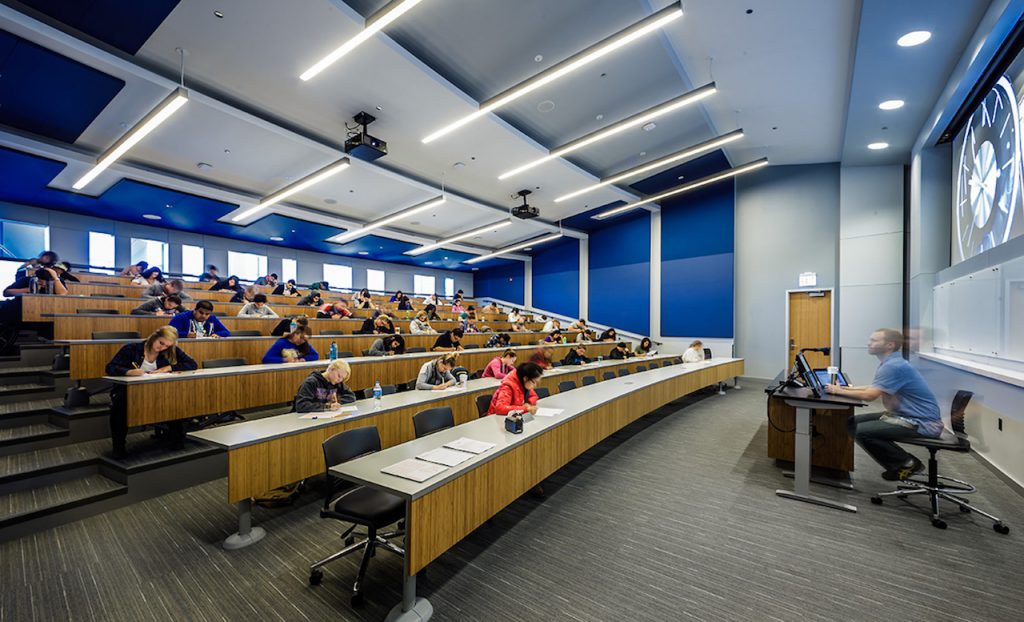

Lighting applications	Linear Lighting, Office Lighting
