Model: ASL120D40H3LED80G
Diameter: 120mm
Height: 10.25mm
Angle: 80°
Material: PMMA Lens+PC Cover
Transmittance: >90%
LED Type: 3030/ 5050/ 5630LED
Lighting Applications: Linear Lighting

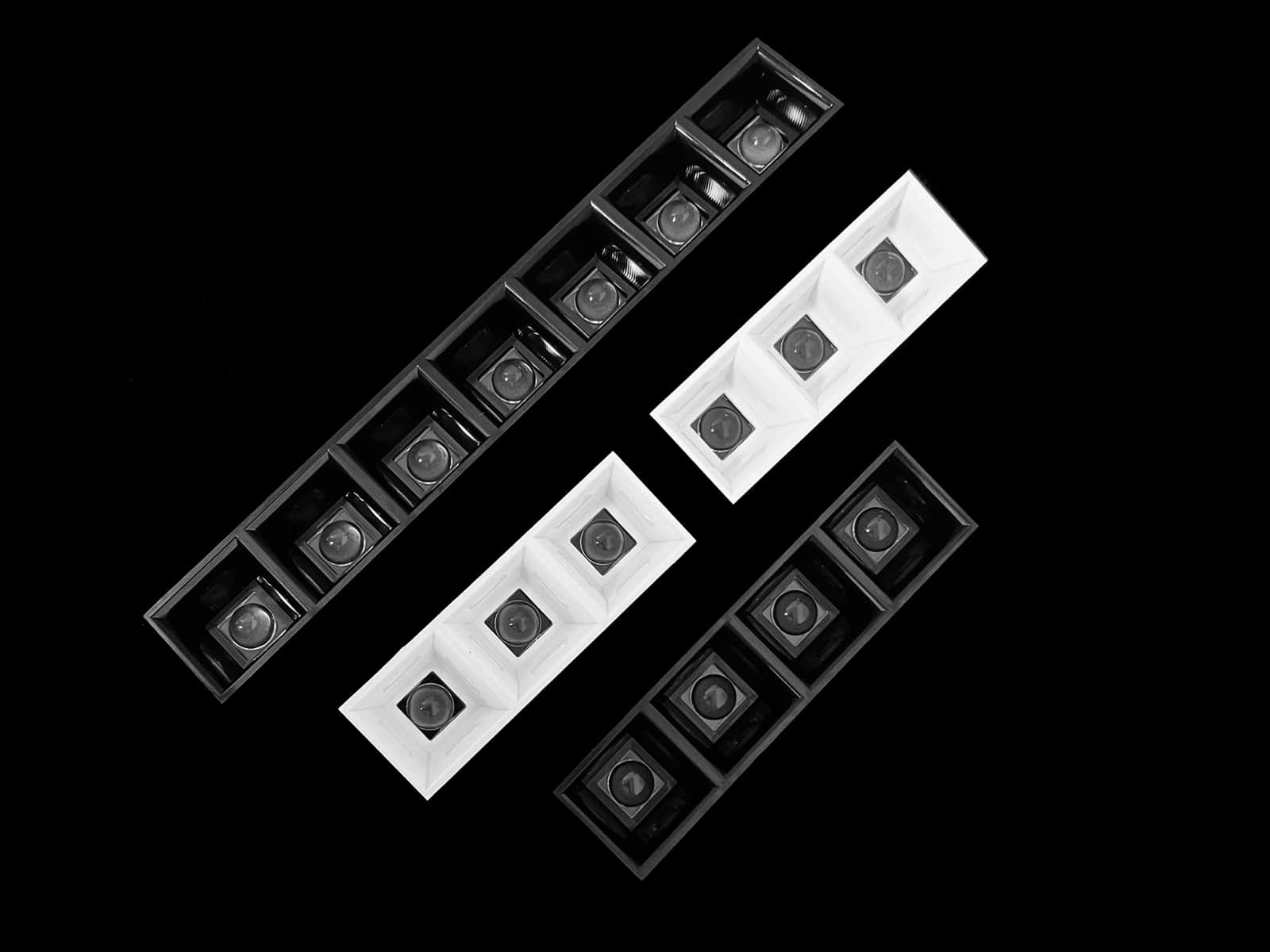

1. The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.

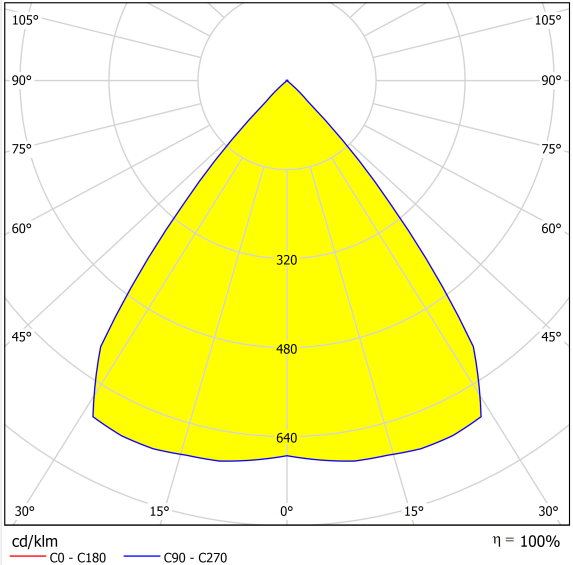

6.Uniform Light Distribution:
This 1x3 lenses excel in providing uniform light distribution. Through careful optical design, these lenses disperse and spread the light evenly across the target area, minimizing hotspots and creating a smooth and consistent illumination. This characteristic is crucial for achieving pleasant and visually appealing lighting environments.
7. Versatile Options:
This lens offers a wide range of options to cater to various lighting requirements. Different lens models within the series provide flexibility in terms of beam angles, light distribution patterns, and optical properties. This versatility allows designers and lighting professionals to select the most suitable lens for their specific applications, ensuring optimal lighting performance and desired lighting effects.
Distribution

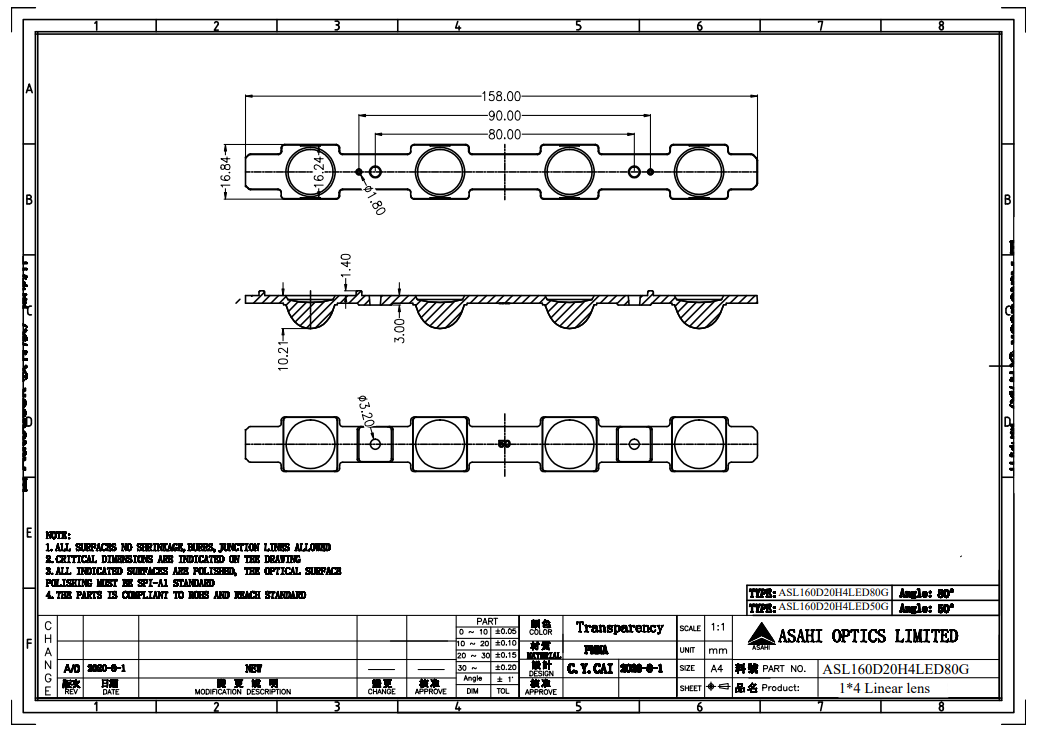

Specifications
| Model: | ASL120D40H3LED80G |
| Diameter: | 120mm |
| Height: | 10.25mm |
| Angle: | 80° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 3030/ 5050/ 5630LED |

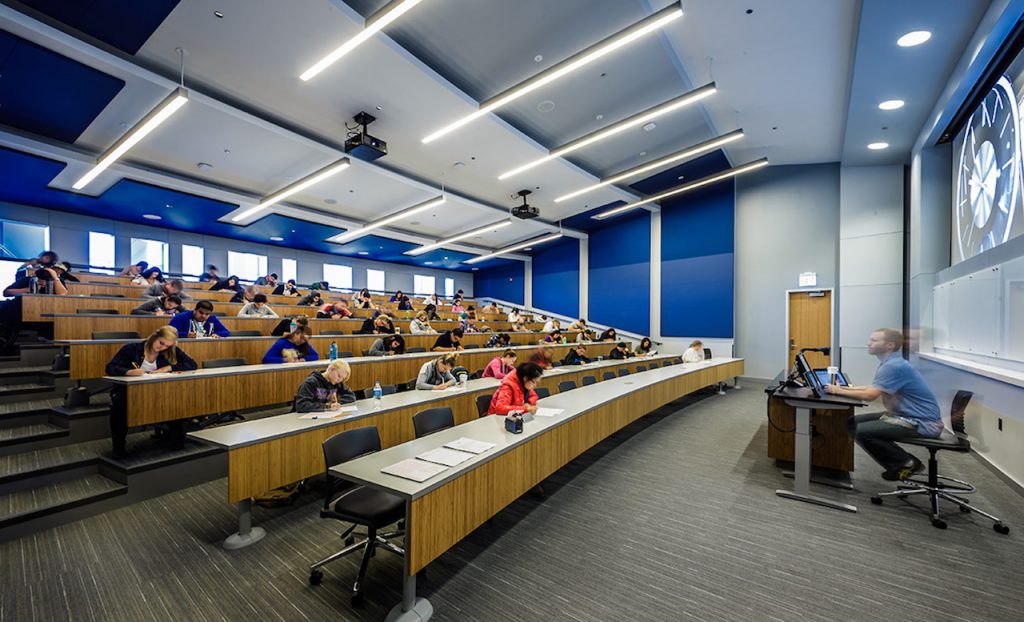

| Lighting applications | Retail Lighting, Office Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
6.Uniform Light Distribution:
This 1x3 lenses excel in providing uniform light distribution. Through careful optical design, these lenses disperse and spread the light evenly across the target area, minimizing hotspots and creating a smooth and consistent illumination. This characteristic is crucial for achieving pleasant and visually appealing lighting environments.
7. Versatile Options:
This lens offers a wide range of options to cater to various lighting requirements. Different lens models within the series provide flexibility in terms of beam angles, light distribution patterns, and optical properties. This versatility allows designers and lighting professionals to select the most suitable lens for their specific applications, ensuring optimal lighting performance and desired lighting effects.
