Model: ASL120D40H3LED30G
Diameter: 120mm
Height: 10.25mm

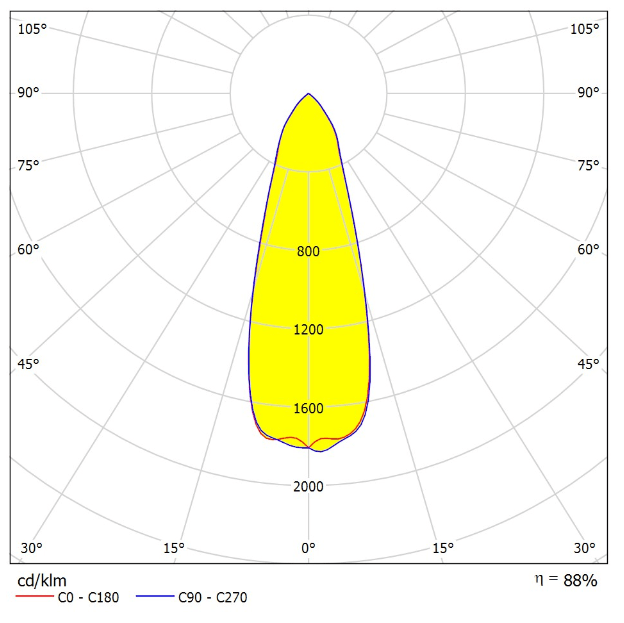

Angle: 30°
Material: PMMA+PC
Transmittance: 93%
LED Type: 3030/5050LED

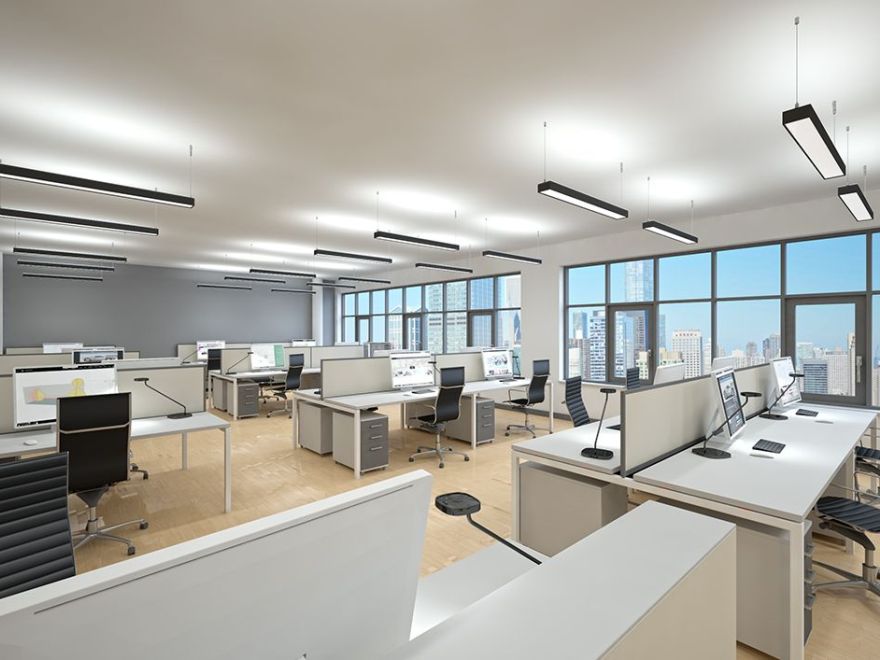

Lighting Applications: Linear Lighting, Office Lighting

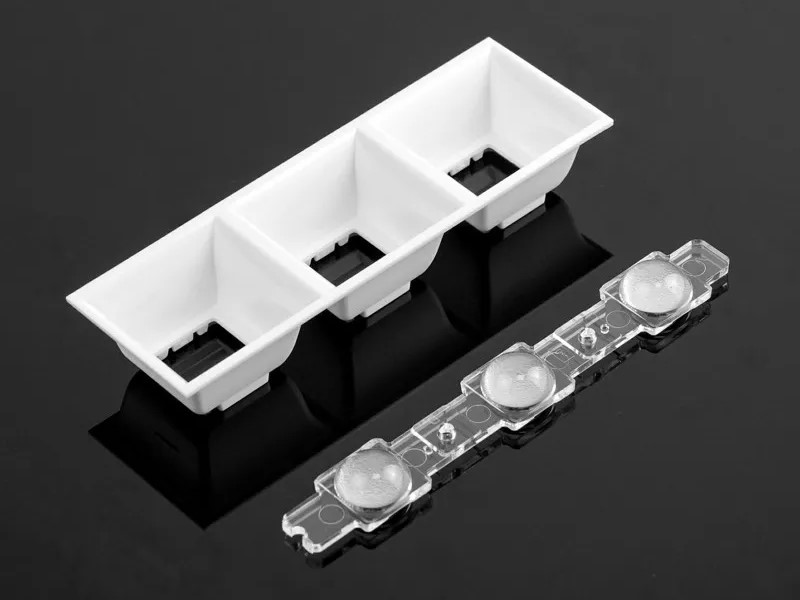

1. 1x3 linear lens with black and white color offering more options for different lighting scenarios.
2. Lower UGR with excellent glare control
3. PMMA lens material has 93% lighting transmittance
4. seamless shade with gloss or matt finish
Specifications
| Model: | ASL120D40H3LED30G |
| Diameter: | 120mm |
| Height: | 10.25mm |
| Angle: | 30° |
| Material： | PMMA+PC |
| Transmittance： | 93% |
| LED Applications | 3030/5050LED |
| Lighting applications | Linear Lighting, Office Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
