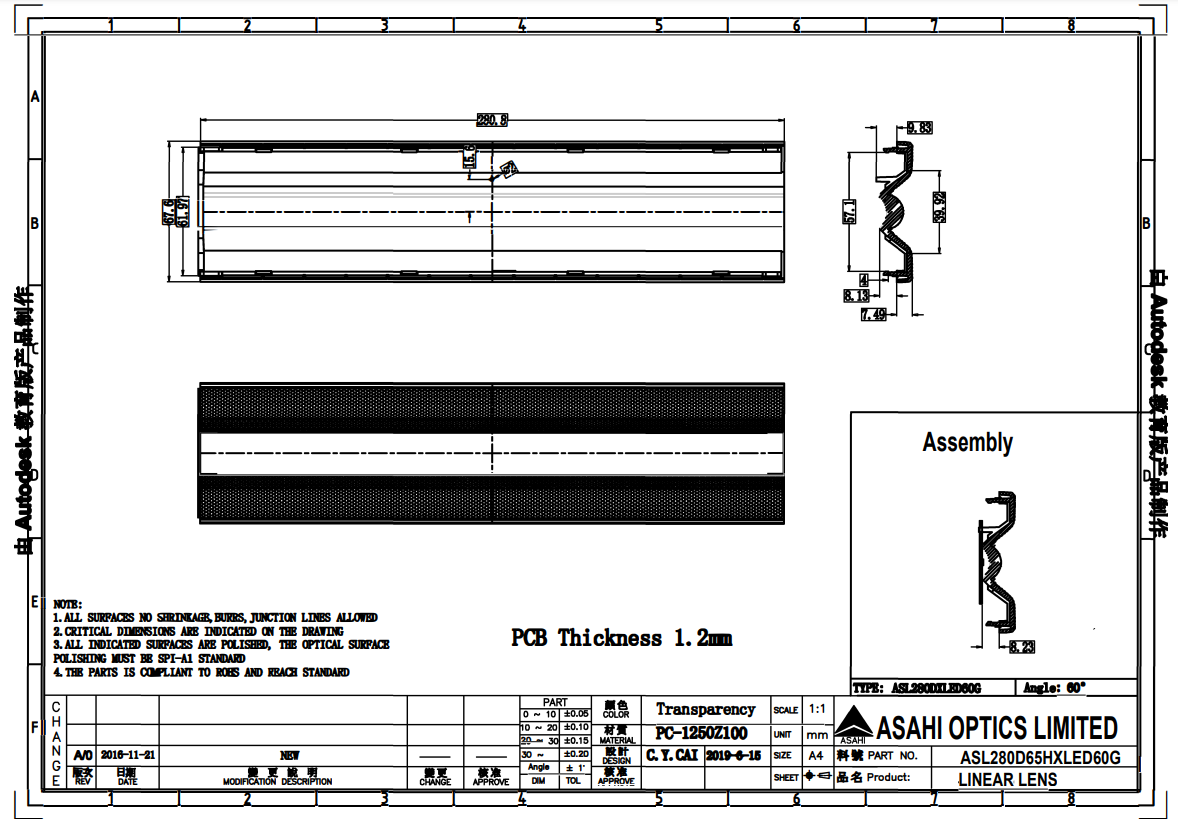

Indoor Linear Lens Design Featuring Zhaga Length

Model: ASL280D65HXLED60G

Diameter: 280.0mm

Height: 7.5mm

Angle: 60°

Material: PMMA

Transmittance: >93%

LED Type: 3030''5630''5050'' 2835''

Lighting Applications: Linear Lighting

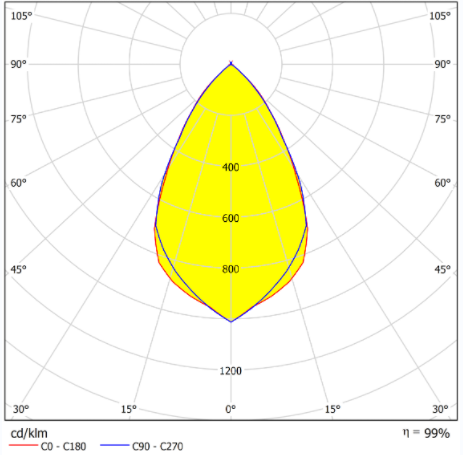

1. The lens provides a fixed beam angle of 60 degrees. This means that the light emitted from the fixture is spread out in a relatively wide angle, allowing for broader coverage and dispersion of light.

2. The lens helps control the direction and spread of light emitted by the fixture, ensuring that the light is efficiently distributed in the desired area or surface within the 60-degree beam angle. It provides a wider and more diffuse illumination pattern.

3. The lens is designed to maximize the efficiency of the lighting system. It helps extract the most light from the light source, directing it in the desired direction and reducing light loss or wastage within the 60-degree beam angle.

Specifications

Model:	ASL280D65HXLED60G
Diameter:	280mm
Height:	65mm
Angle:	60°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030LED

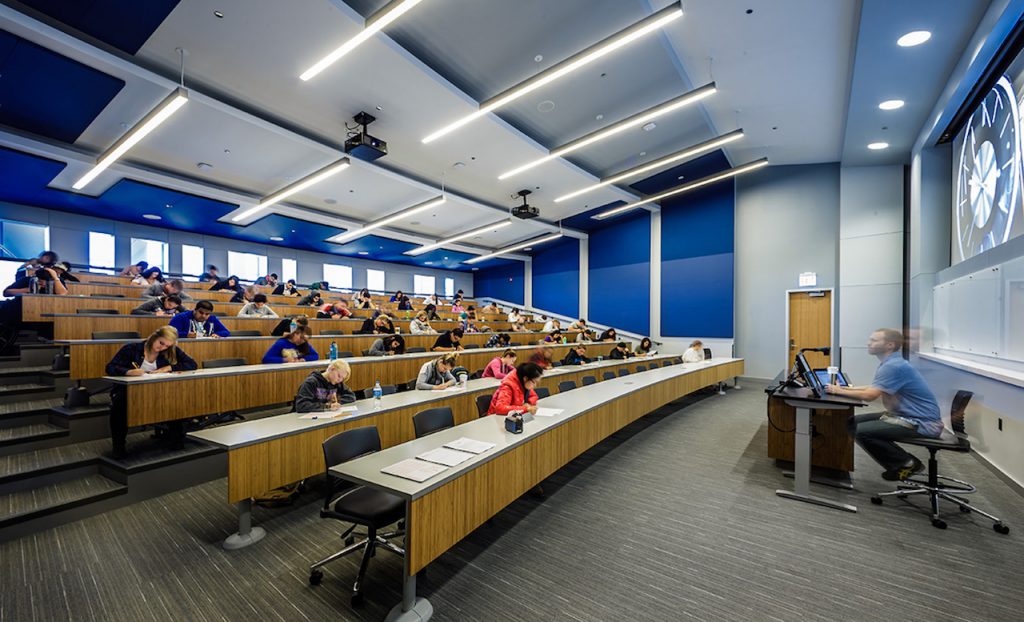

Lighting applications	Linear Lighting, Office Lighting
