50mm 6LED Array Lens Wide Beam 90° Mining Lamp Lens

Model: ALHB50D6LED5050T90G

Diameter: 50x50mm

Height: 5.55mm

Angle: 90°

Material: PC-1250Z

Transmittance: >93%

LED Type: 5050 LED

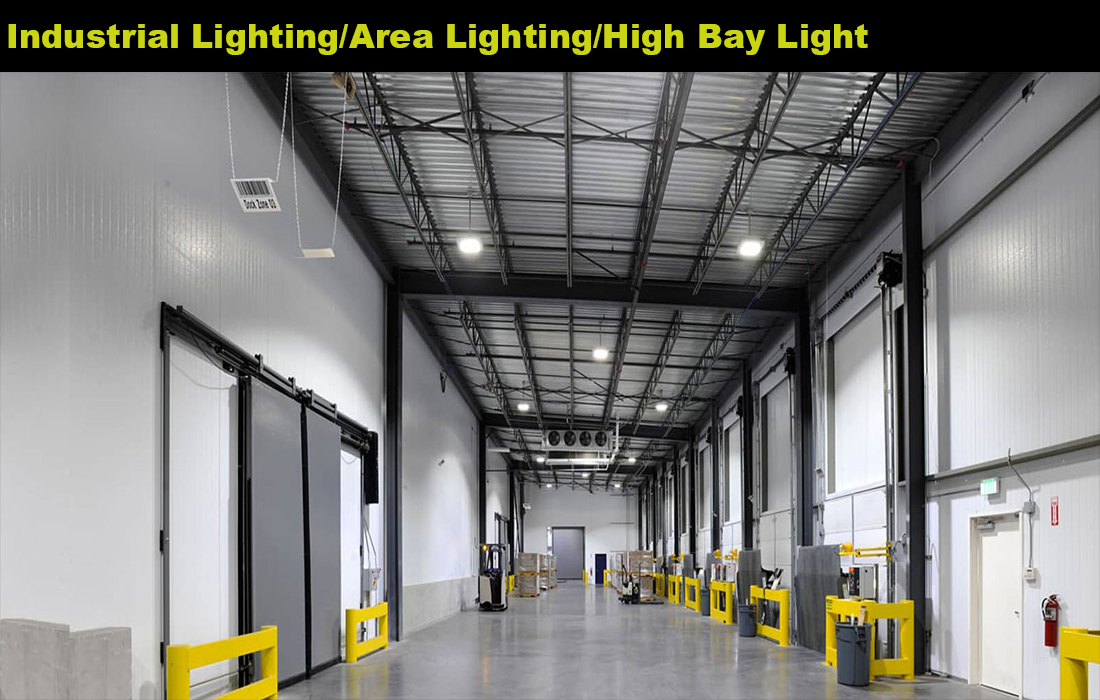

Lighting Applications: High Bay Lighting, Area Lighting

1. The 2x3 lens design, coupled with the 90° medium beam angle, provides versatile lighting distribution suitable for a range of applications, offering balanced coverage for flood lighting, high bay lighting, and stadium lighting.

2. It's made of high quality PC material,resistant to UV degradation, ensuring long-term optical clarity and performance even in outdoor environments with prolonged sun exposure.

3. Delivers high lumen output, ensuring powerful and effective illumination for expansive areas.

2. It's made of high quality PC material,resistant to UV degradation, ensuring long-term optical clarity and performance even in outdoor environments with prolonged sun exposure.

3. Delivers high lumen output, ensuring powerful and effective illumination for expansive areas.

Specifications

Model:	ALHB50D6LED5050T90G
Diameter:	50x50mm
Height:	5.55mm
Angle:	90°
Material：	PC-1250Z
Transmittance：	>93%
LED Type	5050 LED
Lighting applications	High Bay Lighting, Area Lighting

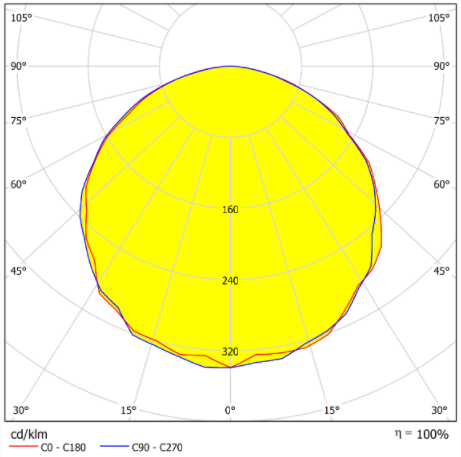

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
