Model: ASL160D40H4LED30G
Diameter: 160mm
Height: 40mm
Angle: 30°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030/5050LED

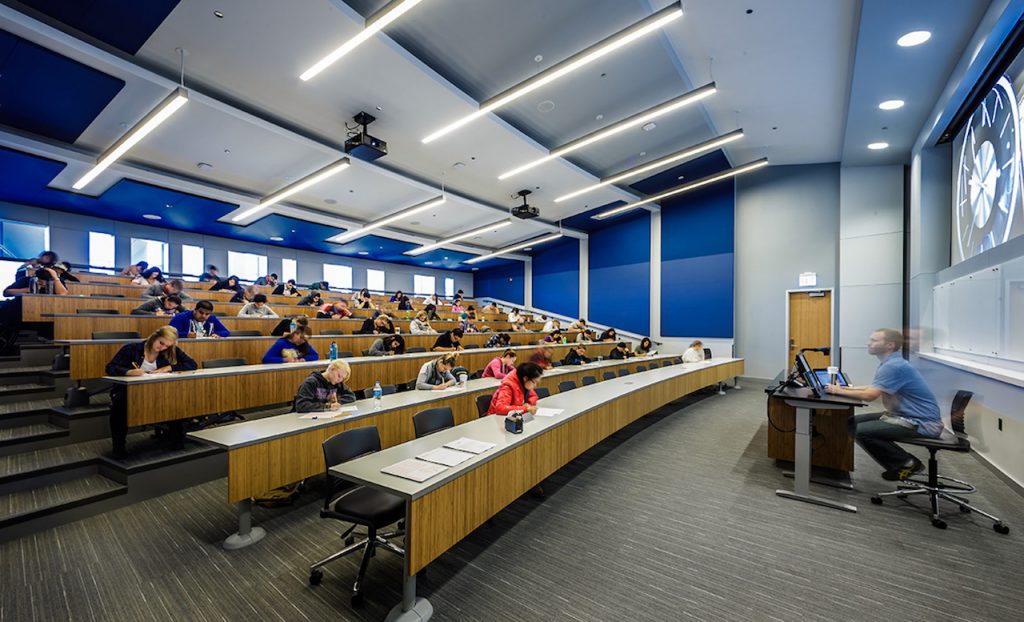

Lighting Applications: Linear Lighting, Office Lighting

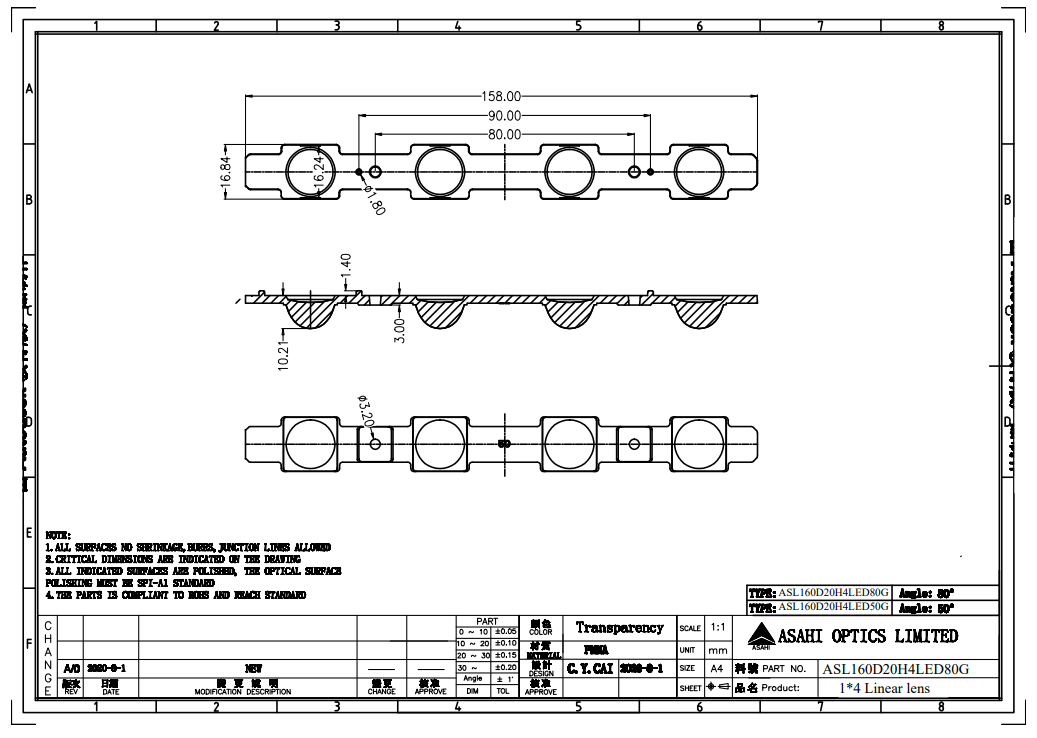

1. The 1X4 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x4 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X4 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
Specifications
| Model: | ASL160D40H4LED30G |
| Diameter: | 160mm |
| Height: | 40mm |
| Angle: | 30° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030/5050LED |
| Lighting applications | Linear Lighting, Office Lighting |
