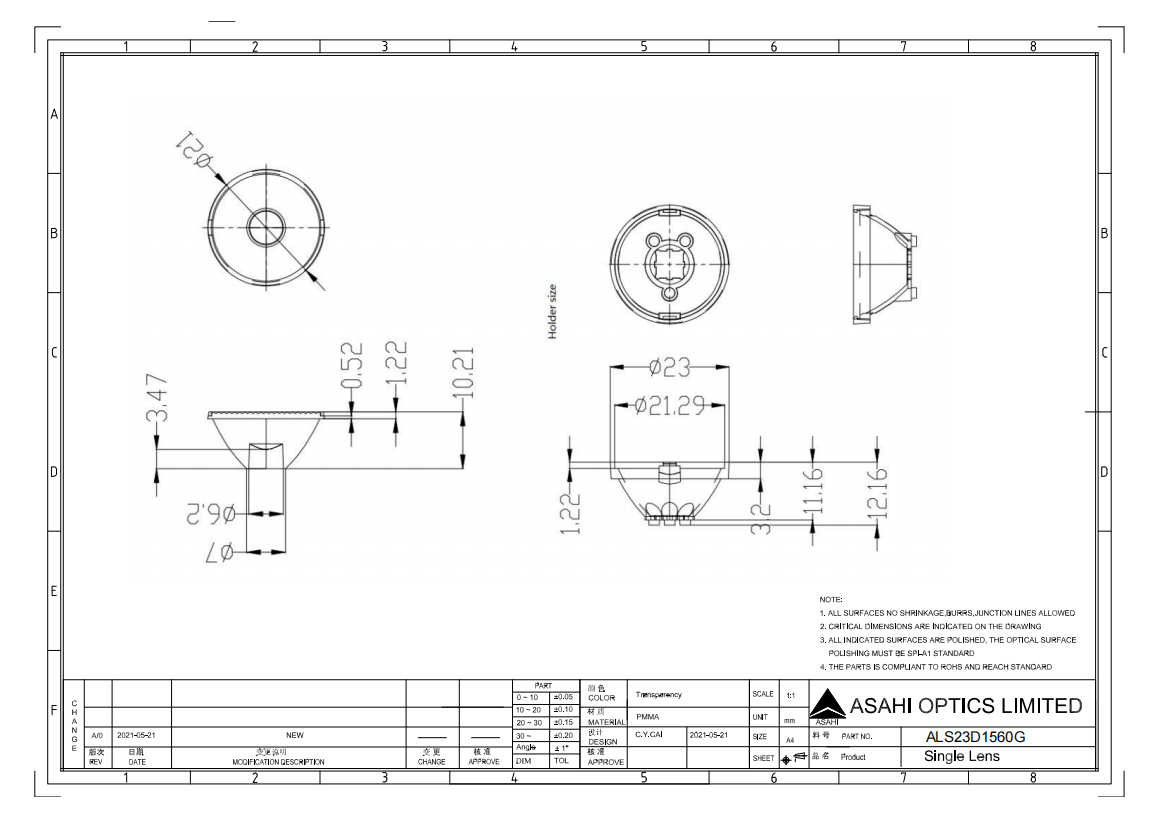

Model: ALS23D1560G
Diameter: 23.0mm
Height: 11.16mm
Angle: 15x60°
Material: PMMA
Transmittance: 90%
LED Type: 3535/5050LED

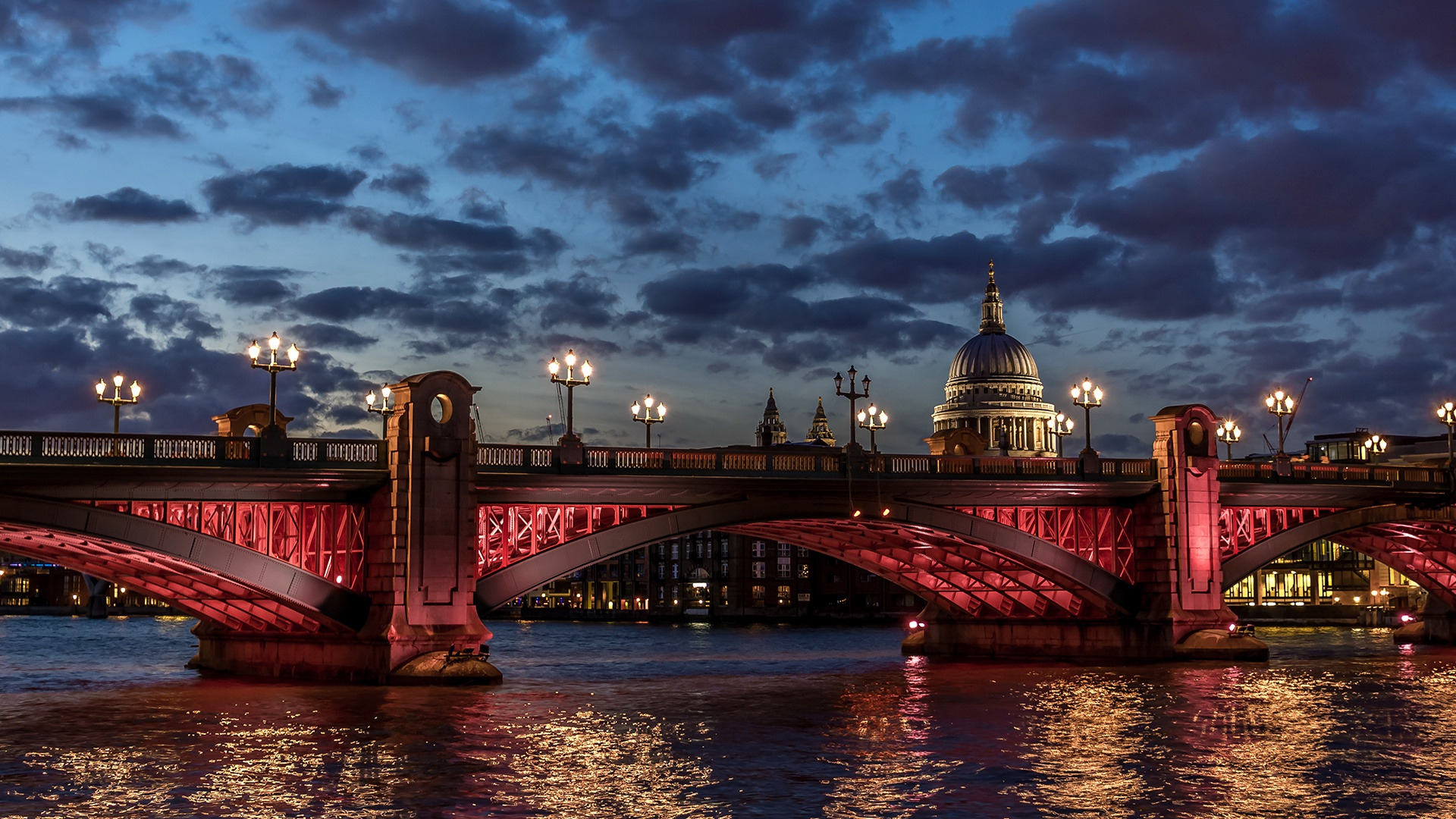

Lighting Applications: Architecture light, wall wash light

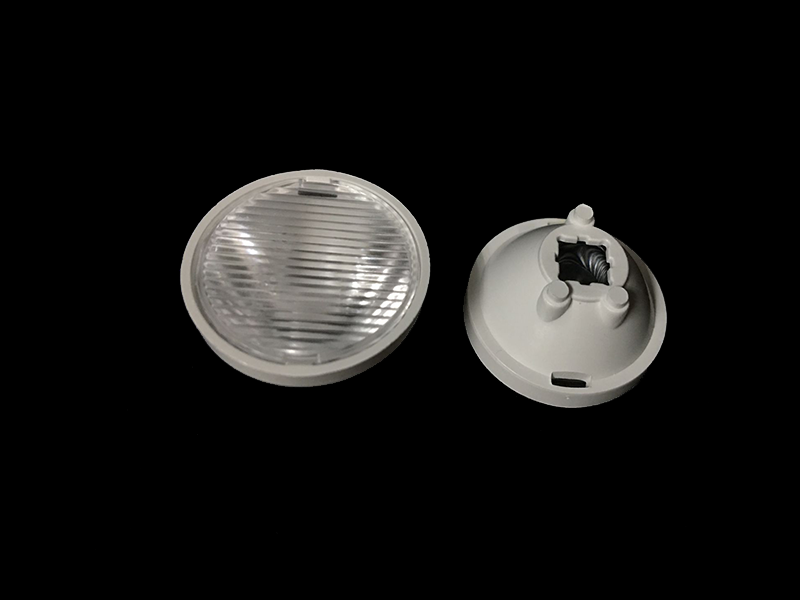

1. 45mm XML RGBW LED lens with an oval beam angle of 15x60°.
2. This type of beam angle is ideal for applications that require a long and narrow spread of light, such as architectural lighting, landscape lighting, or accent lighting.
Specifications
| Model: | ALS23D1560G |
| Diameter: | 23.0mm |
| Height: | 11.16mm |
| Angle: | 15x60° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 3535/5050LED |
| Lighting applications | Architecture light, wall wash light |

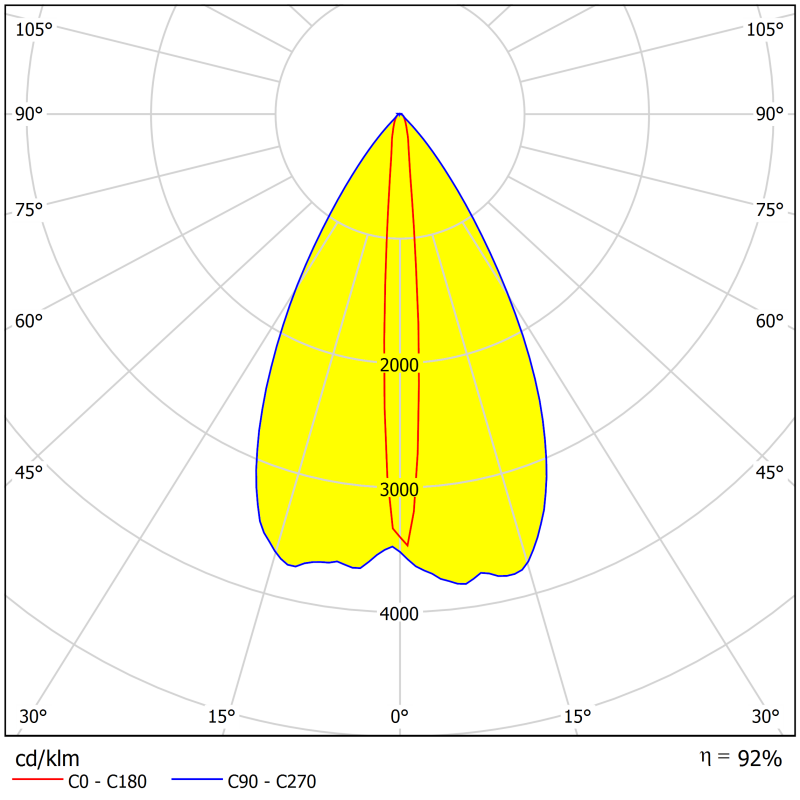

Light Distribution Curve
The lens is specially designed for CREE XML-Color RGBW LED for wall washer lighting with a narrow and long beam angle 15°X60°
