Model: AJS45DRGBW24G
Diameter: 45mm
Height: 21.6mm
Angle: 24°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW
Lighting Applications: Stage light
1, RGBW lens is an optical lens used to control the color and brightness of light.
2, RGBW stands for Red, Green, Blue and White. Compared with traditional RGB lenses, RGBW lenses add a white LED. This white LED can provide purer white light while increasing overall brightness.

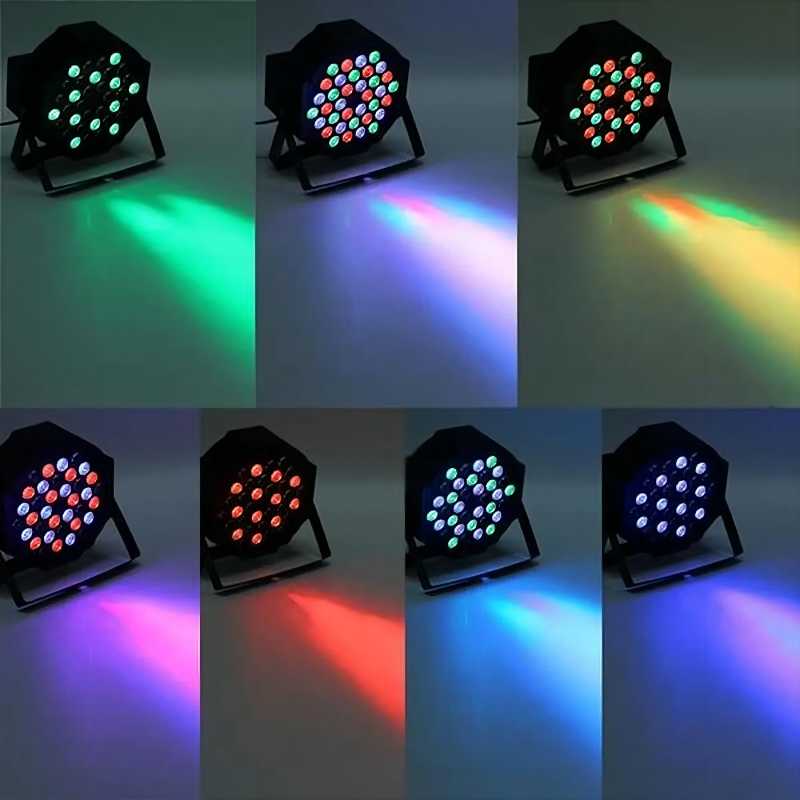

3, RGBW lenses are extensively used in stage lighting setups for concerts, theater productions, and other live performances. They enable lighting designers to create dynamic and vibrant lighting effects, including color washes, spotlights, and pattern projections.

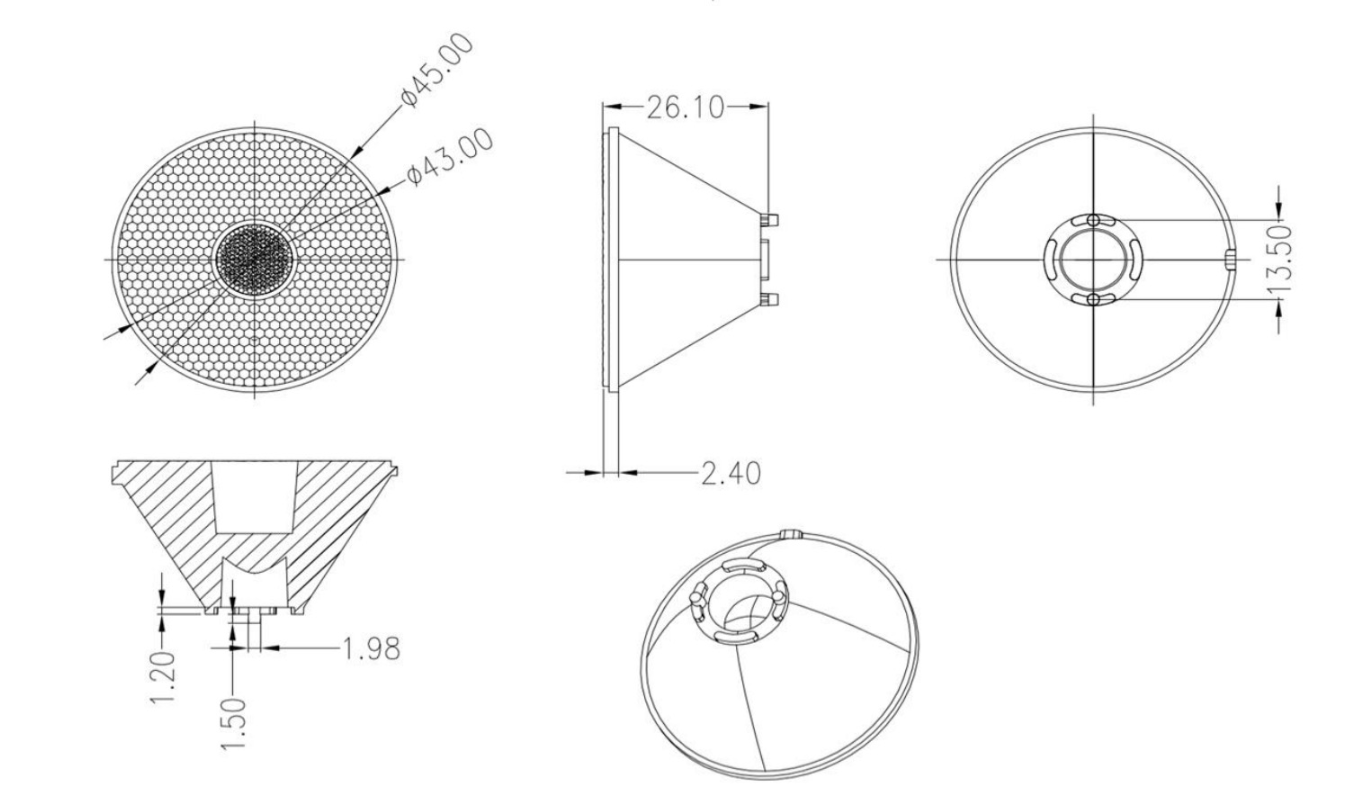

Distribution
Specifications
| Model: | AJS45DRGBW24G |
| Diameter: | 45mm |
| Height: | 26.1mm |
| Angle: | 24° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | Stage light |
LED Type
XML-RGBW
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
