2x3 Arrays 30degree 5050LED Stadium Flood Light Lens

Model: ALHB50D6LED5050T30G

Diameter: 50x50mm

Height: 8.7mm

Angle: 30°

Material: PC-1250Z

Transmittance: >93%

LED Type: 5050 LED

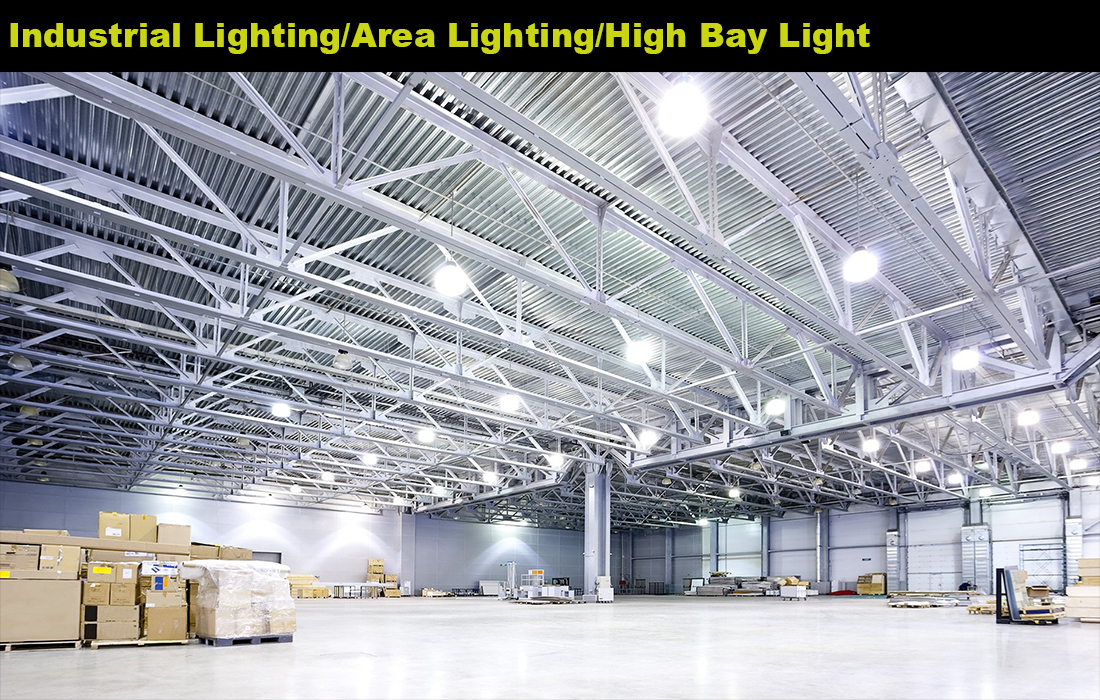

Lighting Applications: High Bay Lighting, Area Lighting

1. The 2x3 30° floodlight lens is designed with a TIR (Total Internal Reflection) structure,enhance light transmission efficiency by utilizing total internal reflection, ensuring that light is effectively focused or uniformly distributed.

2. Well-suited for a variety of outdoor floodlighting applications, including sports arenas, architectural facades, and large open spaces.

3. It's made of PC material, exhibits excellent thermal stability, maintaining optical performance under a variety of temperature conditions.

2. Well-suited for a variety of outdoor floodlighting applications, including sports arenas, architectural facades, and large open spaces.

3. It's made of PC material, exhibits excellent thermal stability, maintaining optical performance under a variety of temperature conditions.

Specifications

Model:	ALHB50D6LED5050T30G
Diameter:	50x50mm
Height:	8.7mm
Angle:	30°
Material：	PC-1250Z
Transmittance：	>93%
LED Type	5050 LED
Lighting applications	High Bay Lighting, Area Lighting

Light Distribution Curve

ALHB50D6LED5050T30G Drawing

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
