Model: ALS26D3535LED10X100G
Diameter: 26.1mm
Height: 12.8mm
Angle: 10°*100°
Material: PMMA
Transmittance: >93%
LED Type: 3030/ 5050LED
Lighting Applications: Window linear lighting, Wall washer lighiting, traffic signal light
1, Single linear lens for window linear lighting
2, Single linear lens with oval narrow beam 10x100°
3, Application for window linear lighting, wall washer lighting, traffic signal lighting

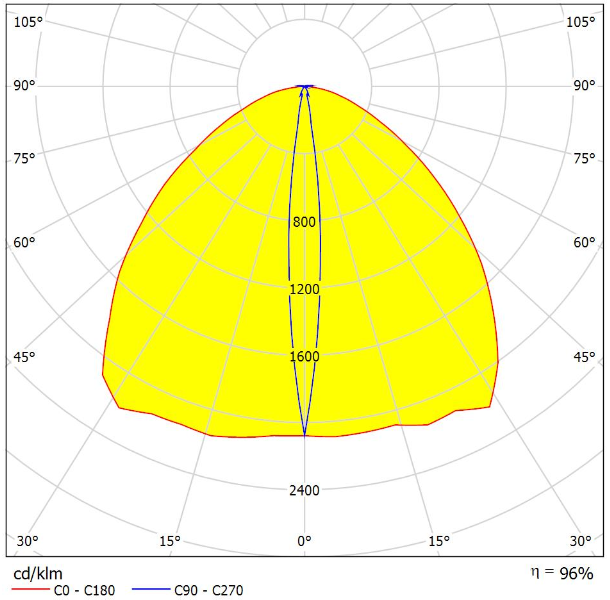

Distribution
Specifications
| Model: | ALS26D3535LED10X100G |
| Diameter: | 26.1mm |
| Height: | 12.8mm |
| Angle: | 10x100° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 3030/ 5050LED |
| Lighting applications | Window linear lighting, Wall washer lighting, traffic signal light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

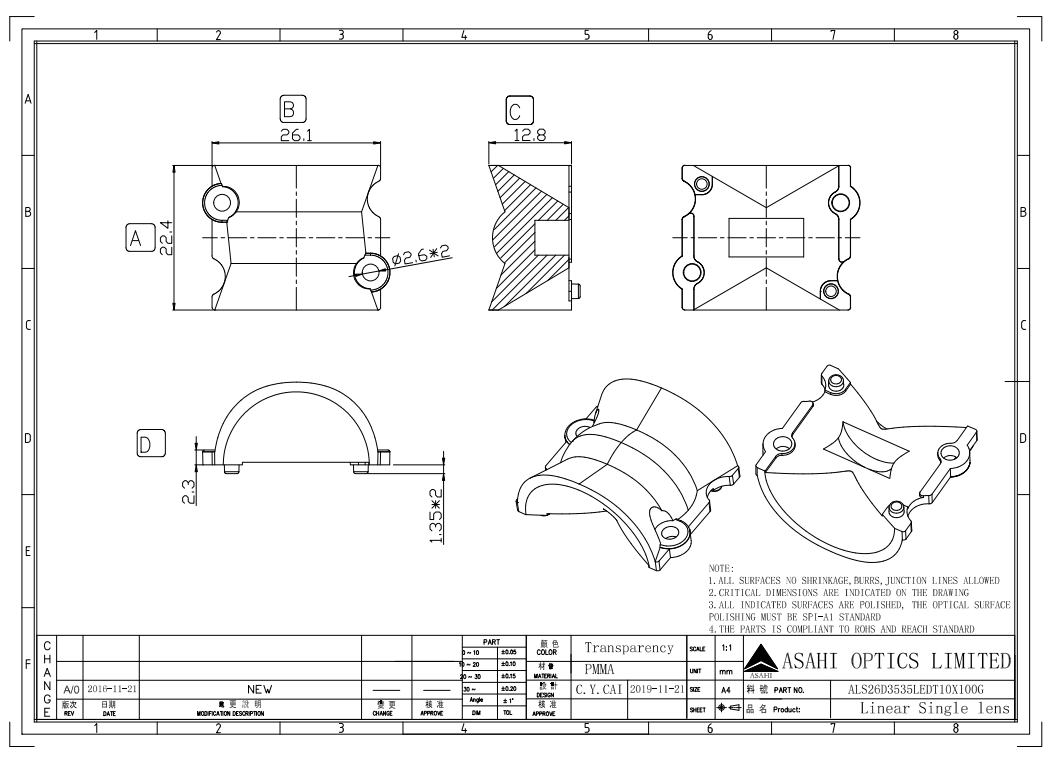

ALS26D3535LED10X100G lens 3D drawing. stp
ALS26D3535LED10X100G drawing.pdf
ALS26D3535LED10X100G drawing.dwg
