Model: UFO293D90G-200W-K70
Diameter: 293mm
Height: 8.8mm
Angle: 90°
Material: PC-1250Z
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: High Bay Lighting, Area Lighting
1.The UFO lens is designed to have a 293mm wide diameter, allowing for a wider range of lighting. Suitable for industrial, commercial, and warehouse high-space lighting needs.
2.The large diameter of 293mm, this UFO lens can provide a wider range of lighting. It can cover larger areas, suitable for places that require extensive lighting, such as large indoor gymnasiums, open -air squares, parking lots, etc.

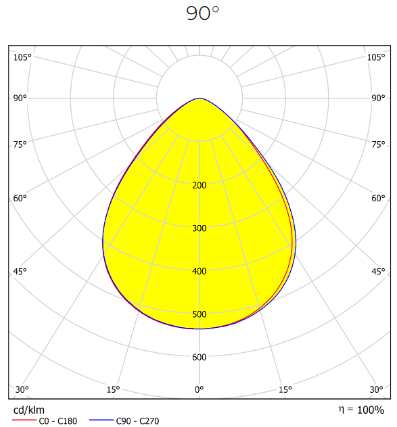

Distribution
Specifications
| Model: | UFO293D90G-200W-K70 |
| Diameter: | 293mm |
| Height: | 8.8mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High Bay Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO293D90G-200W-K70 3D Drawing.Stp

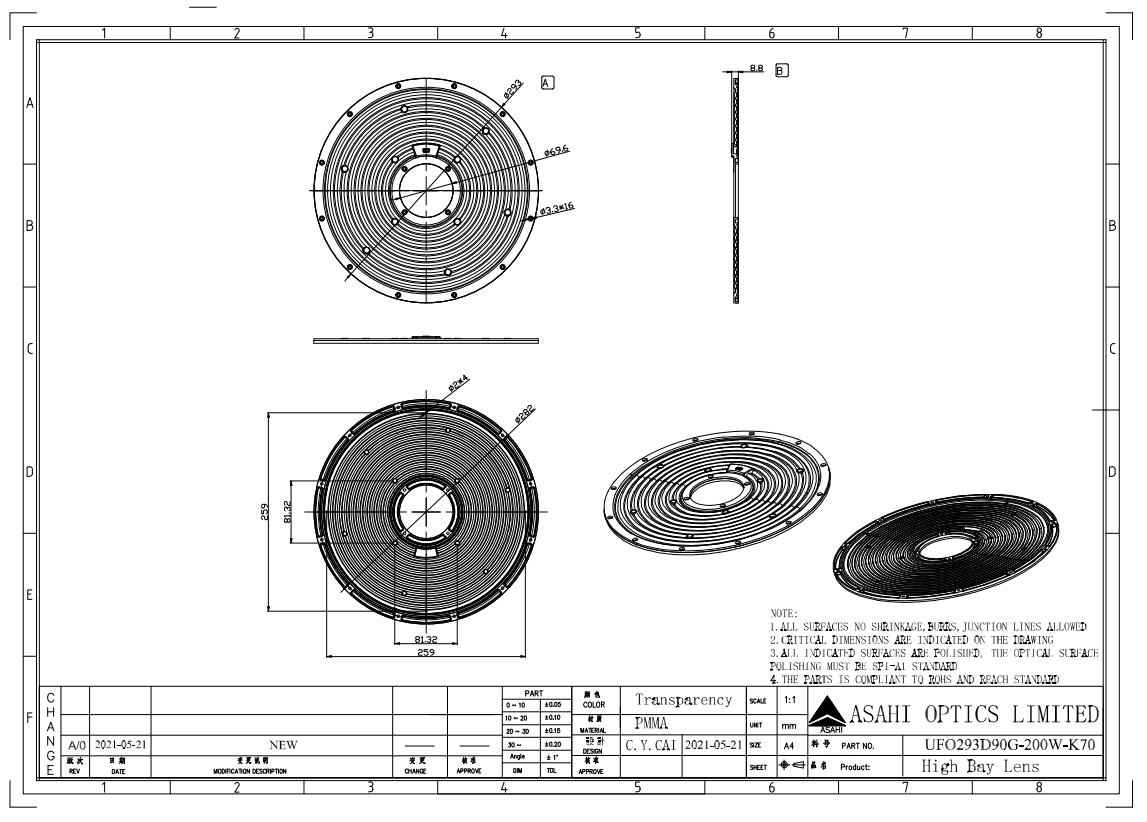

ASAHI OPTICS UFO293D90G-200W-K70 Drawing.dwg
