Model: ALD50D16LED30G
Size: 50.0mm+50.00mm
Height: 7.5mm
Angle: 30°
Material: PC-1250Z
Transmittance: >90%
LED Type: "3030"LED
Lighting Applications: Architecture lighting,High Bay lighting
1. 50mm diameter 4x4 arrays narrow beam 30 degree lens compatible with 3030LED for flood light.
2. Beam angle 30 degree, Precise beam control: The illumination Angle of 30 degrees means that the lens can provide a more concentrated and focused beam.
3. This design allows the light to be accurately projected to the target area, avoiding the scattering and waste of light, and providing more accurate lighting effects
Specification
| Model: | ALD50D16LED30G |
| Diameter: | 50.0mm+50.00mm |
| Height: | 7.5mm |
| Angle: | 30° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | "3030"LED |
| Lighting applications | High Bay lighting |

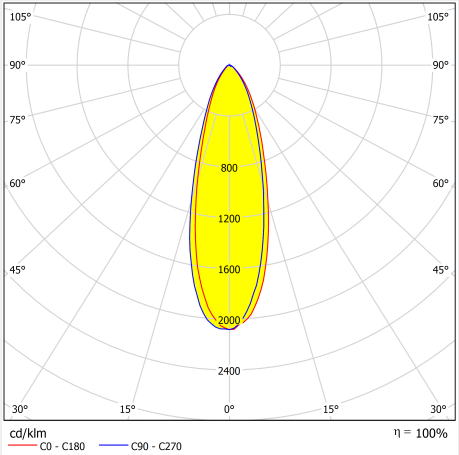

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
