10mm sigle lens 180° for abstruction lights

Model: AE10D6H180G

Diameter: 10.0mm

Height: 11.63mm

Angle: 180°

Material: PMMA

Transmittance: >93%

LED Type: Cree XP-G

Lighting Applications: wall washer light

1. This 180° single lens is widely used on obstruction lights with excellent warning functions.

2. The biggest feature of this lens is that it can direct the LED lights from the bottom direction to the all sides, which can fully be seen from all directions from far distance.

A single lens with a 10mm diameter and a side emitter beam angle of 180° is designed for applications where the light needs to be emitted primarily from the side of the lens, providing a wide and uniform distribution of light.

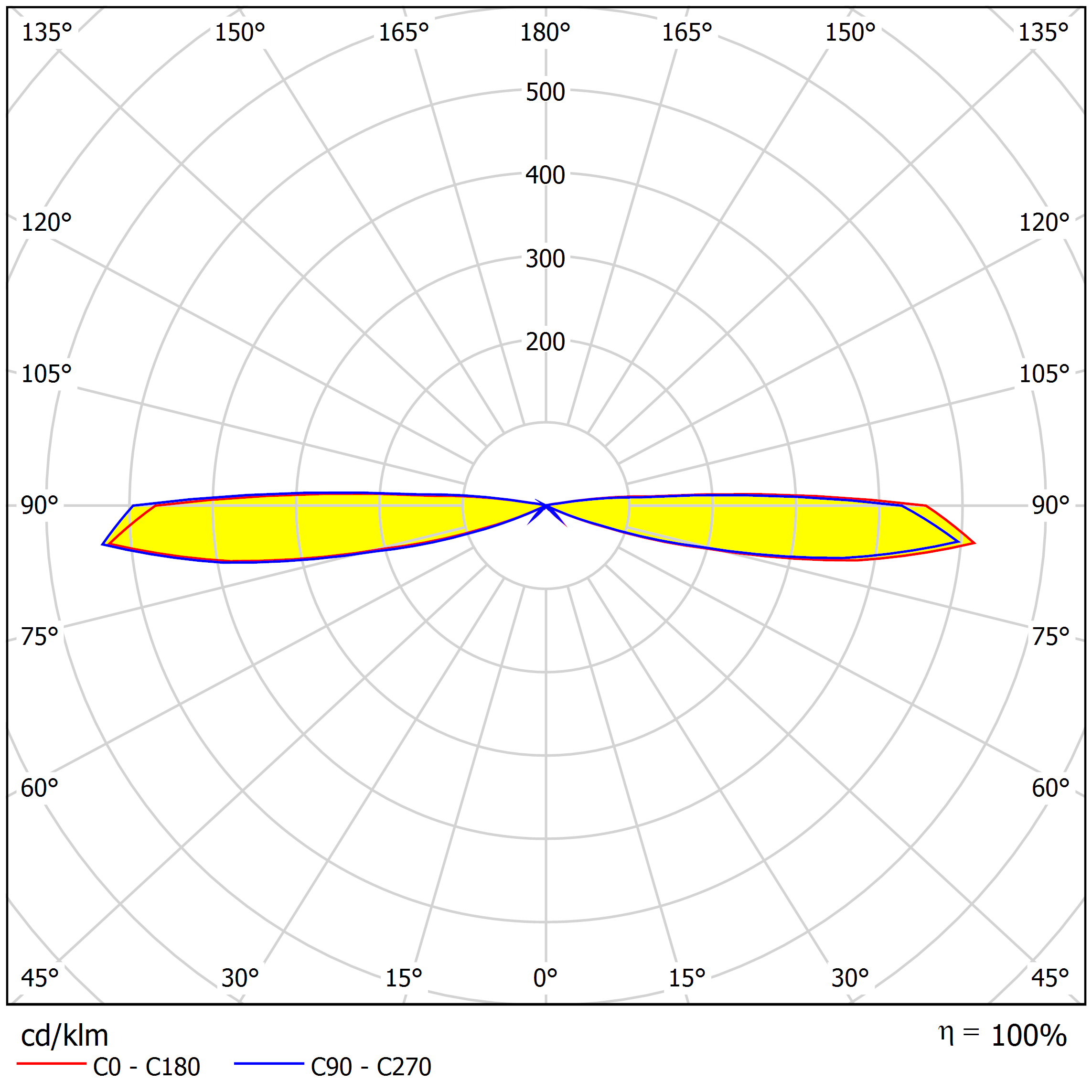

The lens is designed to emit light over a wide angle of 180°. This means that light is dispersed in a broad pattern, providing a wide and uniform distribution of illumination.

The side emitter lens is specifically designed to emit light primarily from the side or periphery of the lens. This allows for a unique lighting configuration where the light is directed sideways rather than in a forward or downward direction.

The 180° beam angle ensures a wide coverage area, making it suitable for applications where broad and uniform lighting is required, such as signage illumination, decorative lighting, or ambient lighting in enclosed spaces.

The side emitter lens offers design flexibility as it allows for creative lighting setups where the light can be directed along walls, surfaces, or specific architectural features.

Specifications

Model:	AE10D6H180G
Diameter:	10.0mm
Height:	11.63mm
Angle:	180°
Material：	PMMA
Transmittance：	＞93%
LED Applications	Cree XP-G
Lighting applications	wall washer light
