Model: ASL280D40H7LED80G
Diameter: 280.00mm
Height: 20.55mm
Angle: 80°
Material: PMMA
Transmittance: >93%
LED Type: 3030''5630''5050
Lighting Applications: linear lighting

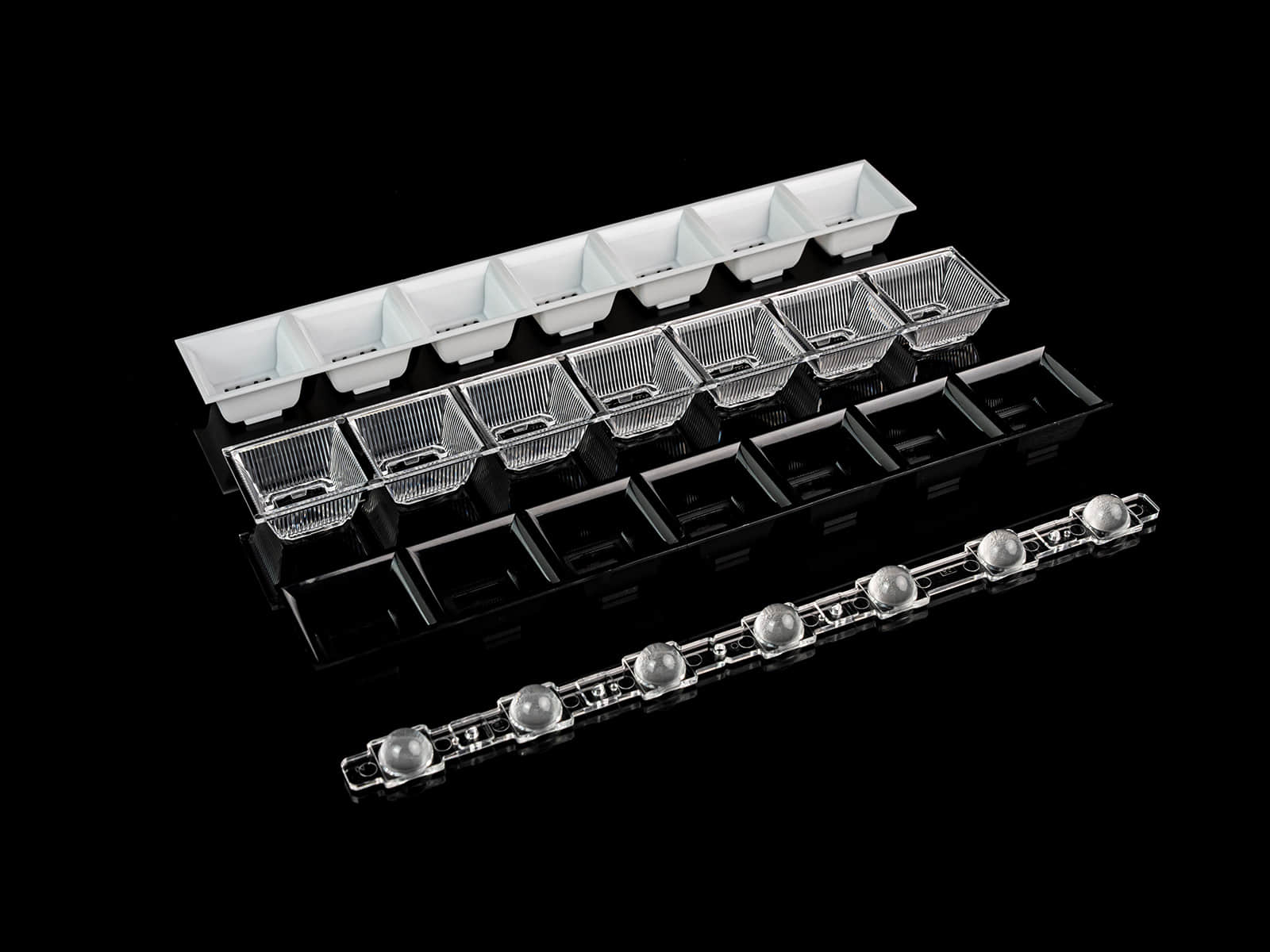

1. The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
6. High-Efficiency Optics:
This 1x3 lenses incorporate high-efficiency optics, maximizing light utilization and distribution control. These lenses efficiently capture and direct the light emitted from LEDs, ensuring optimal usage and minimizing light loss. The result is improved energy efficiency and enhanced overall lighting performance.
Specifications
| Model: | ASL280D40H7LED80G |
| Diameter: | 280mm |
| Height: | 40mm |
| Angle: | 80° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 3030''5630''5050 |
| Lighting applications | Retail Lighting, Office Lighting |

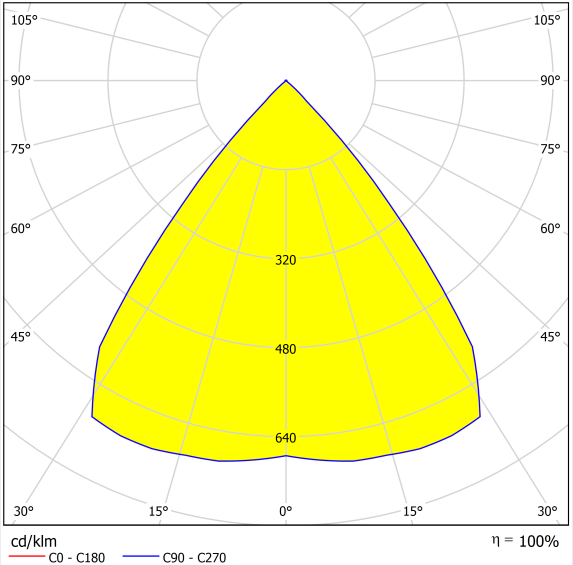

Light Distribution Curve

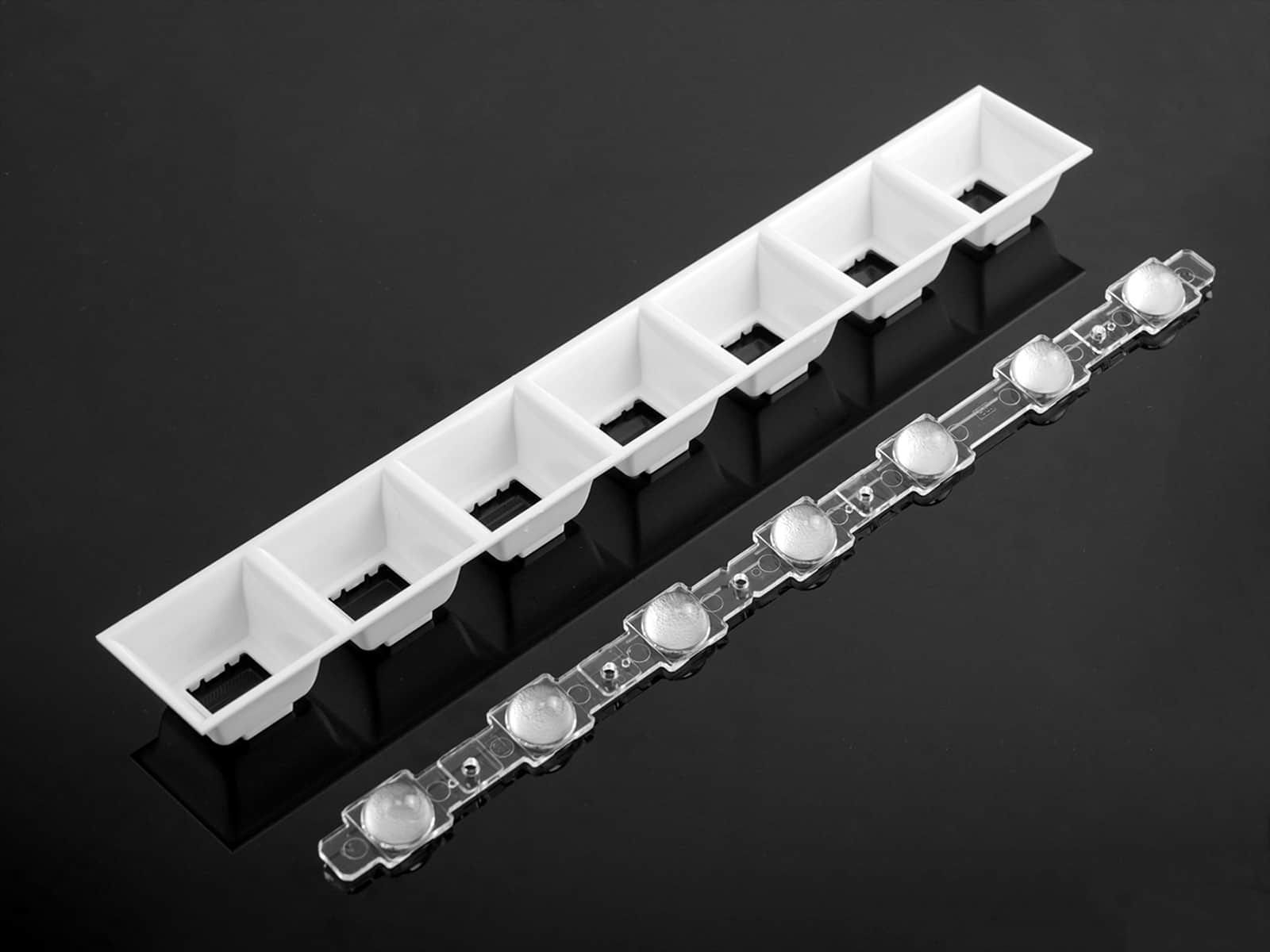

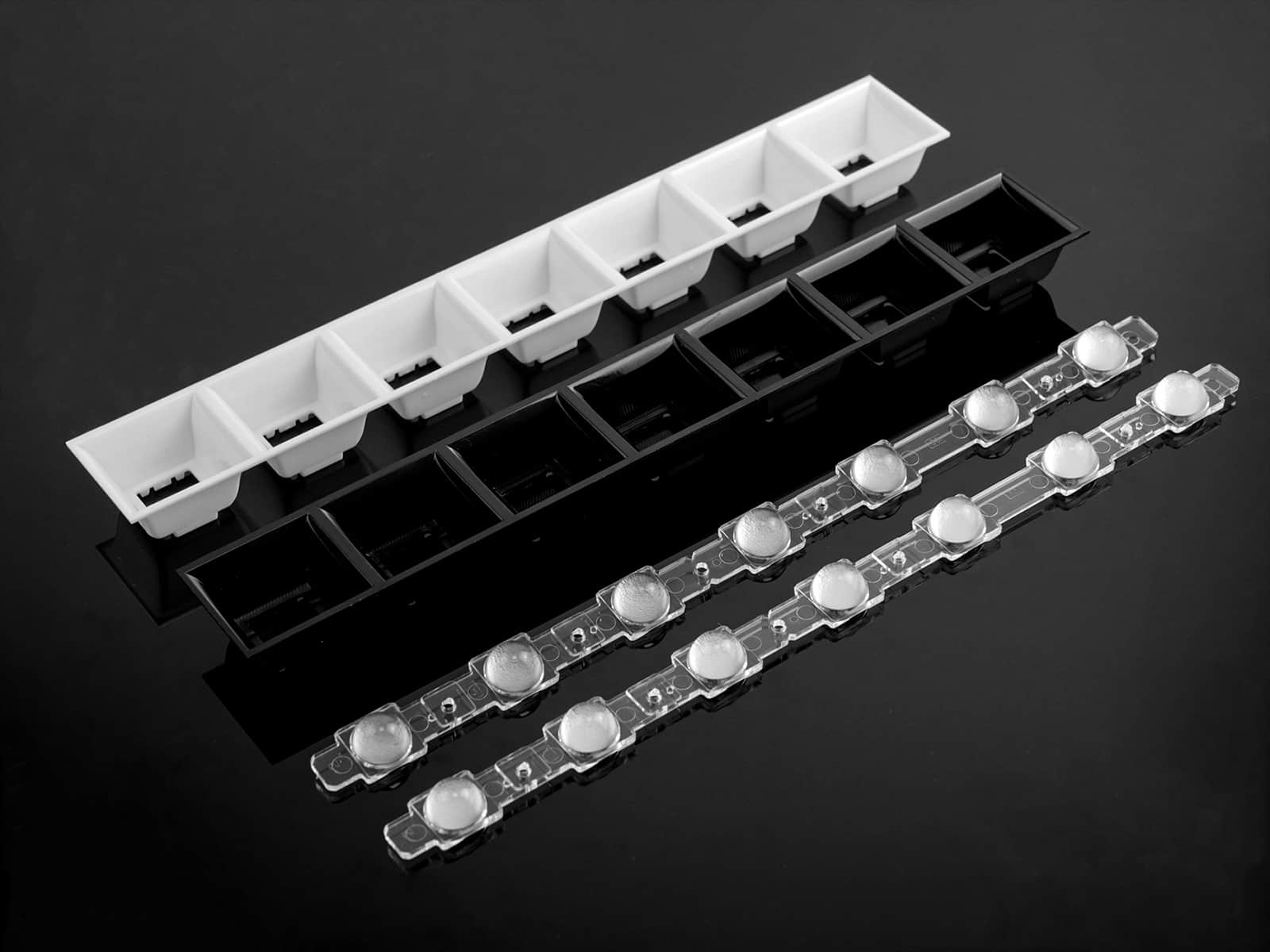

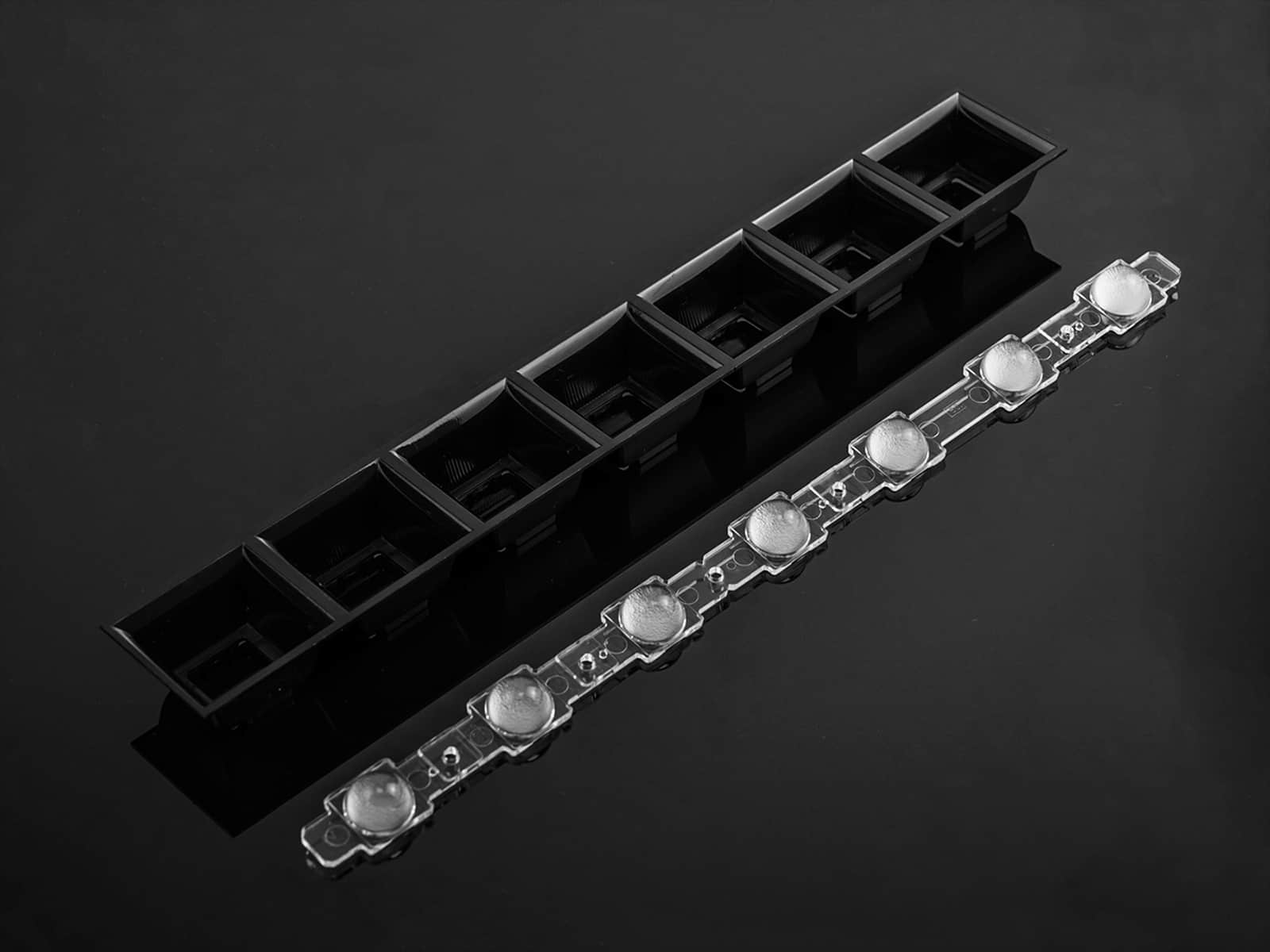

Black/White holder available
ASAHI OPTICS ASL280D40H7LED lens 3D Drawing.stp
ASL280D40H7LED80G Cover drawing
ASL280D40H7LED80G Lens drawing
ASL280D40H7LED80G PCB drawing.dwg
ASL280D40H7LED80G PCB drawing.pdf
ASL280D40H7LED80G-4pcs 2835.ies
