Model: ASL160D40H4LED3070G
Diameter: 160mm
Height: 10.25mm
Angle: 30x70°
Material: PMMA
Transmittance: 93%
LED Type: 2835/3030/5050LED

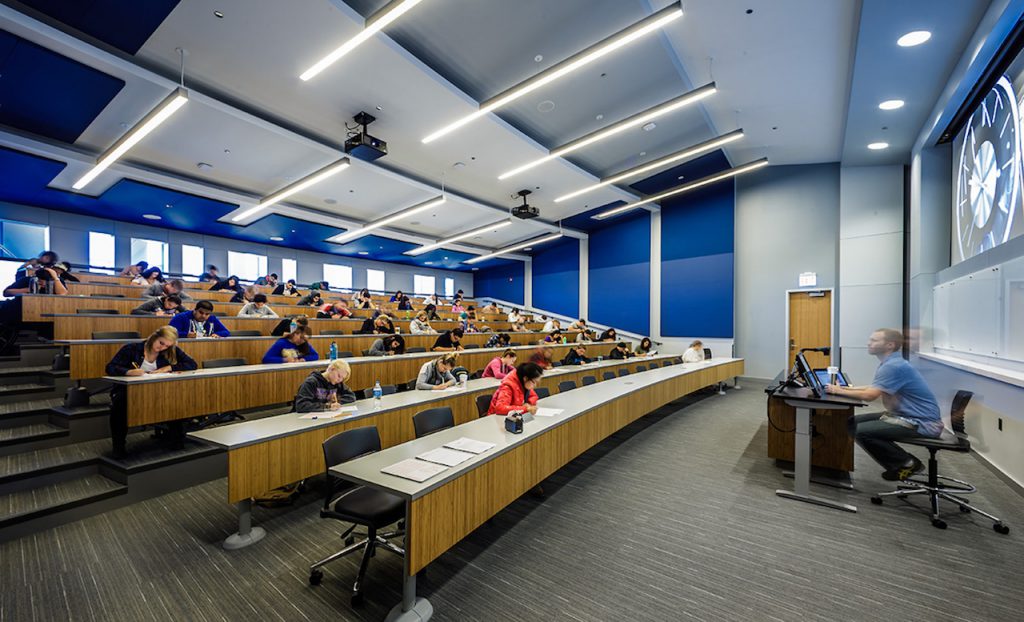

Lighting Applications: Linear Lighting, Office Lighting

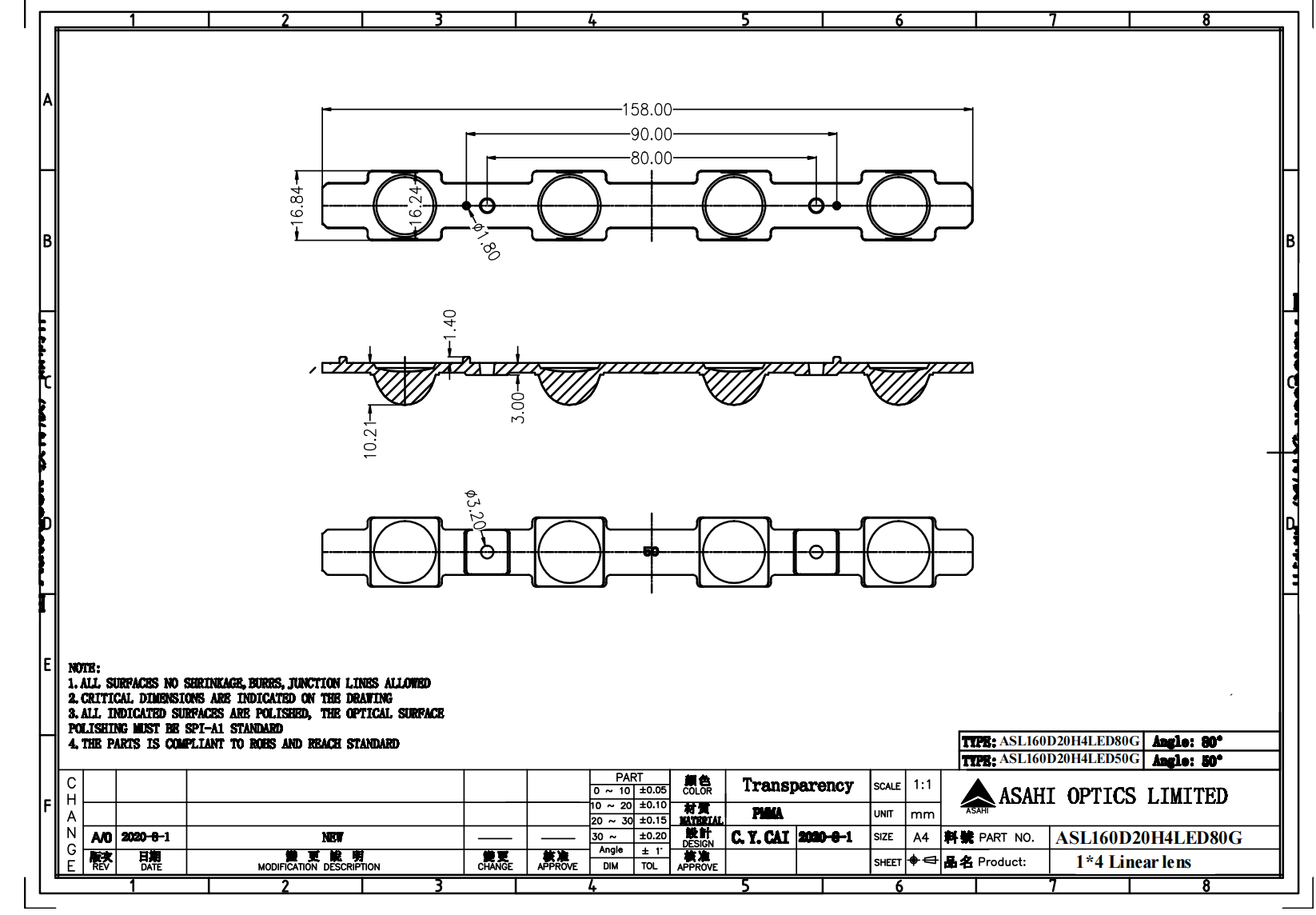

1. The 1X4 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x4 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X4 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
Distribution
Specifications
| Model: | ASL160D40H4LED3070G |
| Diameter: | 160mm |
| Height: | 10.25mm |
| Angle: | 30x70° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030/5050LED |
| Lighting applications | Linear Lighting, Office Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
