LED Lens Supermarket Lighting With Comfortable Lights

Model: ASL280D65HXLED3090G

Diameter: 280.0mm

Height: 7.5mm

Angle: 30°x90°

Material: PMMA

Transmittance: >93%

LED Type: 3030''5630''5050'' 2835''

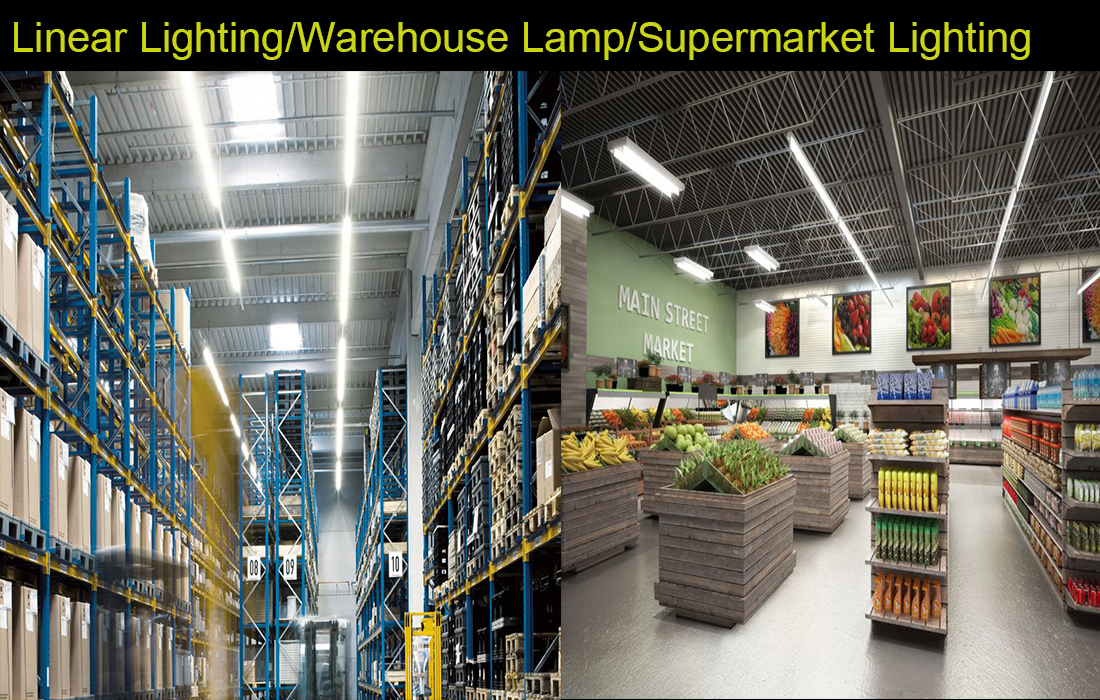

Lighting Applications: Linear Lighting

1. The lens is specifically designed to be compatible with a linear lighting fixture. It is engineered to match the dimensions and mounting requirements of the fixture for proper installation.

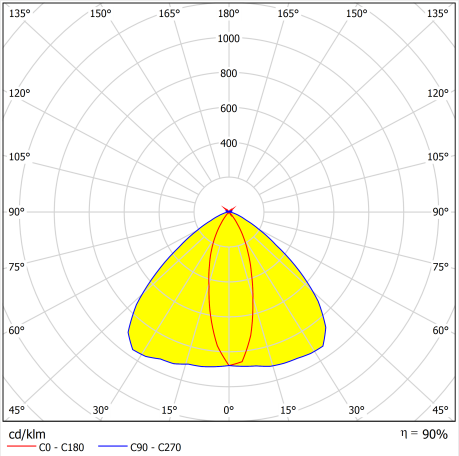

2. The lens provides an asymmetric beam angle of 30 degrees in one direction and 90 degrees in the other direction. This means that the light emitted from the fixture is dispersed in a rectangular-shaped pattern, with a narrower beam angle in one direction (30 degrees) and a wider beam angle in the other direction (90 degrees). The asymmetric beam angle allows for focused illumination in one direction and broader coverage in the other.

3. The lens aids in distributing the light evenly across a specific area or surface within the 30x90-degree beam angle. It helps minimize hotspots or dark spots, providing a uniform and consistent illumination from the linear lighting fixture.

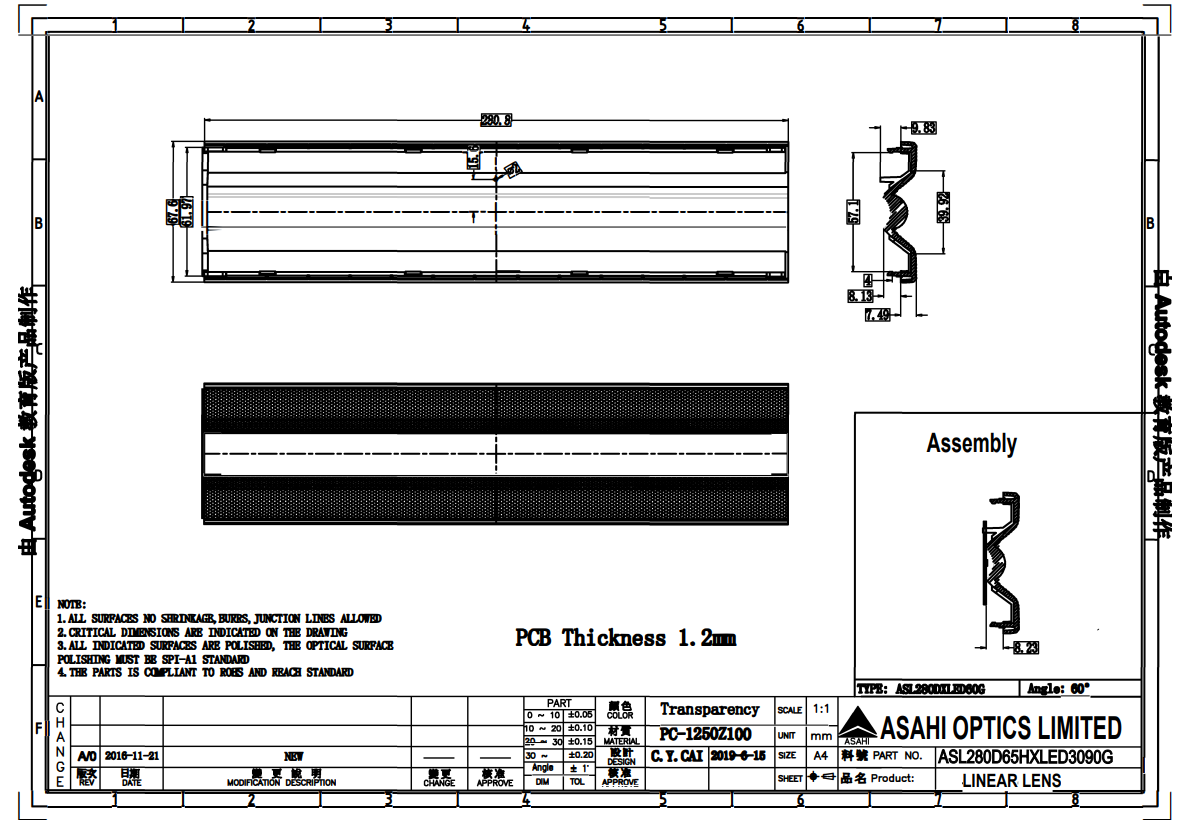

Specifications

Model:	ASL280D65HXLED3090G
Diameter:	280mm
Height:	65mm
Angle:	30x90°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030LED
Lighting applications	Linear Lighting, Office Lighting
