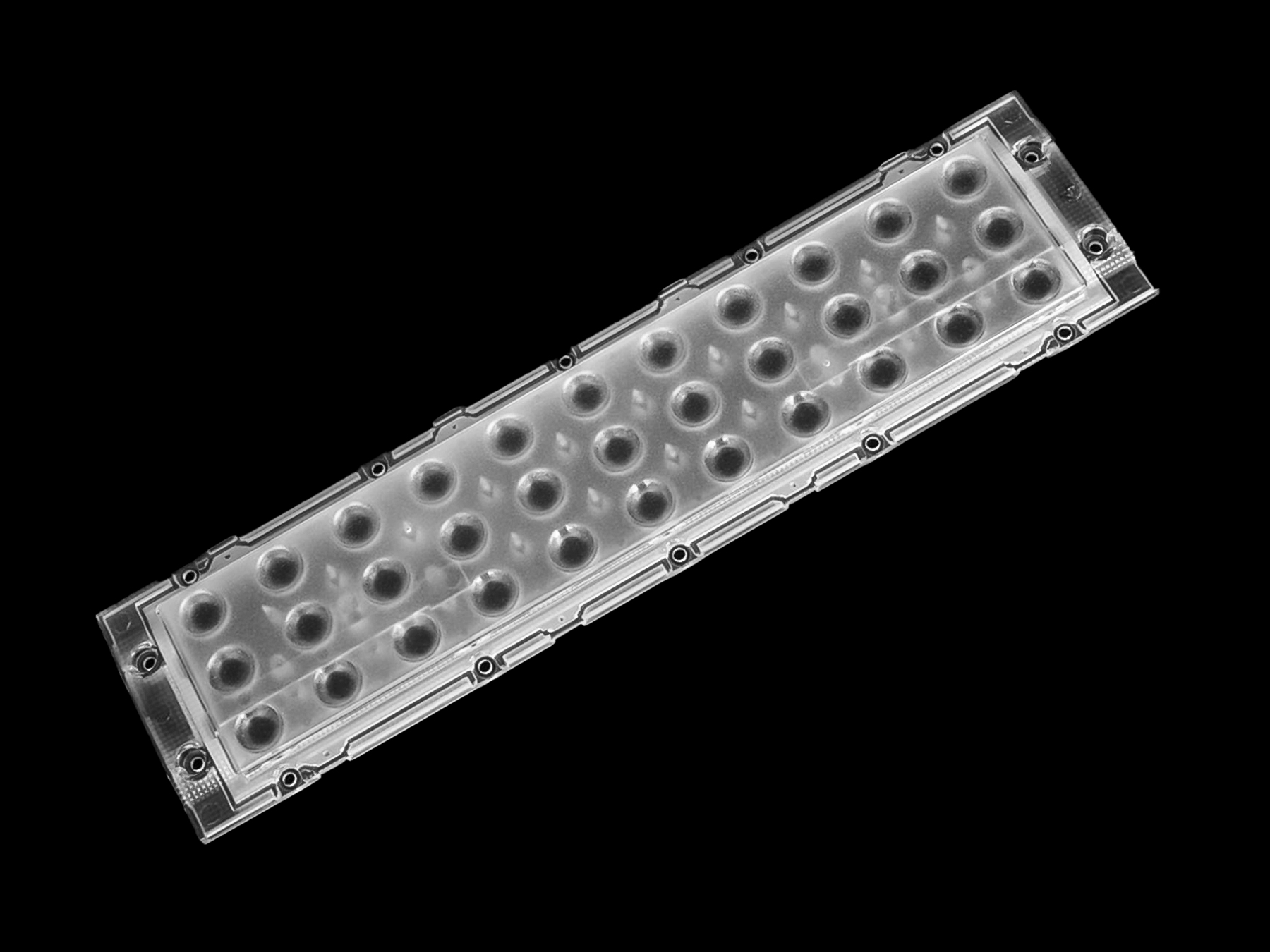

3x11 lens array 90° with IP66 protection and for IK08 test

Model: ALHB321D66LED90GIP

Diameter: 321.0mm

Height: 79.0mm

Angle: 90°

Material: PC-1250Z

Transmittance: >90%

LED Type: 3030''5630''5050

Lighting Applications: High Bay lighting, Linear Lighting

1. The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.

2. With IK08 test zhaga standard, the lens array is highly durable and resistant to damage from vandalism or accidental impacts.

3. With IP66 protection rating,the lens array is fully protected against dust ingress and powerful water jets, making it suitable for outdoor use in harsh environmental conditions.

The 11x3 lens array is designed for Mid Power LEDs which is compatible with “3030”and“5630”LEDs.

Especially for each optical surface, it is not only for the single LED but also for double LEDs to get many high lumens.

Instructions as below

Specifications

Model:	ALHB321D66LED90GIP
Diameter:	321.0mm
Height:	79.0mm
Angle:	90°
Material：	PC-1250Z
Transmittance：	>88%
LED Applications	3030''5630''5050 LED
Lighting applications	High Bay lighting, Linear Lighting

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
