Model: ASL120D40H3LED50G
Diameter: 120mm
Height: 10.25mm
Angle: 50°
Material: PMMA Lens+PC Cover
Transmittance: >90%
LED Type: 2835/3030/5050LED
Lighting Applications: Linear Lighting

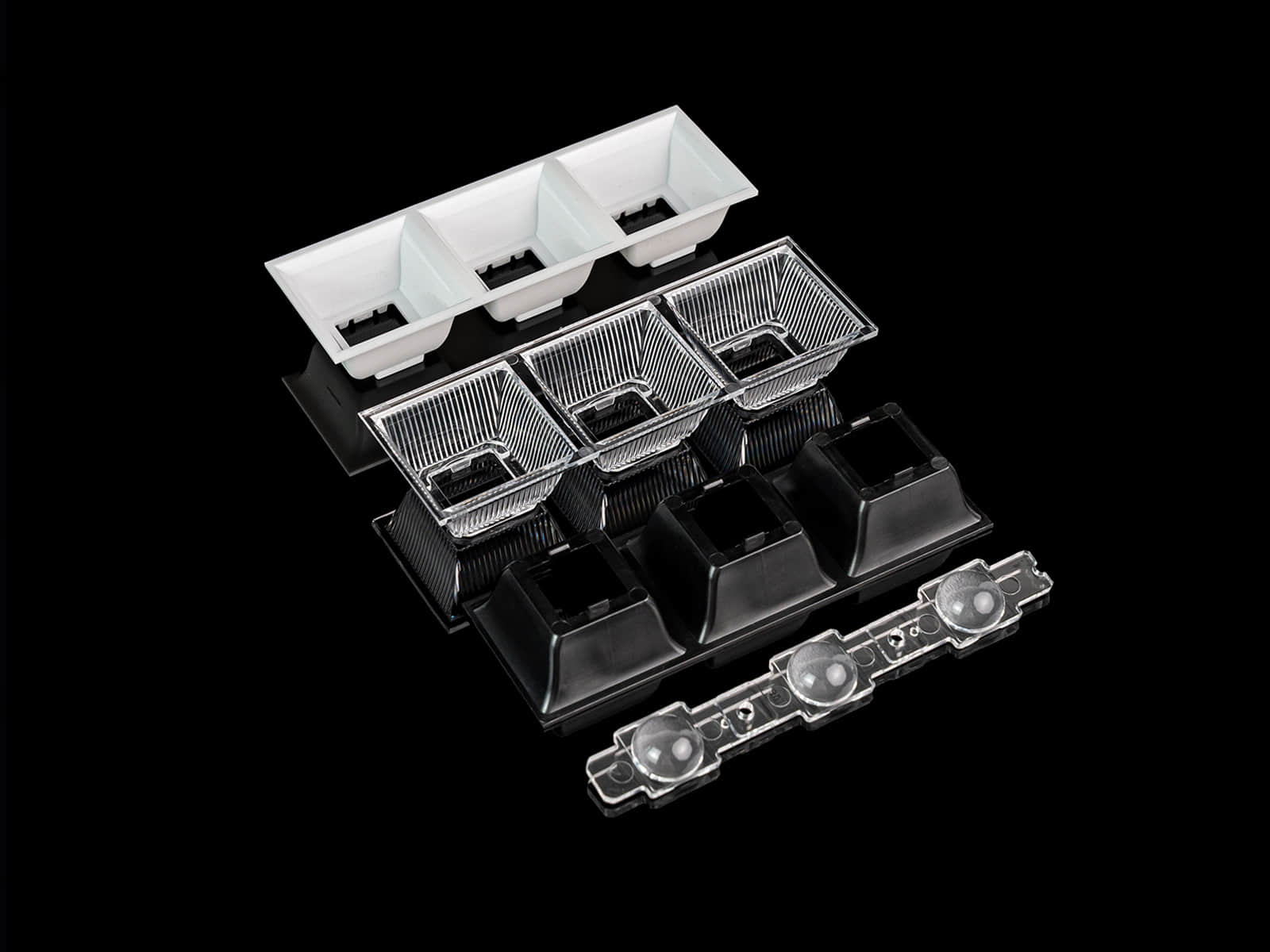

1. The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
2. For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
3. The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
4. The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
5. The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
6. High-Efficiency Optics:
This 1x3 lenses incorporate high-efficiency optics, maximizing light utilization and distribution control. These lenses efficiently capture and direct the light emitted from LEDs, ensuring optimal usage and minimizing light loss. The result is improved energy efficiency and enhanced overall lighting performance.
7. Precise Beam Control:
One of the standout features of Asahi linear lenses is their precise beam control capability. The lenses enable designers to achieve accurate and desired beam angles, ensuring the light is directed exactly where it is needed. This feature allows for effective spotlighting, accent lighting, and illumination of specific areas with minimal light spillage.

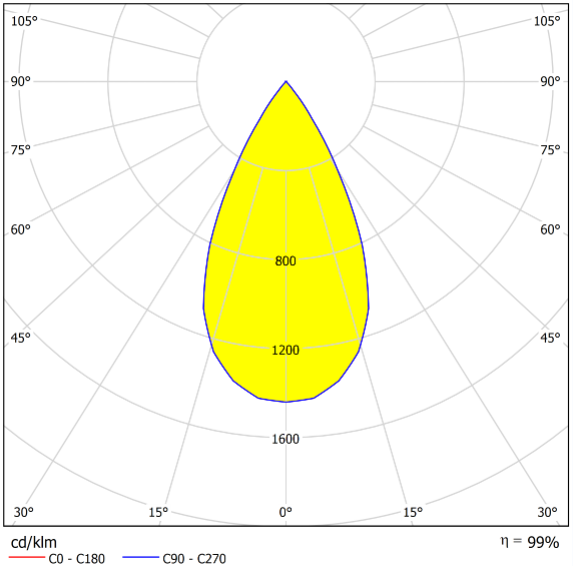

Distribution

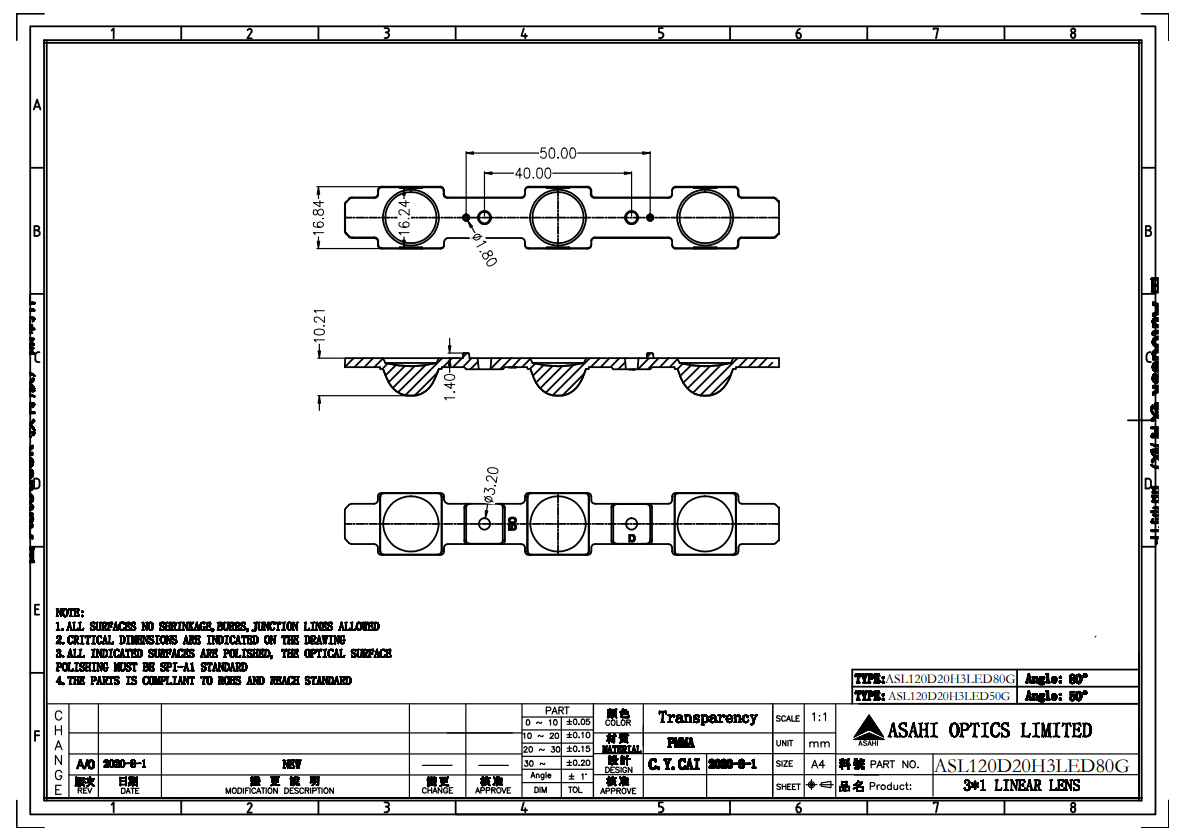

Specifications
| Model: | ASL120D40H3LED50G |
| Diameter: | 120mm |
| Height: | 10.25mm |
| Angle: | 50° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030/5050LED |
| Lighting applications | Retail Lighting, Office Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.
The optical design is also compatible with different LED size from 2835, 3030 LEDs up to 5630, 5050 LEDs.
The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
