42mm Lenses For COB LEDs With 10mm Height

42mm Lenses For COB LEDs With 10mm Height

Model: ADCOB42D10H

Diameter: 42mm

Height: 10mm

Angle: 15°, 24°, 36°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, COB lens is an optical component specifically designed to control and shape the light output of a COB LED.

2, LCOB lenses are used to precisely control the light emitted by the COB LED. They help to focus and direct the light in a specific direction, allowing for efficient light distribution and minimizing light loss.

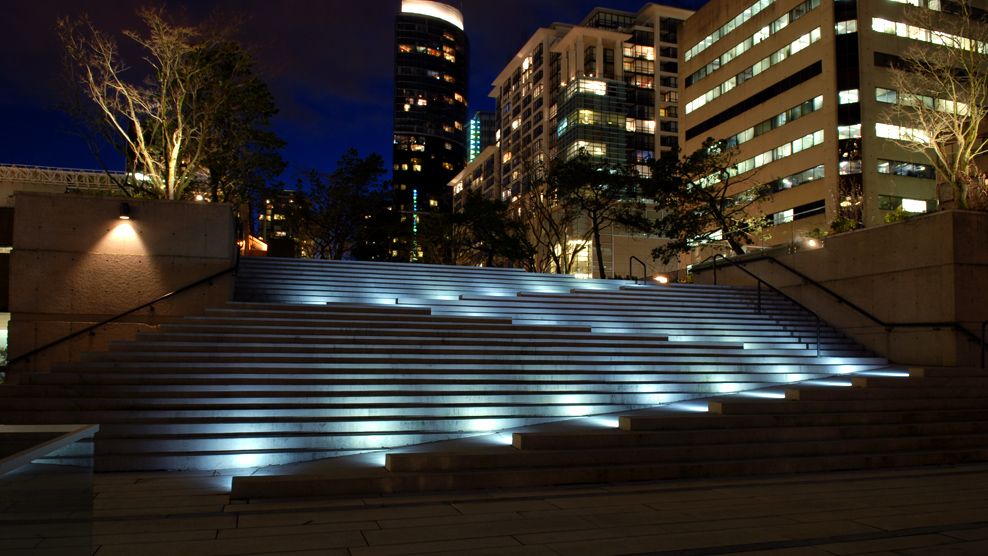

3, COB lenses are employed in outdoor lighting fixtures such as landscape lighting, pathway lighting, and façade lighting. The lenses help control the light distribution and beam angle, ensuring accurate lighting placement, highlighting outdoor features, and creating desired lighting effects.

Specifications

Model:	ADCOB42D10H
Diameter:	42mm
Height:	10mm
Angle:	10°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting,Spot Light,Down Light

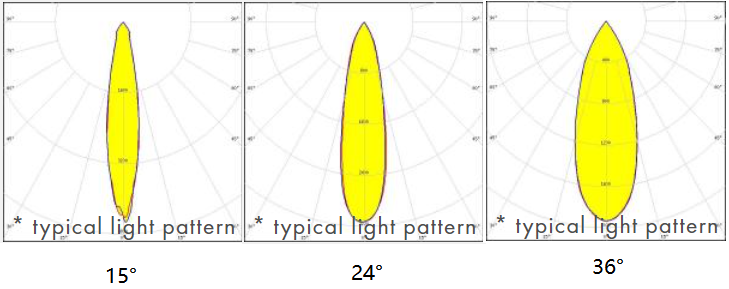

~15°spot beam ~24° medium beam ~36°wide beam

15g,24g,36g

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean the lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has a concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install the lens wearing gloves, skin oils may damage the lens's optical characteristics.
