2x3 lens T3M designed by 5050 LED for strret lighting

Model: AJST50D6LEDT3-3S

Diameter: 50x50mm

Height: 7.25mm

Angle: Type III

Material: PC

Transmittance: >88%

LED Type: 5050LED

Lighting Applications: Street lighting

1. The 2x3 lens T3M is specifically designed for 5050 LEDs, providing precise and uniform light distribution for road lighting applications.

2. This 2x3 lens maximizes the light output of 5050 LEDs, delivering high brightness and energy efficiency. Its design minimizes light loss and enhances the performance of LED systems, offering a cost-effective and eco-friendly solution for road lighting.

1. The 2x3 lens T3M is specifically designed for 5050 LEDs, providing precise and uniform light distribution for road lighting applications.

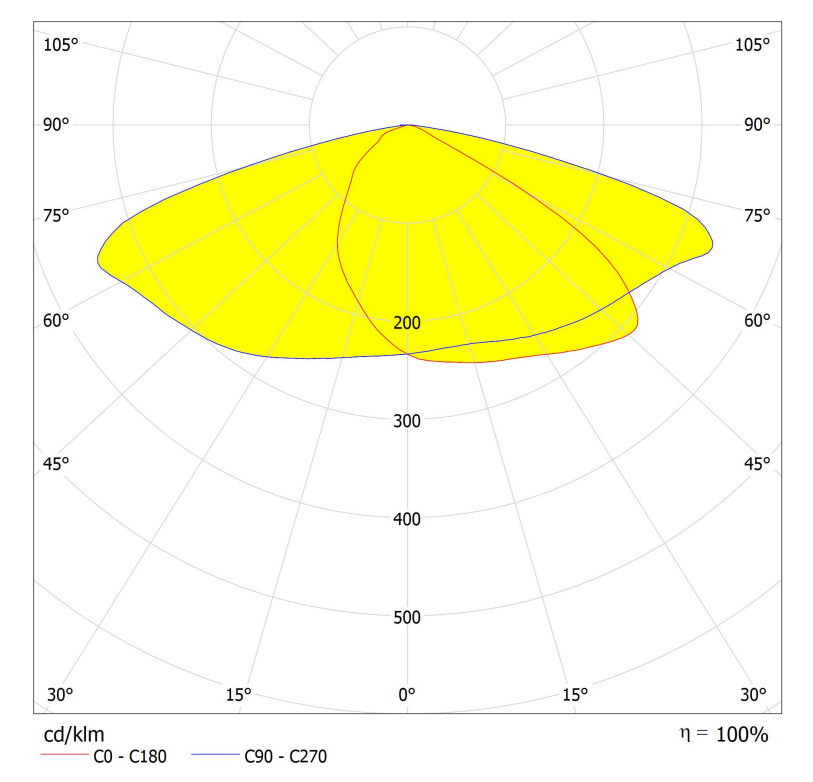

The Type III distribution curve is often used for outdoor applications, such as street lighting, parking lots, and pedestrian areas.

It provides good illumination for roadways and large open spaces, minimizing dark spots and ensuring adequate visibility for drivers and pedestrians.

Specifications

Model:	AJST50D6LEDT3-3S
Diameter:	50x50mm
Height:	7.25mm
Angle:	Type III
Material：	PC
Transmittance：	＞88%%
LED Type	5050LED
Lighting applications	Street Lighting
